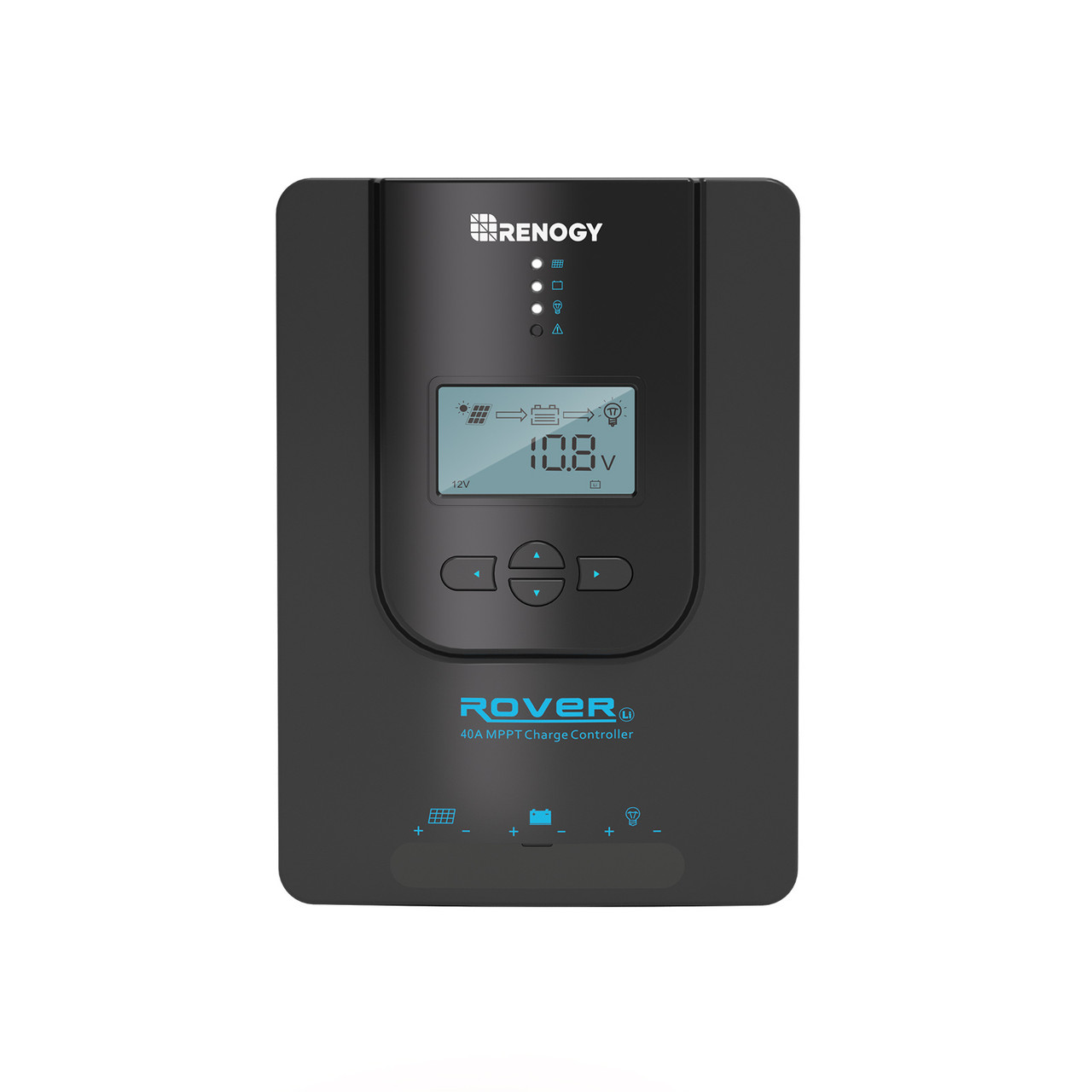

Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT)

  • Exceptional Efficiency: Achieves up to 99% tracking efficiency and 98% peak power conversion.

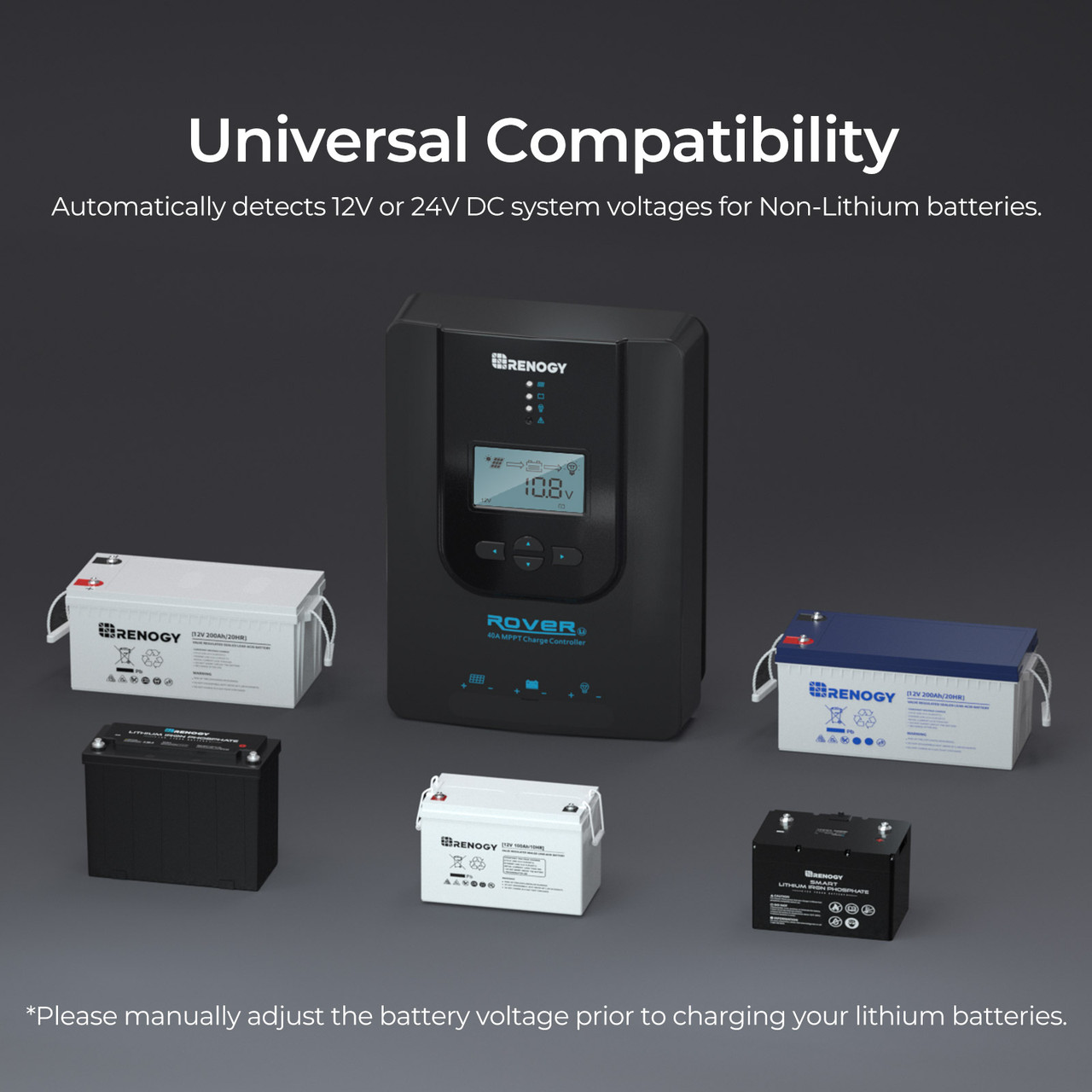

  • Smart Voltage Detection: Automatically recognizes 12V or 24V systems (non-lithium batteries).

  • Comprehensive System Protection: Built-in safety features guard against common electrical issues.

  • Advanced 4-Stage Charging: Ensures safe, efficient charging with Bulk, Boost, Float, and Equalization modes.

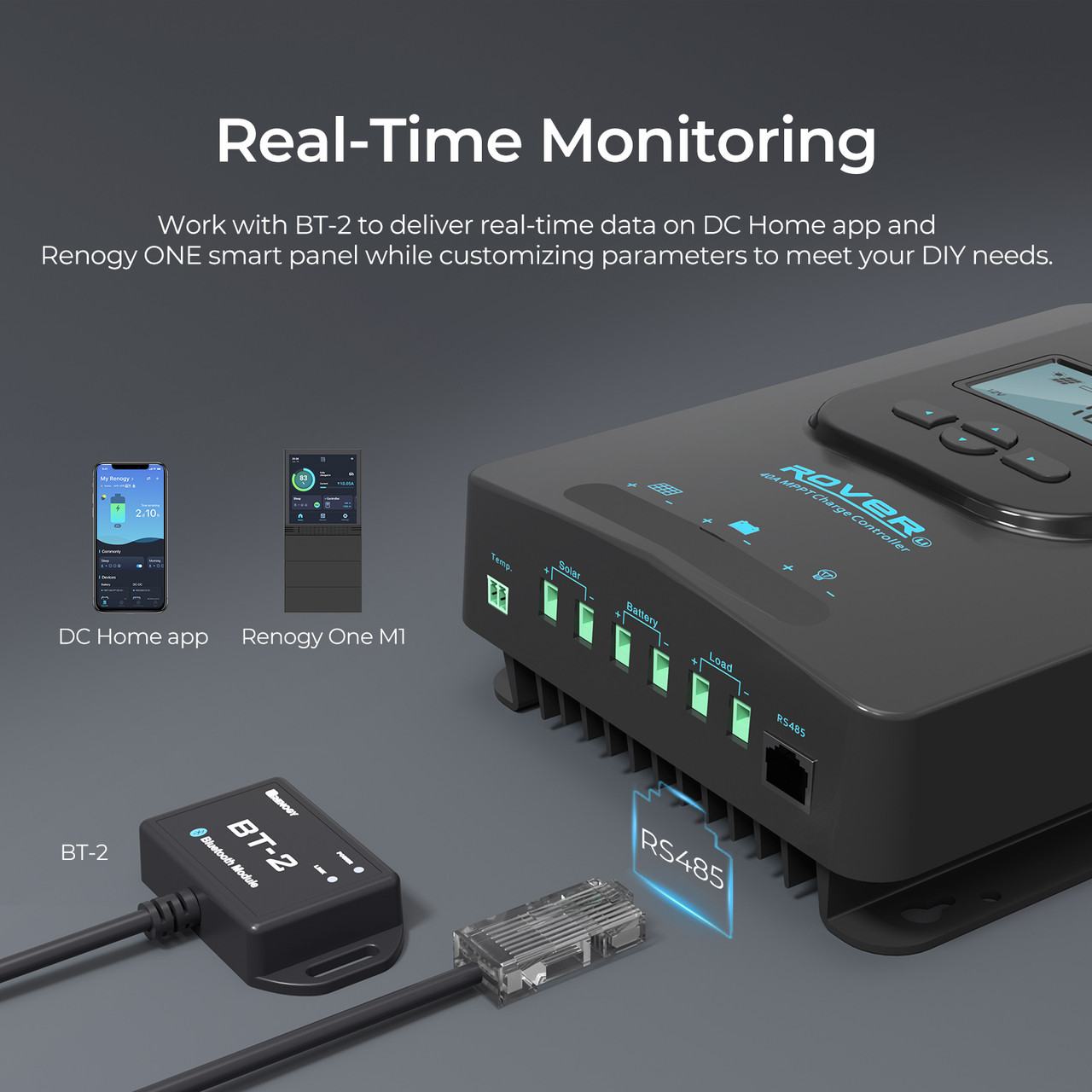

  • Flexible Control & Monitoring: Offers multiple load control options and supports remote system monitoring.

£127.99

Description

Rover Li 40 Amp MPPT Solar Charge Controller

An advanced charge controller that maximizes the performance of your solar system.

Impressive Output

Maximize Your System Efficiency

The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.

Enhanced Safety

Prioritize Safety with Battery Voltage Setting

Setting the battery voltage before connecting the Rover Charge Controller is essential for ensuring enhanced safety and optimal performance.

Simple and Intuitive Programming

Customize settings and monitor charging parameters with ease.

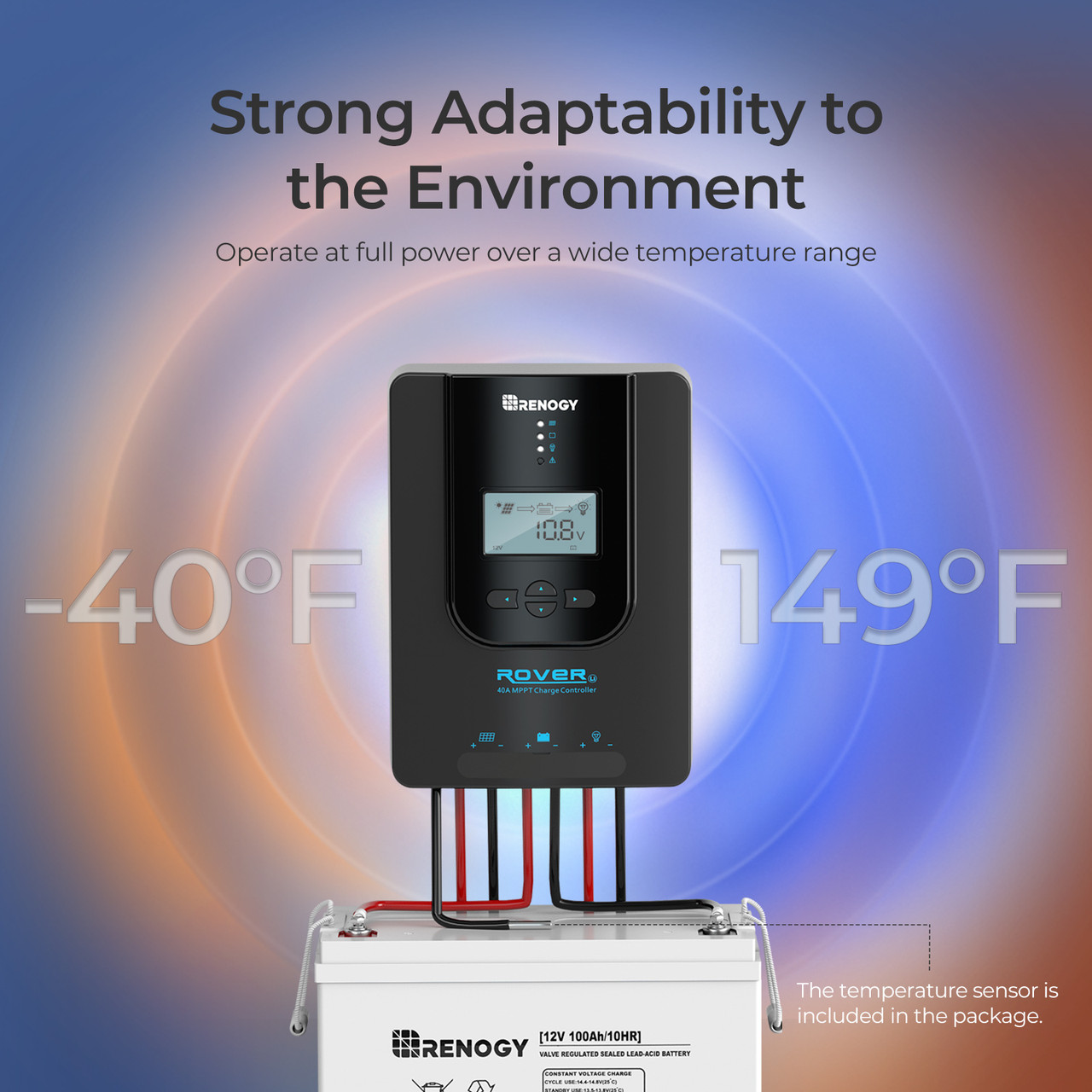

Powerful Heat Dissipation

Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.

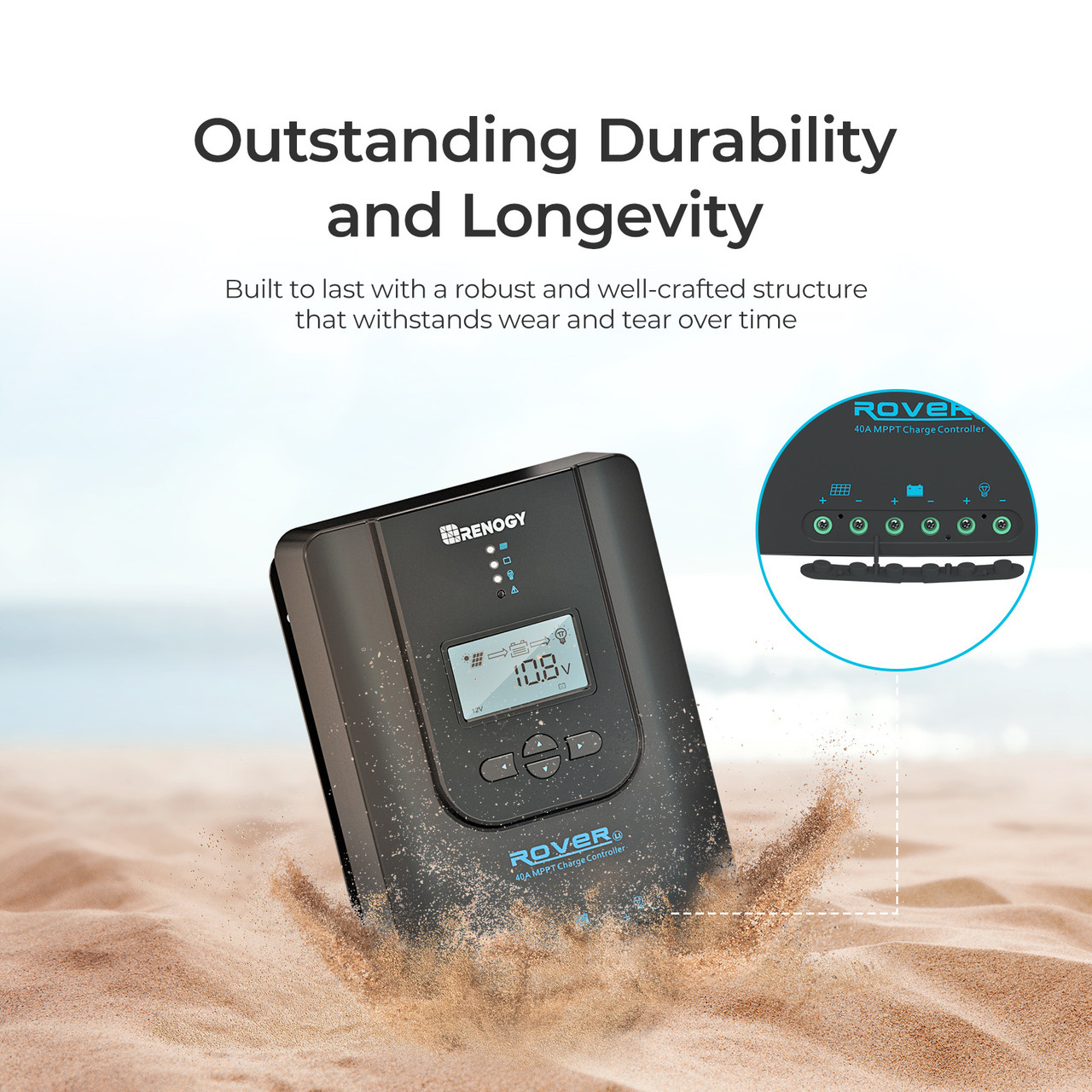

Exceptional Resilience and Long-lasting Performance

Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.

Wiring Steps

Do not insert the wires into the space below the socket/hatch. This will damage terminals because of loose connections.
Step 1.
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2.
Insert the wires into the socket/hatch. The terminals on the Rover 40A can accept up to 8AWG of wires.
Step 3.
Tighten the screws to elevate the socket/hatch to complete the wiring.

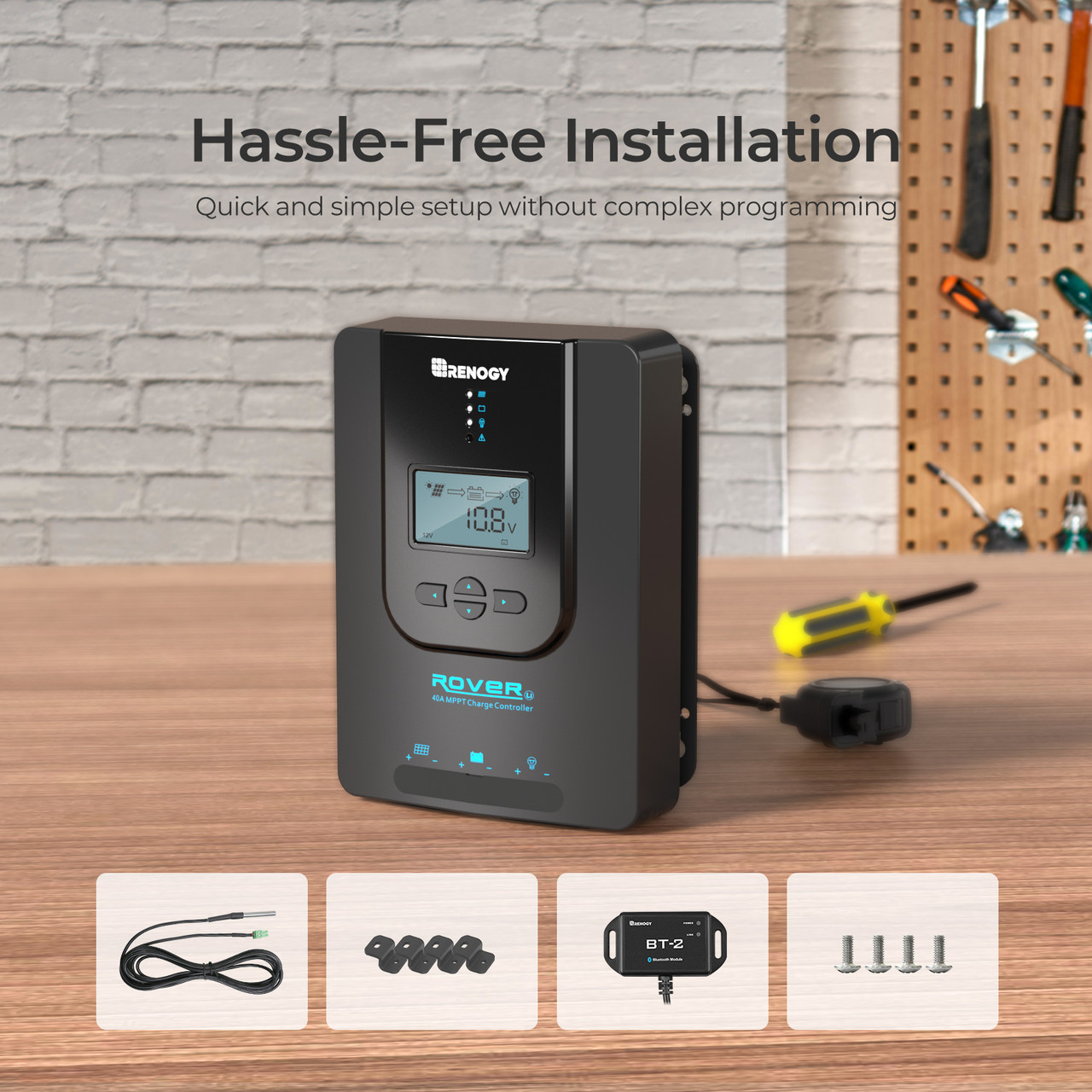

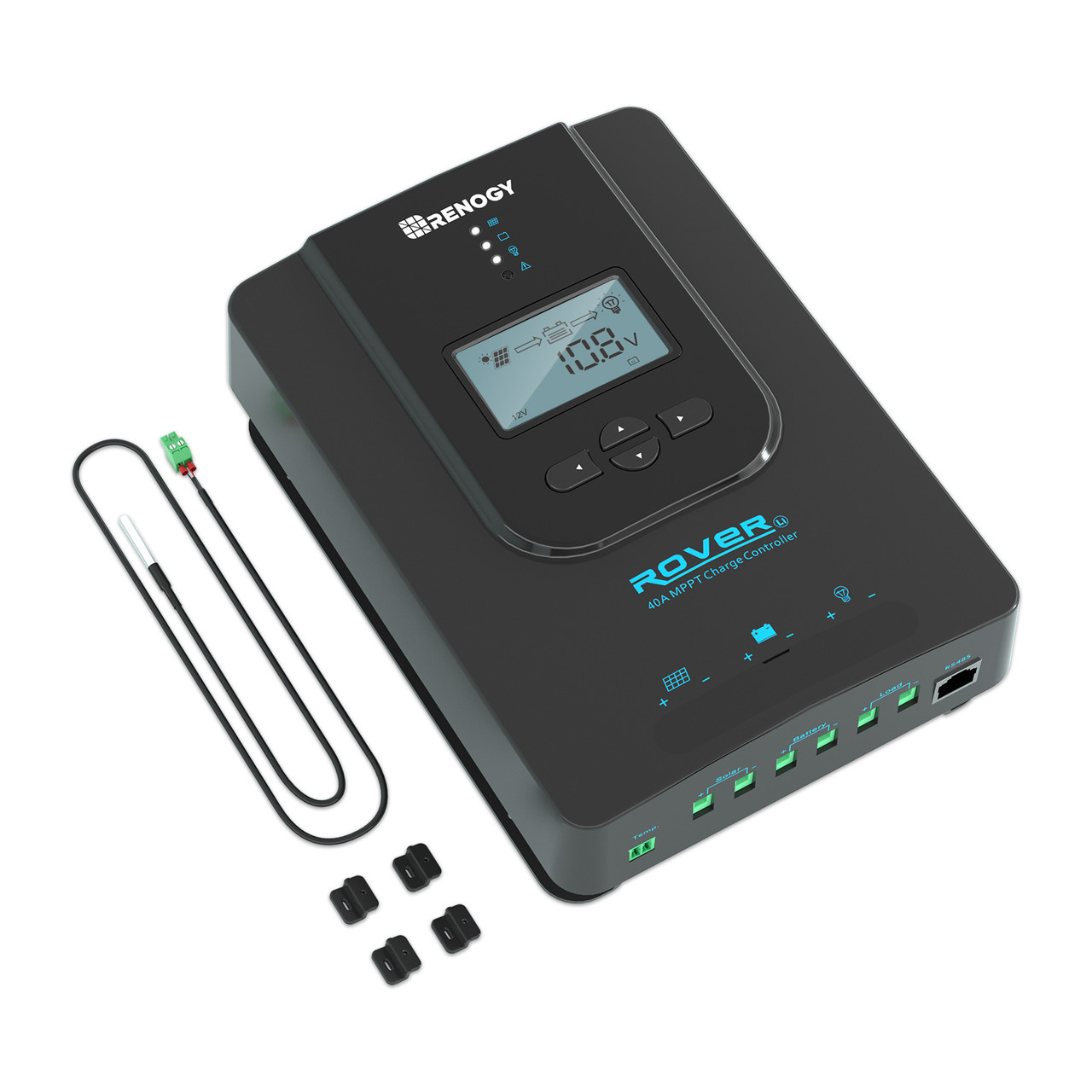

What’s in the box
The Renogy Difference
Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further!

Additional information

Specification

RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40)
Electrical Parameters
Nominal System Voltage: 12/24V Auto-Detect

Rated Charge Current: 40A

Solar Input Voltage Range (Voc): 15VDC~100VDC

Max. PV Input Power: 12V/520W, 24V/1040W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Battery Input Voltage Range: 10VDC~32VDC

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.

Environmental Data
Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

opc:

Mechanical Specifications
Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in

Weight: 2.0kg / 4.41 lb

Max. Terminals Size: 8 AWG 10mm2

opc:

Accessories
Temperature Sensor: 9.8ft cable length

opc:

Certifications
CE: Yes

FCC Class B Part 15 Compliant: YES

Warranty
Material and workmanship warranty: 3 Year

opc:

RENOGY BT-2 BLUETOOTH MODULE (RCM-BT2)
Compatibility
Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30-RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100

Compatible App: Renogy DC Home App available in both the App Store and Google Play

Operation Specifications
Communication Protocol: RS485 Modbus

Port Type: RJ12

Input Voltage : 5V

Protection Grade: IP54

Standby Power Consumption: 0.04W

Operating Power Consumption: 0.05W

Serial Baud Rate: Fixed Baud Rate 9600bps

opc:

Mechanical Specifications
Communication Range: ≤82ft (25m)

Cable Length: 16.4 ft (5.00m )

Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)

Weights: 4.58oz (130g )

Operation Temperature: -31℉ to 113℉/-35℃ to 45℃

Storage Temperature: -31℉ to 167℉/-35℃ to 75℃

Operating Altitude: ≤3000m

opc:

Certifications
FCC Class B Part 15 Compliant: YES
