Description

Robust Charging. Serious Value.

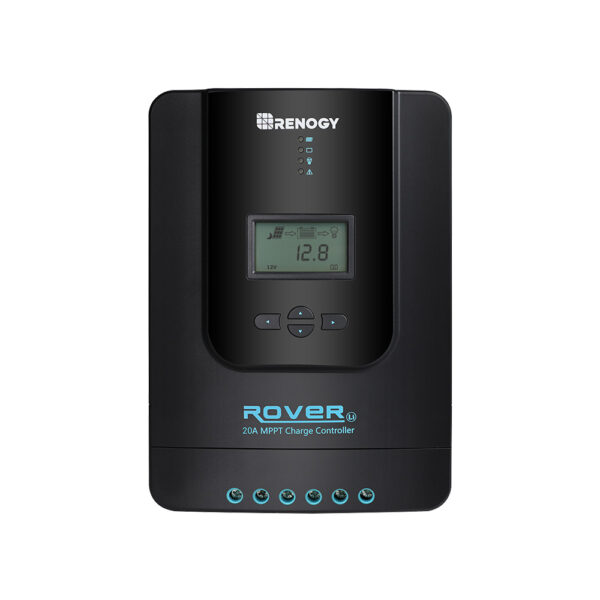

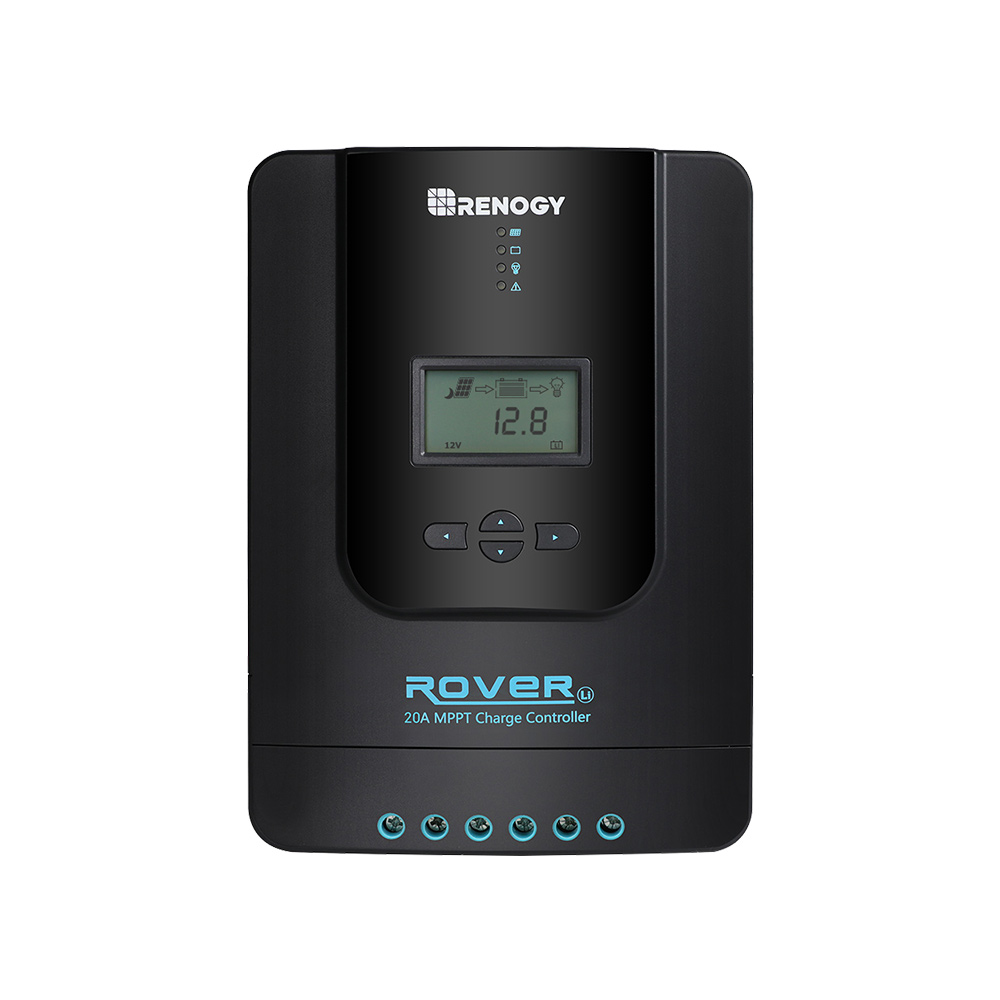

Rover 20A MPPT Solar Charge Controller

Room for Expansion

Visualized Energy Data

Rapid Heat Dissipation

The Rover charge controller excels with its rapid heat dissipation, ensuring efficient performance in even the most demanding environments. Its ability to quickly release heat helps maintain peak performance, protecting your batteries and system components.

Powering Your Adventures Faster

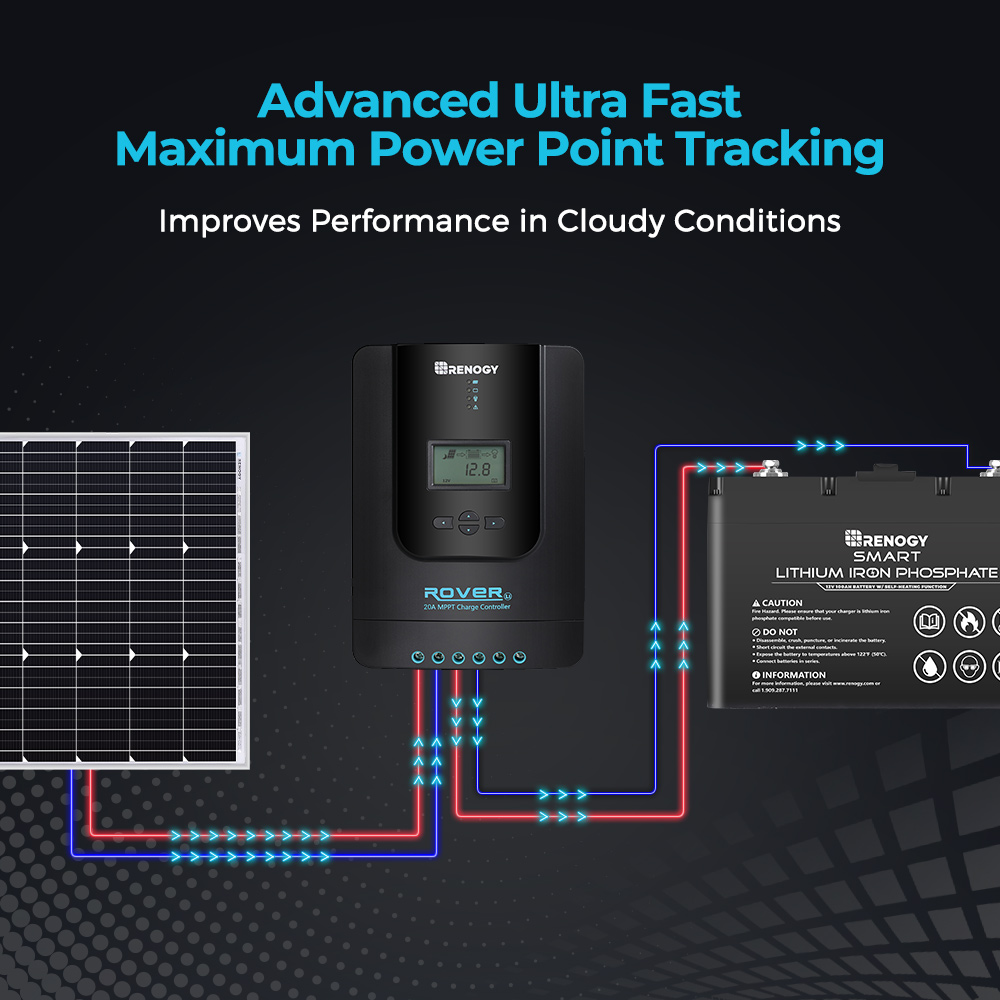

Experience unmatched charging efficiency with our MPPT charge controller. It maximizes every bit of sunlight, ensuring optimal battery charging. In just 4.9 hours, it can fully charge a 12V 100Ah battery, making it the ideal companion for your off-grid adventures.

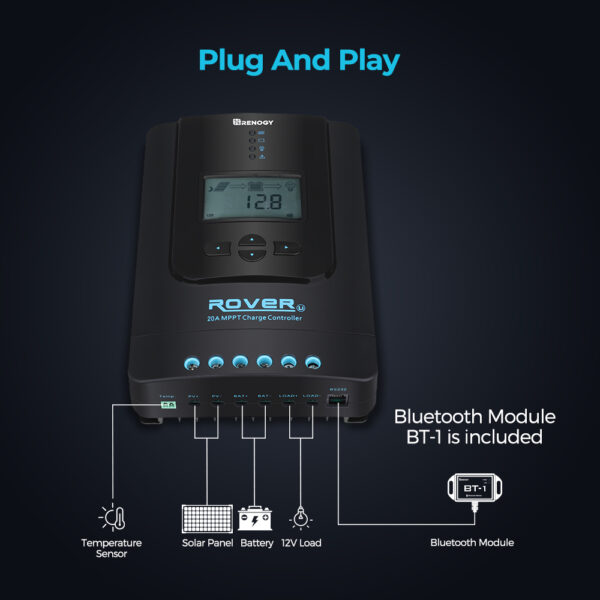

Works with Bluetooth

Control Your Energy From Distance

Versatile Load Control

Rover 20A Charge Controller features Auto-On/Off Mode, Timer Mode, Manual Mode, Test Mode, and Always-On Mode, further maximizing your system flexibility.

What’s in the box

Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further.

Additional information

Specification	RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR20) Electrical Parameters Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries) Rated Charge Current: 20A Max. PV Input Voltage: 95 VDC Max. PV Input Power: 12V/260W, 24V/520W Power Consumption: ＜100mA/12V; ＜58mA/24V Max Battery Voltage: 32V Ground Type: Negative Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. Environmental Data Protection Level: IP32 Operating Temperature Range: -35°C to 45°C; -31°F to 113°F Storage Temperature Range: -35°C to 75°C; -31°F to 167°F Operating / Storage Humidity: ≤ 90%, No Condensation Temperature Compensation: -3mV/°C/2V opc: Mechanical Specifications Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in Weight: 3.1 lbs / 1.4 kg Max. Terminals Size: 8 AWG 10mm2 opc: Certifications CE: YES FCC Class B Part 15 Compliant: YES Warranty Material and workmanship warranty: 3 Year

Specification

RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR20)
Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)

Rated Charge Current: 20A

Max. PV Input Voltage: 95 VDC

Max. PV Input Power: 12V/260W, 24V/520W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Max Battery Voltage: 32V

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

Environmental Data
Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

opc:

Mechanical Specifications

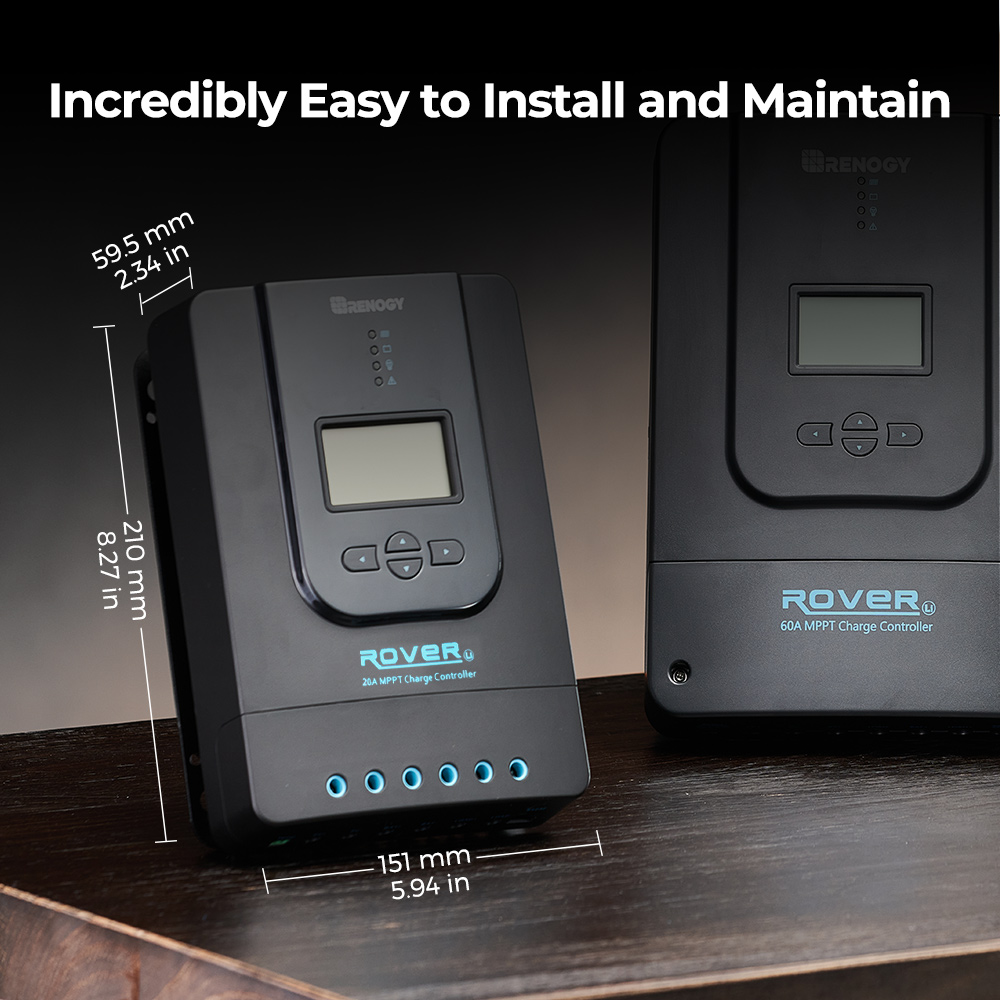

Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in

Weight: 3.1 lbs / 1.4 kg

Max. Terminals Size: 8 AWG 10mm2

opc:

Certifications
CE: YES

FCC Class B Part 15 Compliant: YES

Warranty
Material and workmanship warranty: 3 Year
