Renogy PRO 12V/24V 50A DC-DC Battery Charger with MPPT, waterproof

  • Versatile Dual-Charging: Supports both 12V and 24V systems with intelligent boost and buck functionality.

  • Weatherproof & Portable: Compact, lightweight, and IP67-rated for reliable performance in any environment.

  • Smart Energy Prioritization: Automatically switches charging sources, favoring solar and green power when available.

  • Certified Safe & Tested: CE, FCC, and RoHS certified with full compliance and verified testing.

  • Connected Power Monitoring: Features Bluetooth monitoring and wired CAN communication for real-time data access.

£305.99

Description

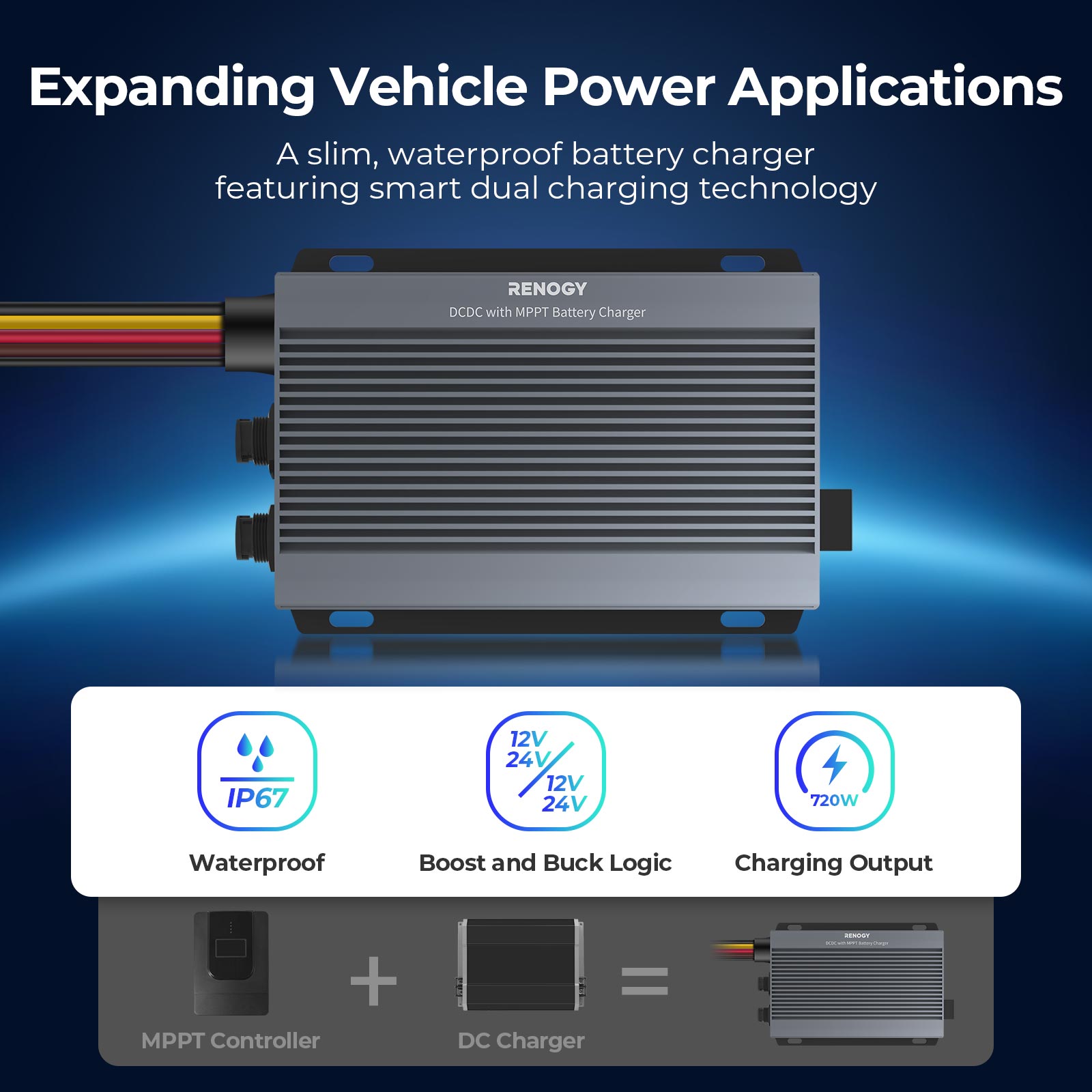

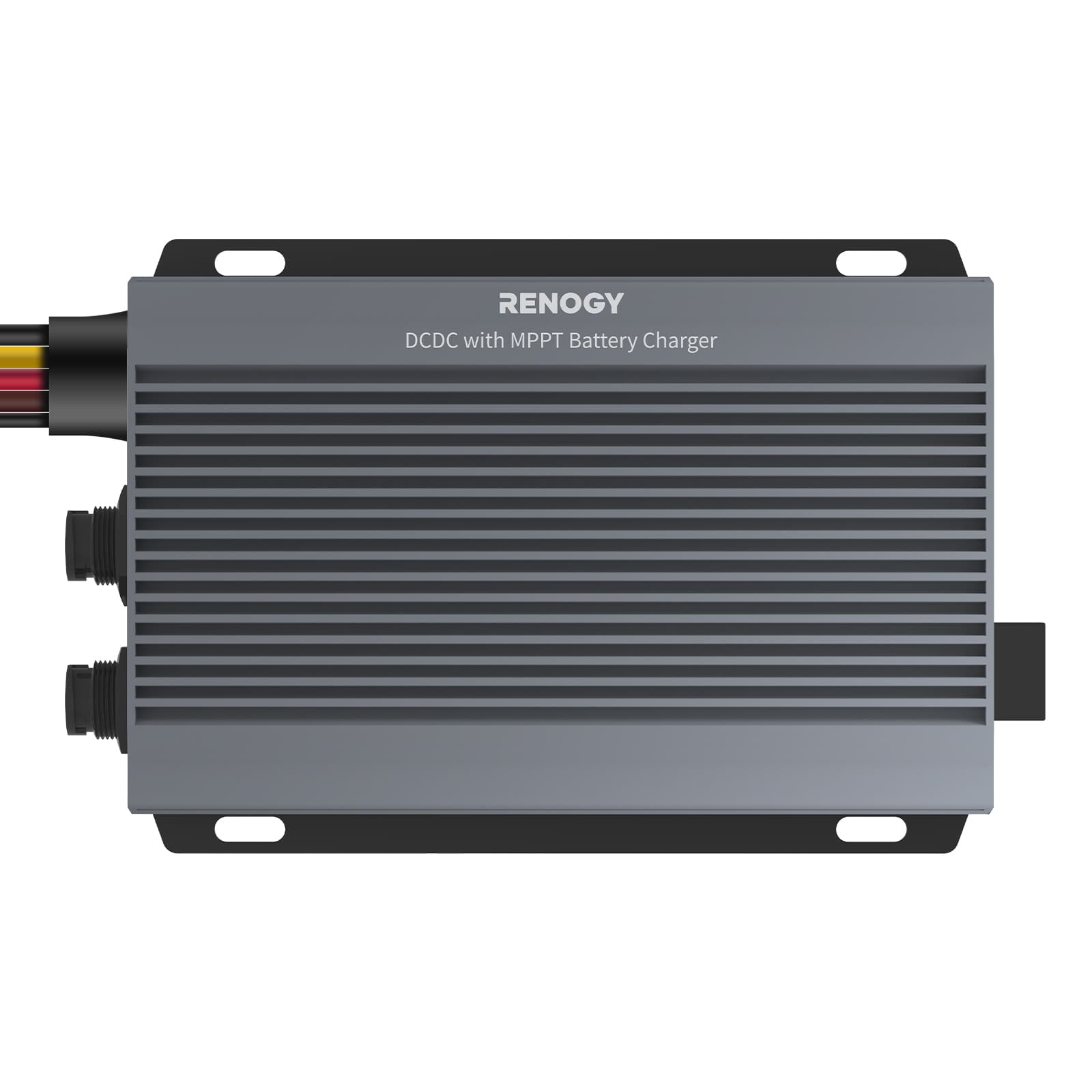

RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT

The Renogy IP67 50A DC-DC Dual Input Battery Charger with MPPT is a slim and waterproof solution for tight spaces. With intelligent boost and buck logic, this charger supports 12V/24V-12V/24V systems and prioritizes solar energy to efficiently charge your house battery and reduce generator load. It has a current of 50A and an output of 720W, automatically switching between solar and generator power for continuous charging. Designed for the environmentally conscious user, it strikes a balance between energy efficiency and spaciousness and performance. Transform sustainable energy with Renogy’s cutting-edge technology.

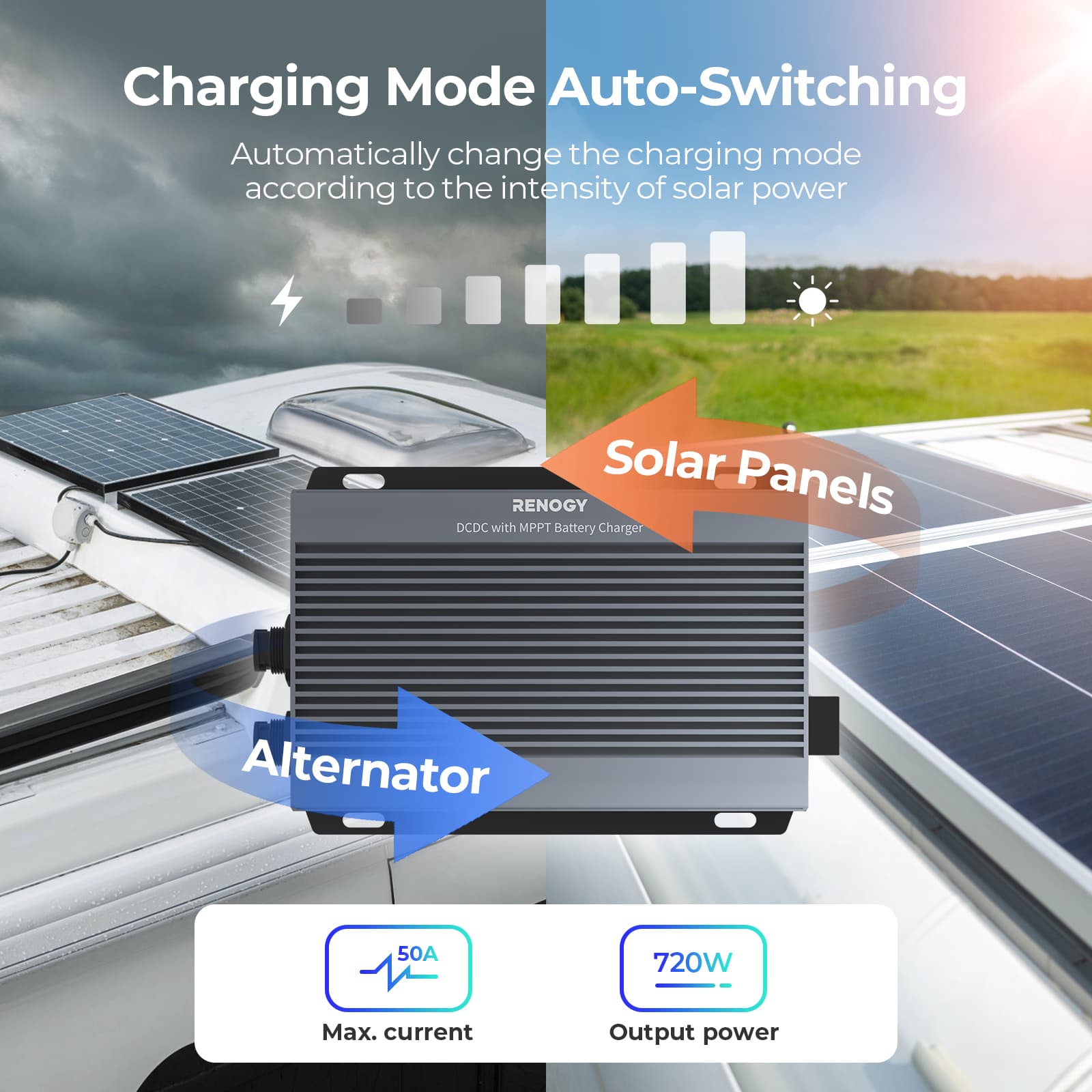

Intelligent Dual Charging Mode

Intelligently combining vehicle and solar power, this charger automatically adjusts modes based on sunlight intensity, ensuring optimal energy use at all times.

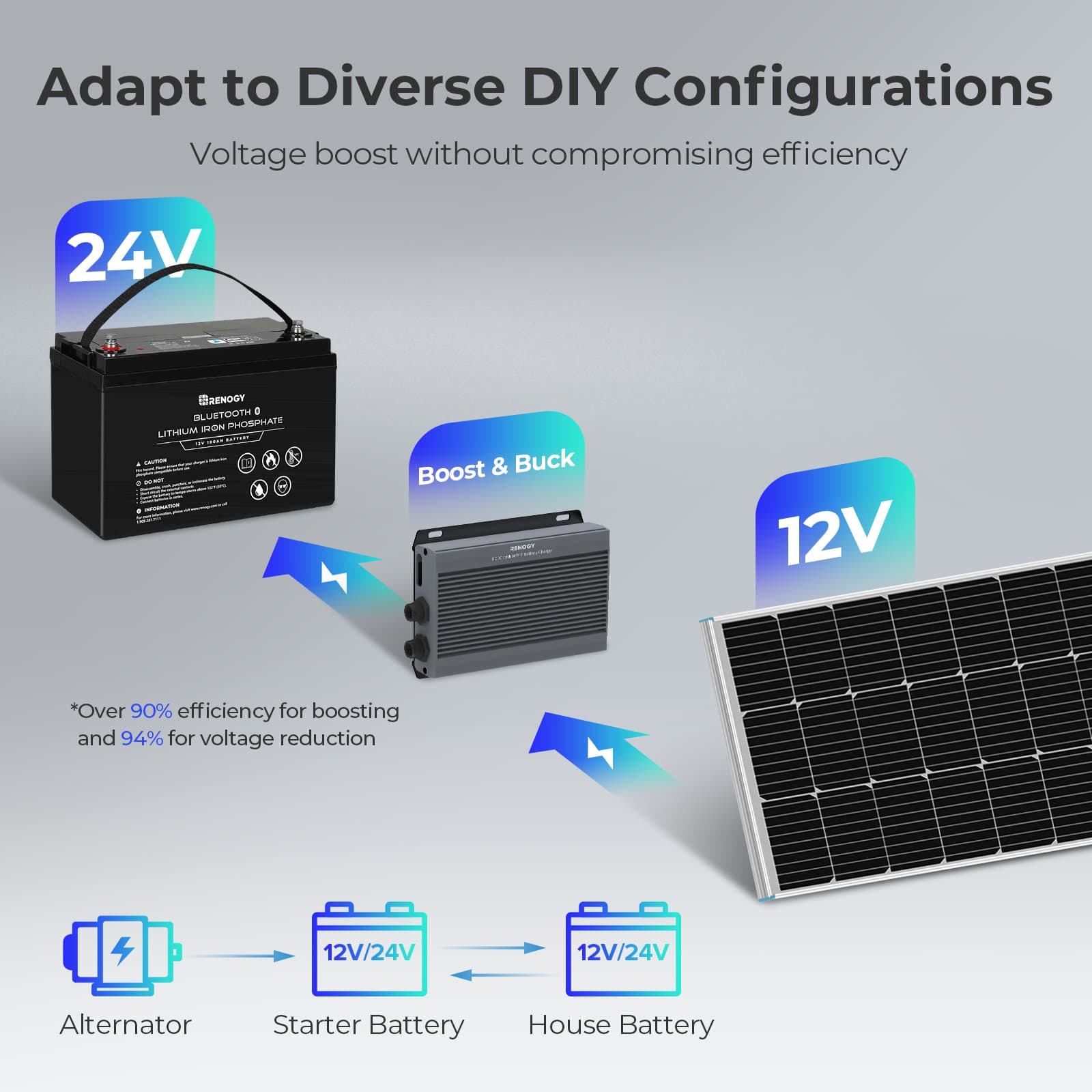

Versatile Voltage Adaptability

Light and Compact

Expanding solar system DIY options for greater versatility.

Compact Design for Space Optimization

Mountable in the engine compartment or side storeroom, this charger optimizes space, creating a more spacious and comfortable living area with easier movement.

Optimized Charging Efficiency

Enhanced Charging Safety

With 720W charging power, this battery charger can fully charge a 1.2kWh battery in just 1.8 hours.

Enhanced Charging Safety

Comprehensive electric protections safeguard the charging process.

Robust and Resilient Design

Drop-Resistant

The sheet metal casing provides the charger with a durable shell, designed to withstand drops and impacts, ensuring long-lasting performance.

Temperature-Resistant

Built to endure extreme temperatures, this charger operates flawlessly in conditions ranging from -31°F to 176°F, maintaining full-load performance even at 131°F.

Water-Resistant

The all-around glue filling design provides complete protection for the charger and ensures a high level of waterproofing.

Ultimate Reliability with Impeccable Efficiency

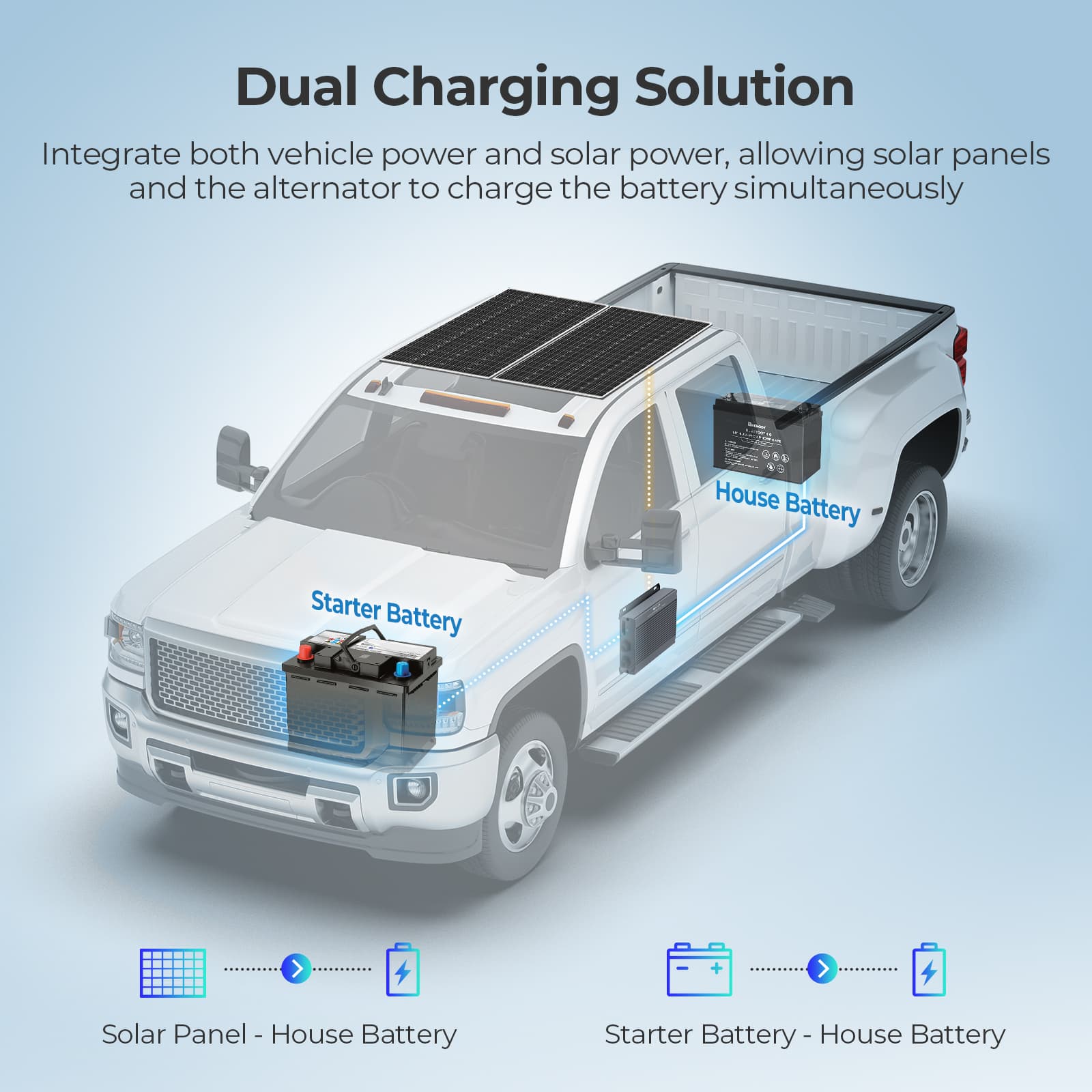

This battery charger efficiently powers the house battery while delivering a trickle charge to the starter battery, ensuring your vehicle starts reliably every time.

Additional information

Specification

RENOGY IP67 50A DC-DC Battery Charger with MPPT
Specification
System Voltage: 12V/24V – 12V/24V

Solar Input Voltage: 50 VDC

Output Voltage: 9-32 VDC

Alternator Input: 9-32 VDC

Maximum Output Current Rating: 50A@12V；25A@24V

Output Power: 720W

Battery Types: AGM/SLD , GEL ,FLD ,LI,USER

Input Fuse Rating: 75A-100A

Output Fuse Rating: 75A-100A

Charging Efficiency: 0.97

Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium)；0mV / ℃ / 2V; no compensation (Lithium)

Idle Power Consumption: ＜100mA

GENERAL DATA
Terminal Range: 8AWG-4AWG

Communication Protocol: Modbus ; RV-C

Operating Temperature Range: '-31℉ to 176℉/-35℃ to 80℃

Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃

Humidity: 0%-95%, No Condensation

Maximum Operating Altitude: 3500m

Enclosure Rating: IP67

Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm

Weight: 4.10 lb / 1.86 kg

Certification: CE;RoHS;FCC Part 15 class B

Warranty: 2-year material warranty

Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
