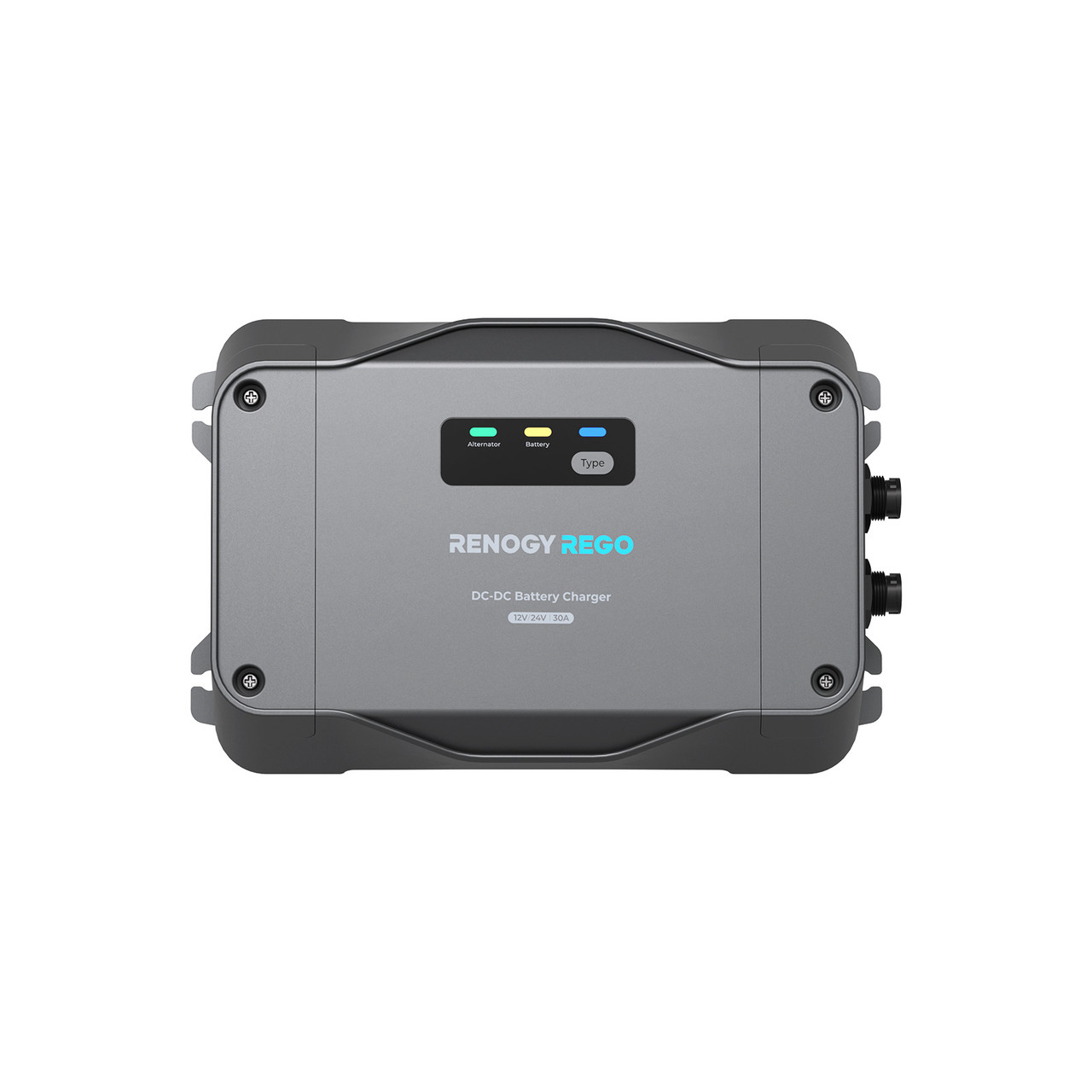

REGO-12/24V-12/24V 30A Bi-directional

Auto 12V/24V switching for versatile vehicle power systems.
Smart bidirectional charging keeps batteries always topped up.
Bluetooth & CAN control for real-time status anytime, anywhere.
14-layer protection built for harsh and extreme environments.
Globally certified with 5-year warranty for peace of mind.

£189.99

Description

REGO 12V/24V 30A DC-DC Battery Charger

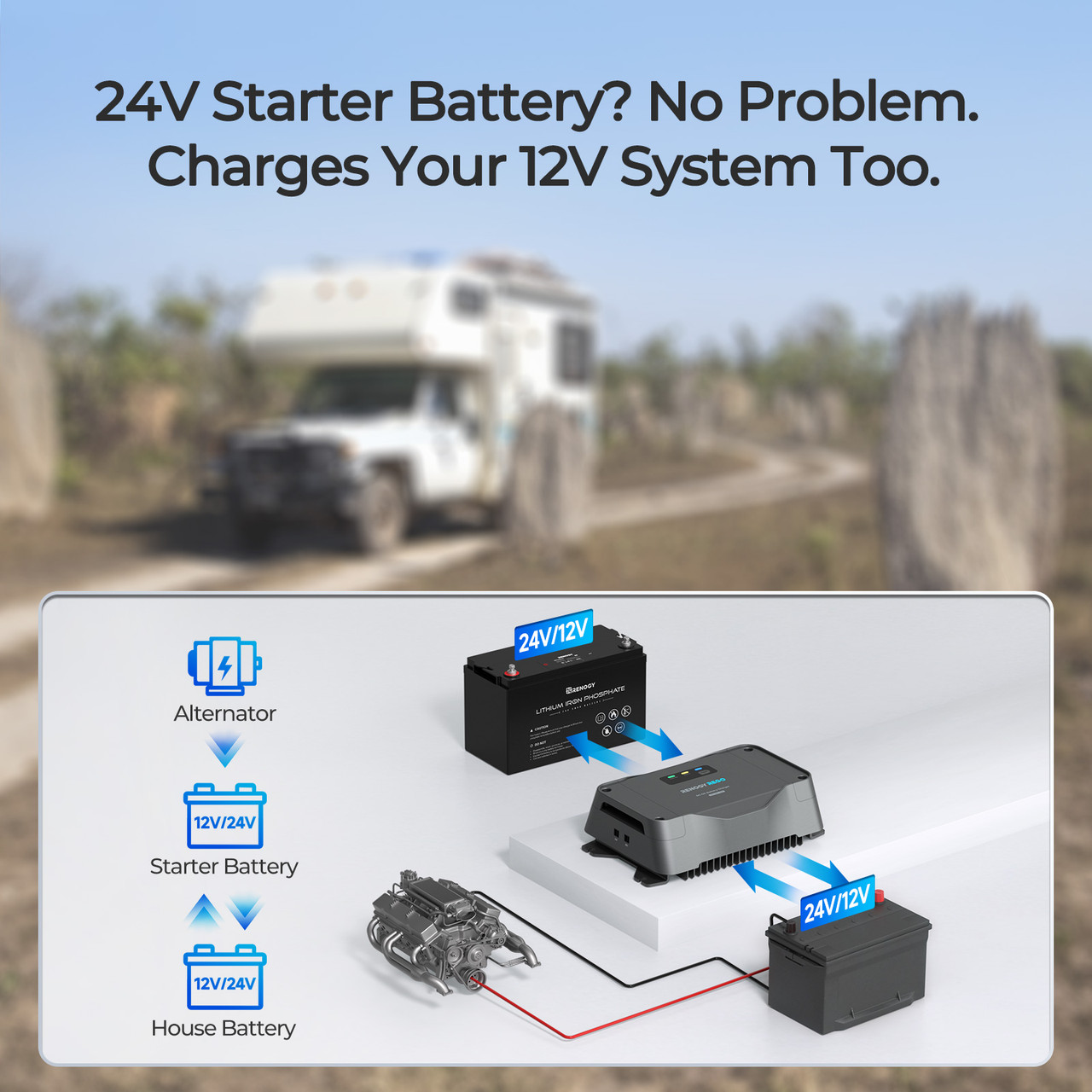

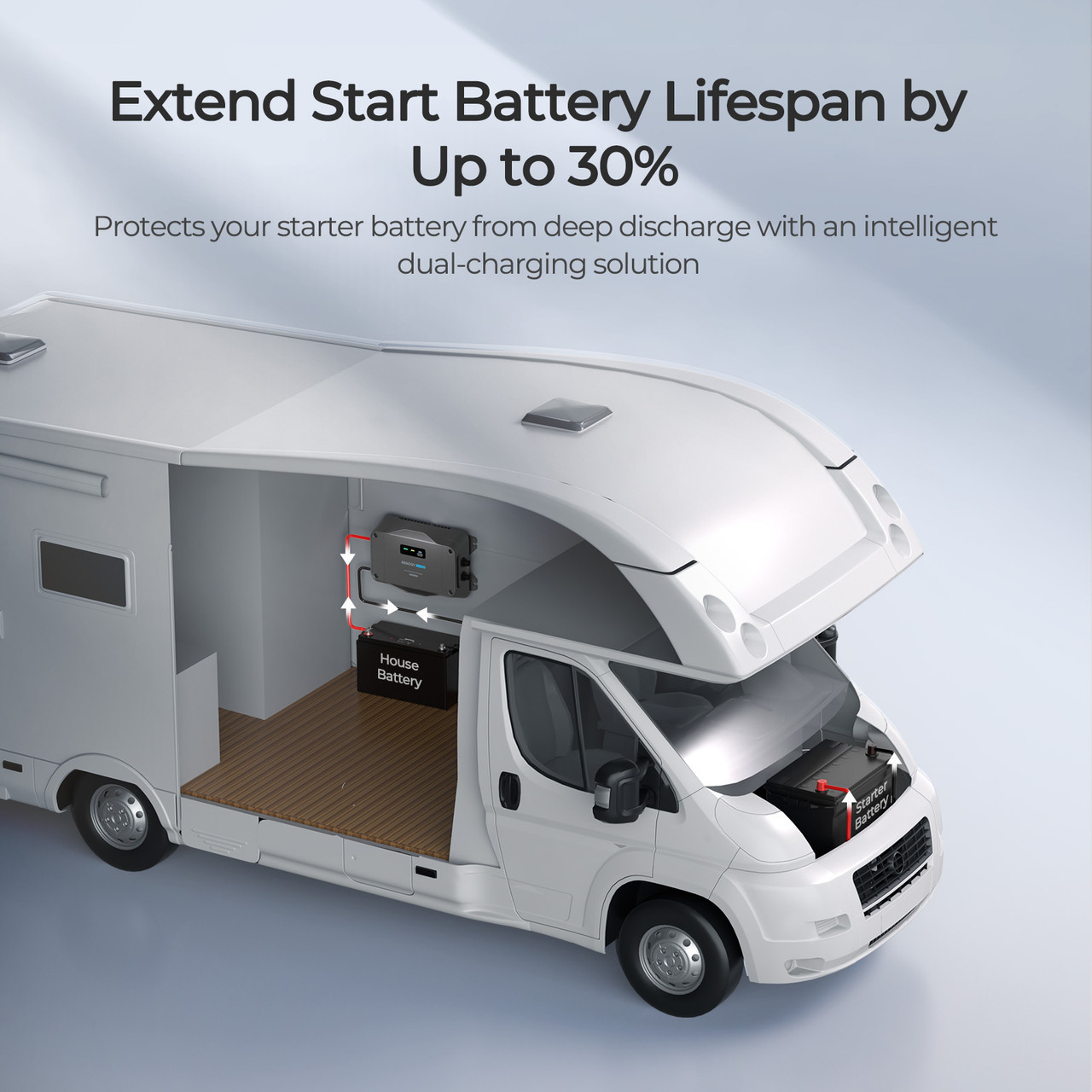

Smart 12V/24V Dual Charging

Auto-switching between 12V/24V systems keeps both batteries optimally charged and protected.

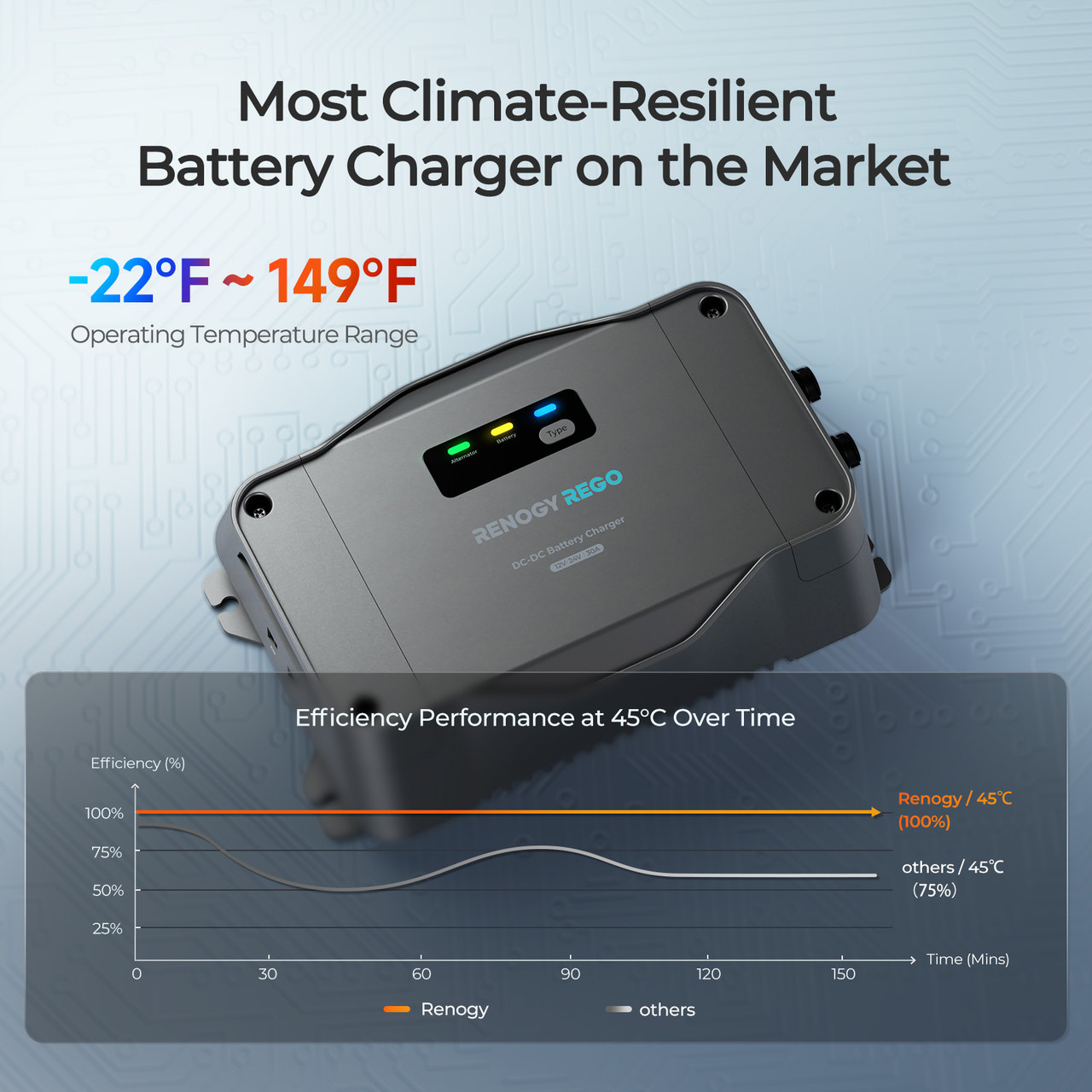

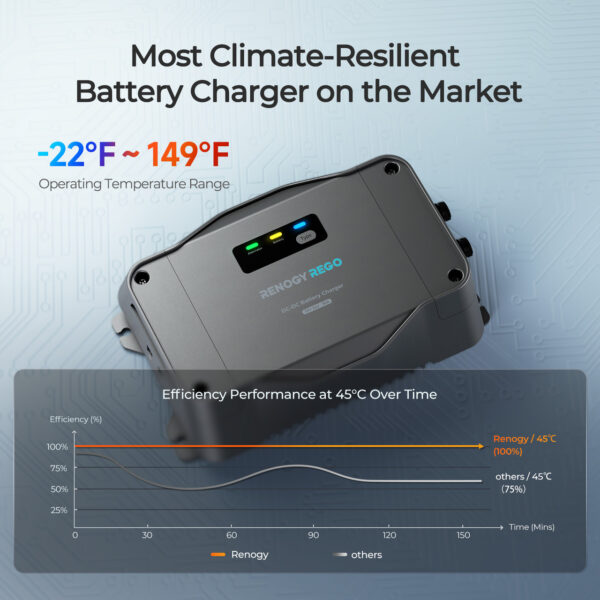

With You Wherever the Road Takes You

Wide temperature range from -31°F to 176°F ensures stable performance anywhere.

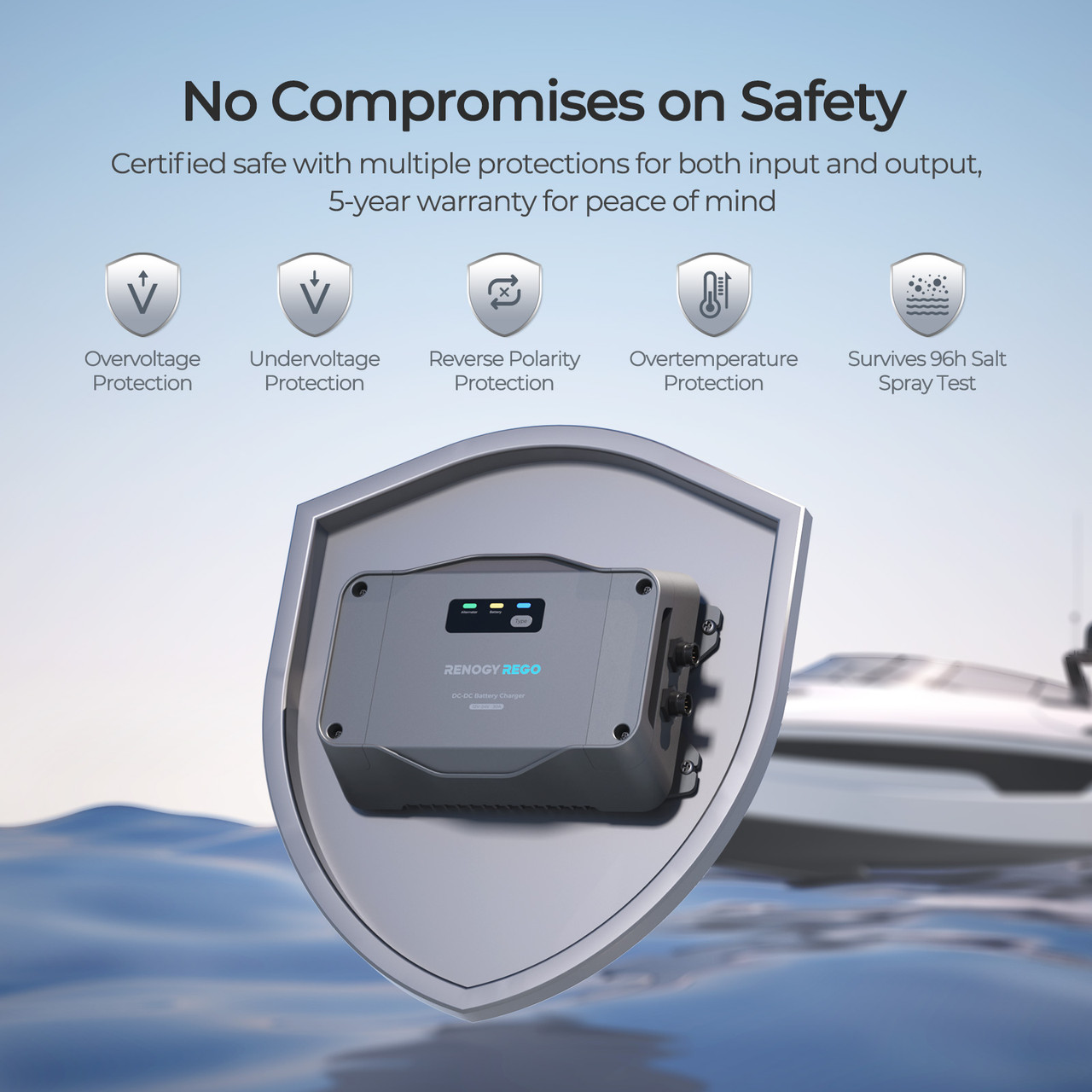

Comprehensive Safety Protection

Advanced safeguards ensure secure, reliable operation for total peace of mind.

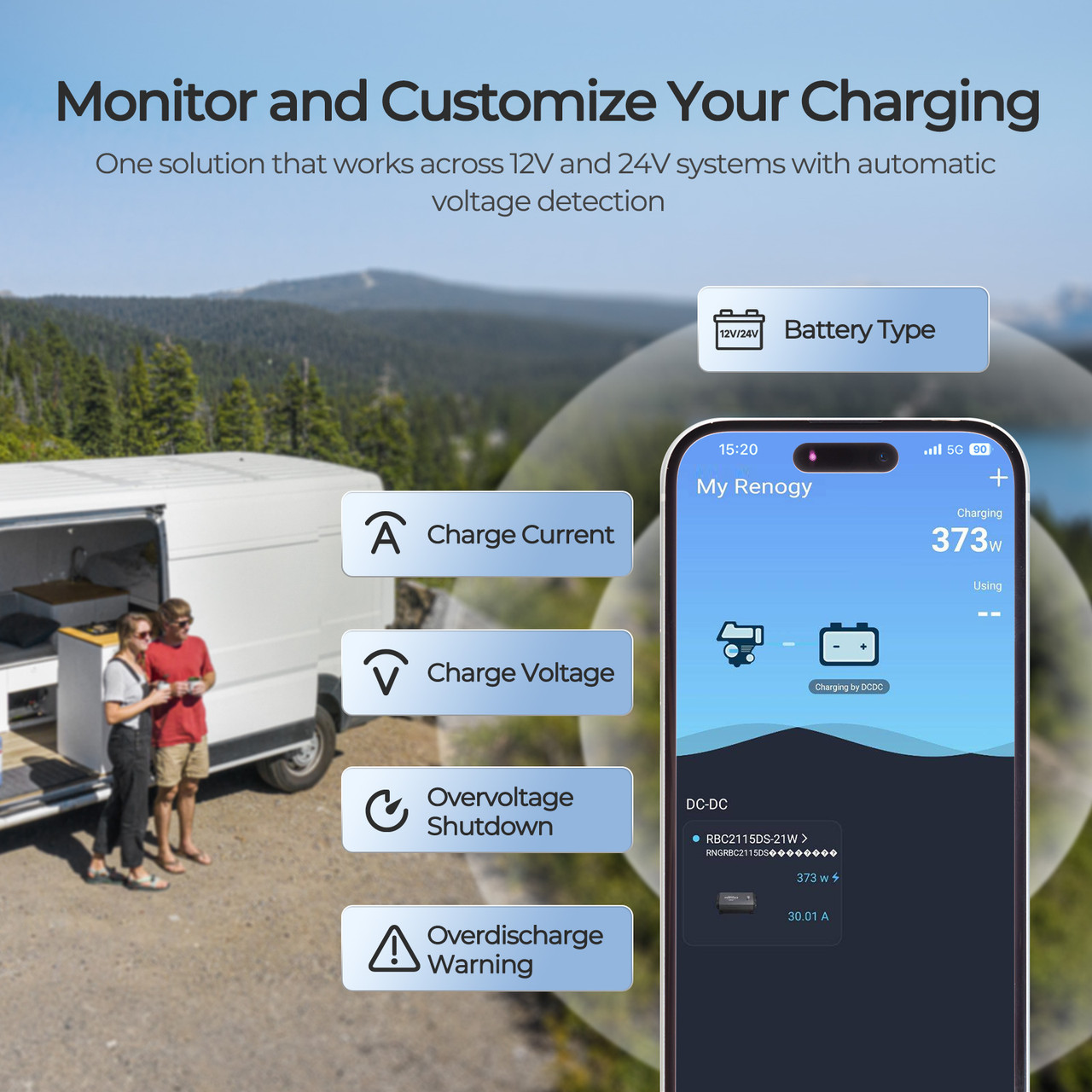

Charge the Way You Want

Take full control of how you charge—adjust voltage and current to match your setup, and choose exactly when your house battery should top up the starter battery.

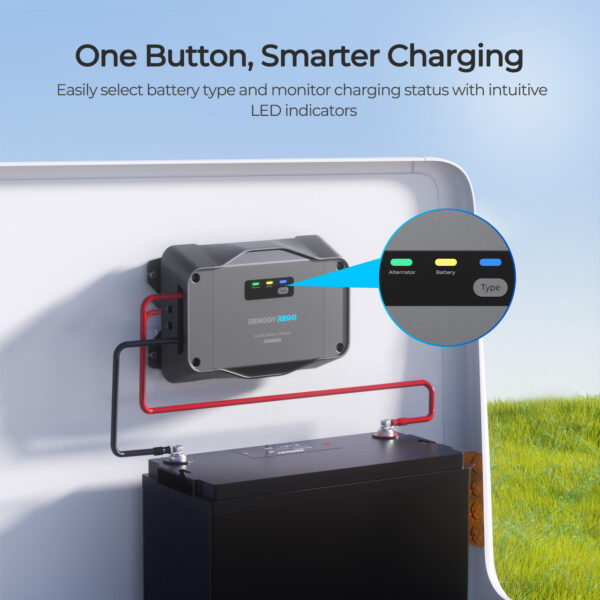

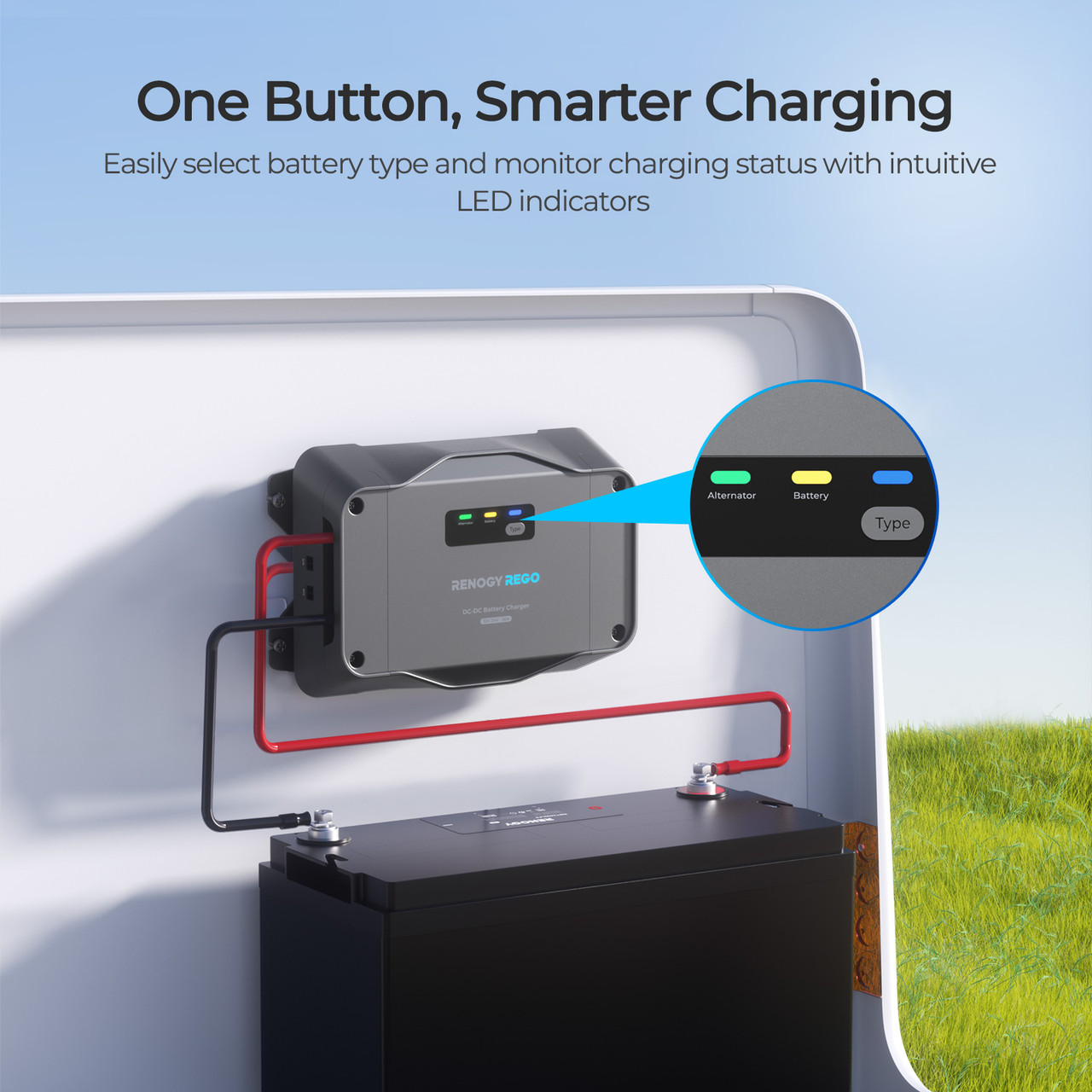

Stay Informed at a Galance

Even when you’re offline in remote areas, color-coded LEDs instantly show the battery type and charging status.

Big Power in a Tiny Footprint

Fits tight spaces yet powers big adventures, perfect for under-seat installation.

Additional information

Specification

REGO 12V/24V 30A DC-DC Battery Charger
General Data
Grounding: Common Negative

Communication: RS485; RENOGY CAN

Operating Temperature: -22℉ -149℉ /-30 ℃ – 65℃

Storage Temperature: -31℉ -176℉ /-35 ℃ – 80℃

Humidity: 0%~95% RH

Cooling: Heat Sink

Enclosure Rating: IP43

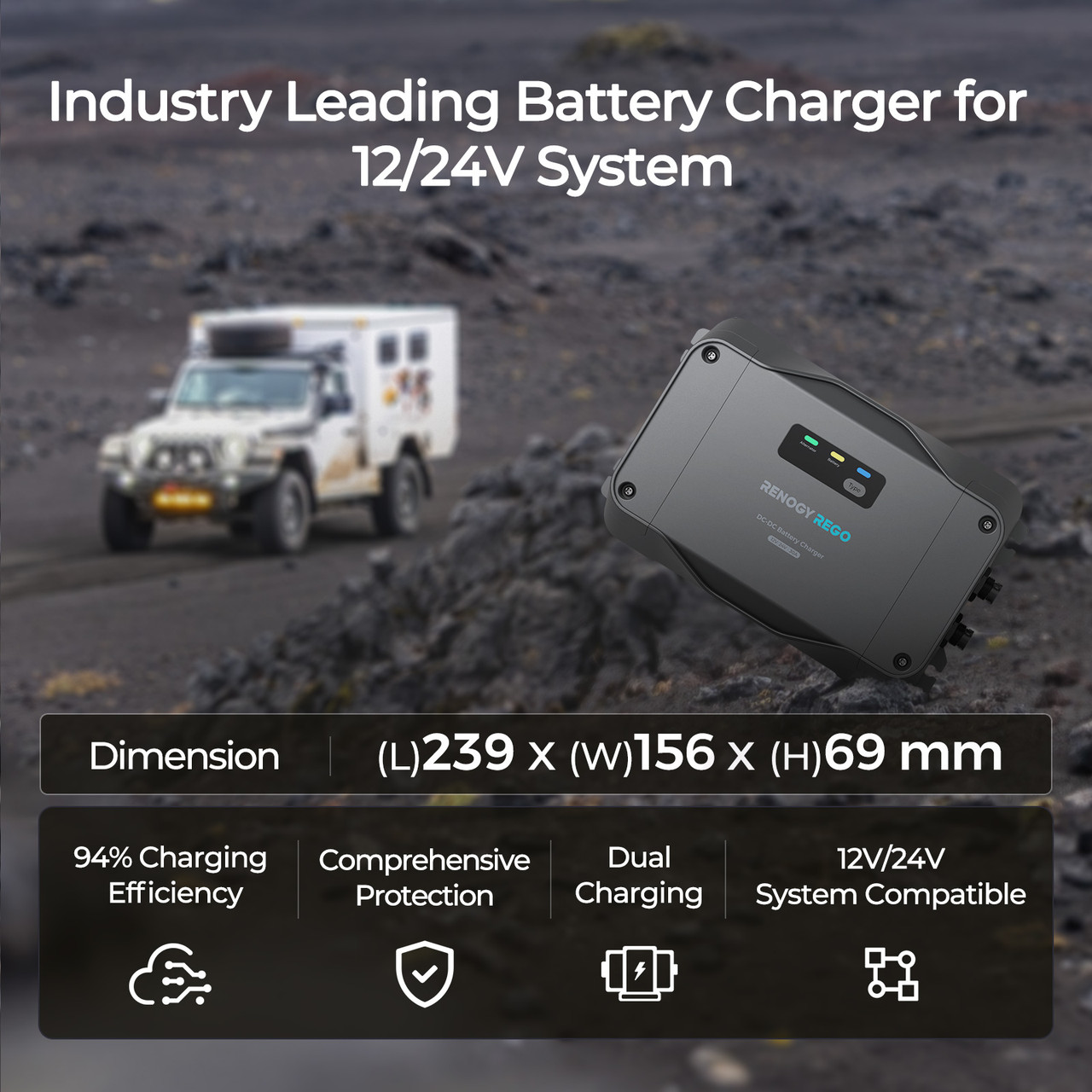

Dimensions (LxWxH): 239 x 156 x 69 mm / 9.41 x 6.15 x 2.74 inch

Weight: 2.0 kg /4.41 lb

Regulatory and Safety Specifications: FCC Path 15, Class B, CE, RoHS, SAA, E-amrk

Charger Data
System Voltage: 12V/24V-12V/24V

Output Voltage: 9-32V DC

Alternator Input: Traditional Alternator (default 12V): 13.2-16.0VDC; Adjustable Input (default 12V): 12.0-15.0 VDC (DC Home )

Maximum Output Current Rating: 30A

Output Power: 450W

Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate

Charging Efficiency: ≥94%

Idle Power Consumption: ＜50 mA

Warranty Information
Accessories: 5-year material warranty
