Description

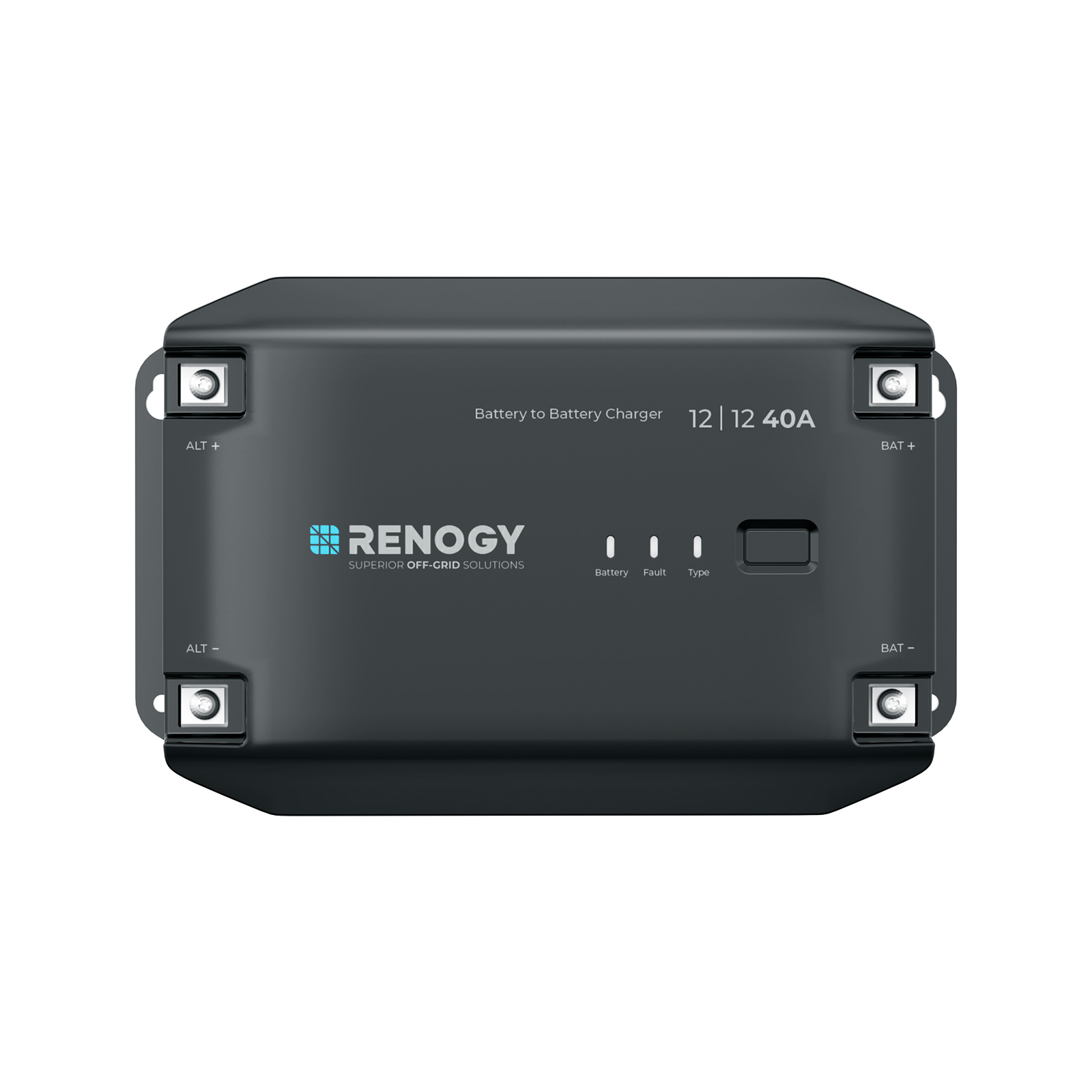

Meet the Renogy 12V 40A DC to DC Battery Charger, the second generation of the DCC series. Built for the ultimate on-the-go charging experience, this state-of-the-art charger combines efficient energy utilization with smart control. It is compatible with both traditional and smart generators, safeguarding the batteries of your vehicle while reaching up to 94% charging efficiency. With advanced charging logic, the charger improves performance for better energy management. Stay on top of things through remote monitoring with the Renogy app to check system status at any time and from anywhere. Whether one is venturing out into the great outdoors or simply embracing the van life, the Renogy 12V 40A DC to DC Battery Charger is a reliable companion for efficient and effective charging.

Elevate your driving charging experience with smart control.

The second-generation DCC charger intelligently reduces output power in high-temperature environments, ensuring safe and efficient charging without compromising system performance.

Enable or disable lithium battery activation based on battery status via the DC Home app, extending battery lifespan directly from your phone!

Effortless remote monitoring and control of charging parameters.

The included battery temperature sensor delivers real-time data to the charger, enabling precise adjustments to charging parameters for optimal performance and battery longevity.

Quieter Cooling Solution

Experience enhanced performance with natural heat dissipation and reduced 30dB noise levels.

Corrosion-Proof for Long-Term Use

This compact, corrosion-resistant charger is perfect for installation in small boat cabins and humid marine environments, ensuring reliable performance in challenging conditions.

Additional information

Specification	Renogy 40A DC to DC Battery Charger GENERAL DATA Terminal Range: 8AWG – 6AWG Grounding: Common Negative Communication Protocol: RS485 Communication Operating Temperature Range: -4℉ -122℉ /-25 ℃ – 60℃ Storage Temperature Range: -4℉ -122℉ /-40 ℃ – 85℃ Humidity: 0%-95%, No Condensation Maximum Operating Altitude: 3000m Enclosure Rating: 0%- 95% ,no condensation Dimensions: 9.31 in (236.5 mm)x6.00 in (152.5 mm)x2.30 in(58 mm) Weight: 4.41 lb / 1.88 kg Certification: CE/RoHS/FCC Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection ELECTRICAL DATA System Voltage: 12V-12V Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC" Maximum Output Current Rating: 40A Output Power: 584W Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User Input Fuse Rating: 60A Output Fuse Rating: 50A Charging Efficiency: 94% Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium) Idle Power Consumption: ＜15mA PACKAGE INCLUDES The First Option: battery charger x1, temperature sensor x1, IGN Signal Wire x1, User Manual x1, Terminal Ring x4 opc: WARRANTY INFORMATION Accessories: 2-year material warranty

Specification

Renogy 40A DC to DC Battery Charger
GENERAL DATA

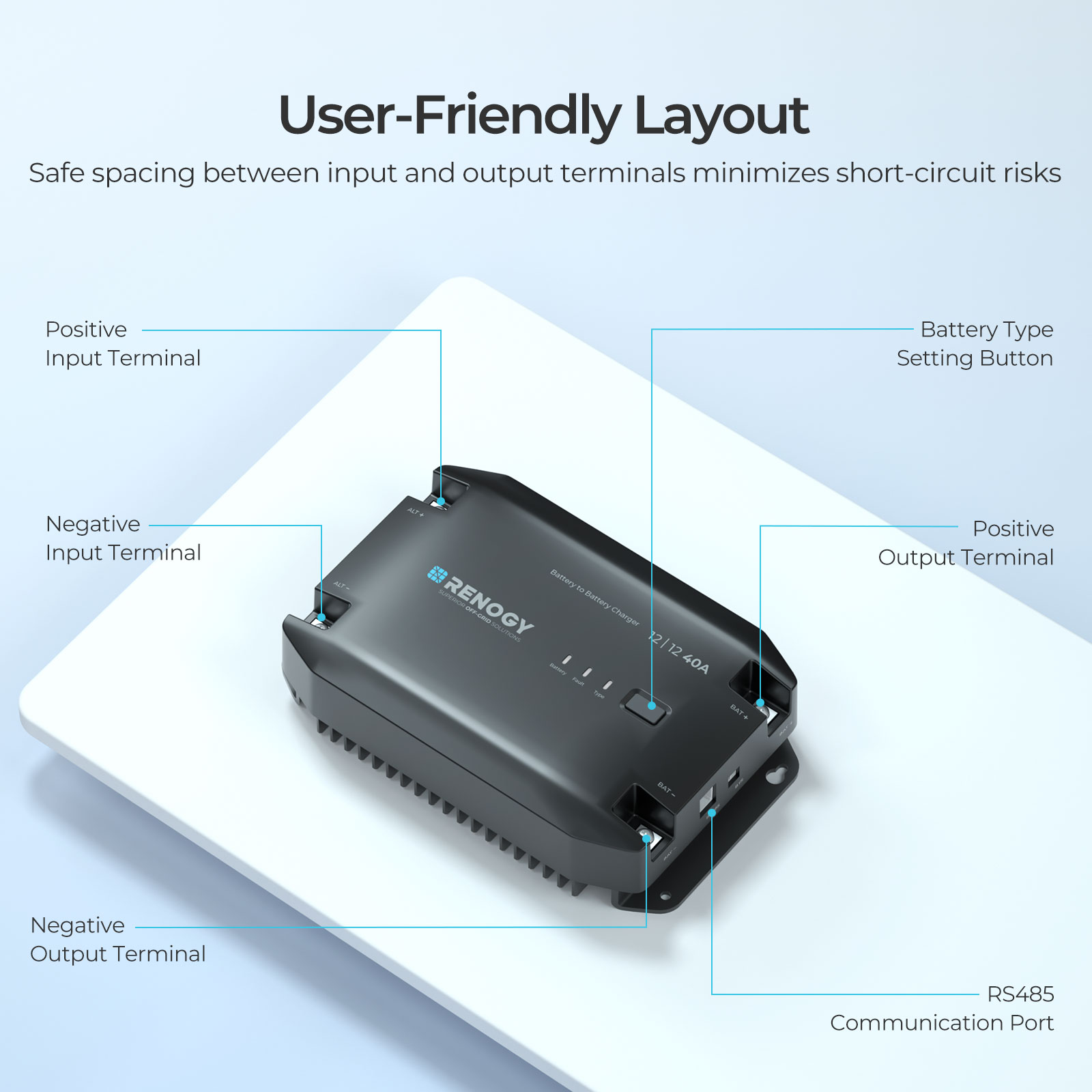

Terminal Range: 8AWG – 6AWG

Grounding: Common Negative

Communication Protocol: RS485 Communication

Operating Temperature Range: -4℉ -122℉ /-25 ℃ – 60℃

Storage Temperature Range: -4℉ -122℉ /-40 ℃ – 85℃

Humidity: 0%-95%, No Condensation

Maximum Operating Altitude: 3000m

Enclosure Rating: 0%- 95% ,no condensation

Dimensions: 9.31 in (236.5 mm)x6.00 in (152.5 mm)x2.30 in(58 mm)

Weight: 4.41 lb / 1.88 kg

Certification: CE/RoHS/FCC

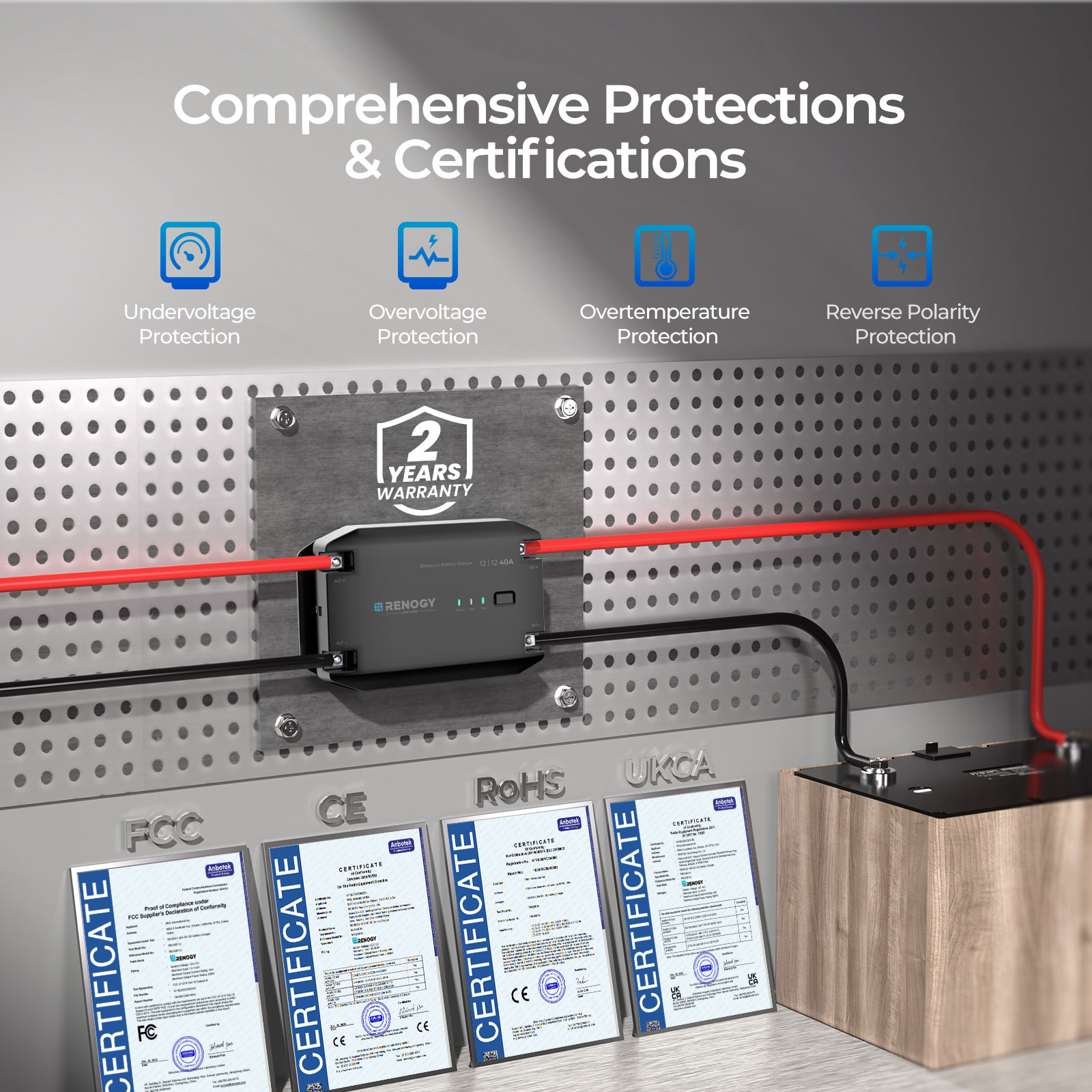

Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection

ELECTRICAL DATA

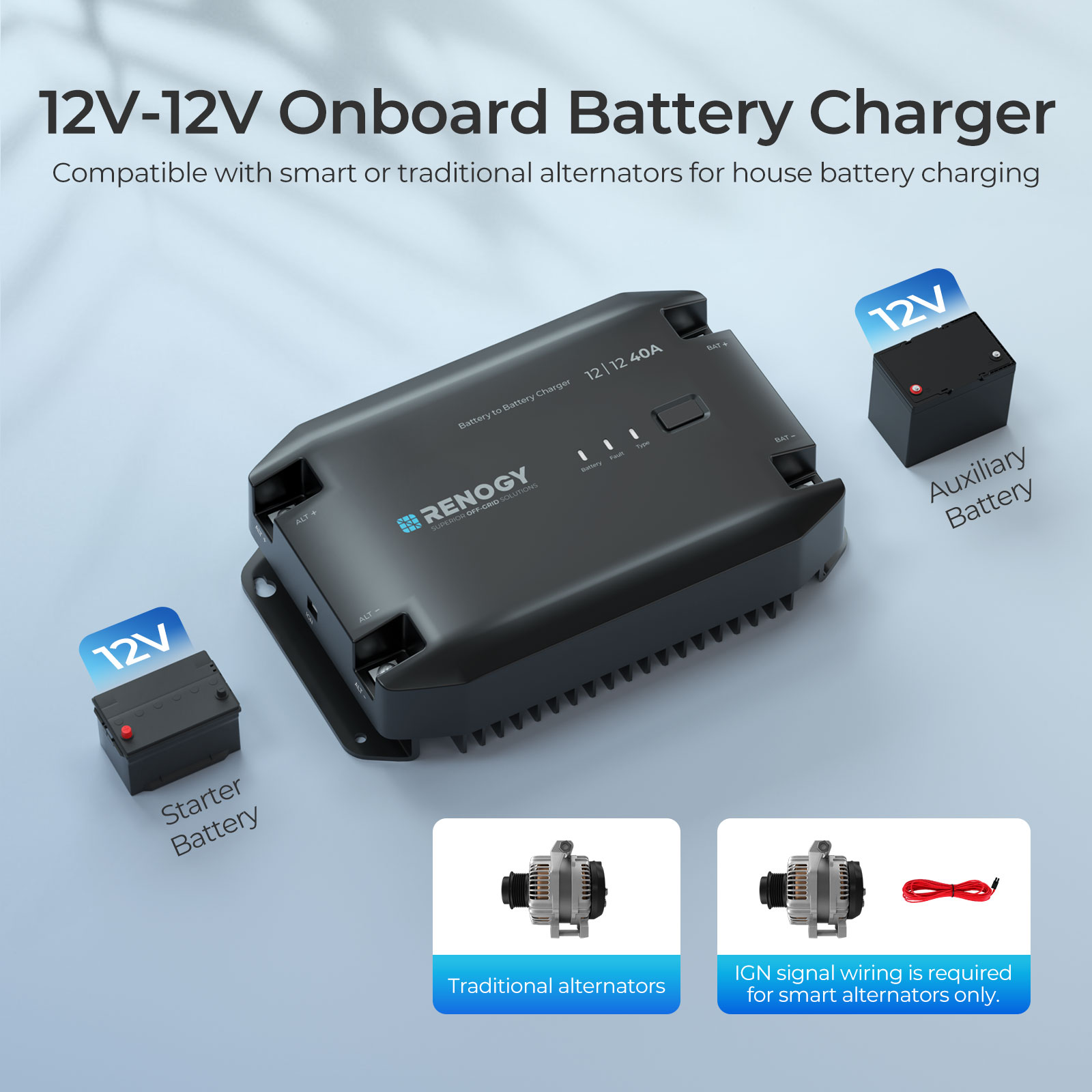

System Voltage: 12V-12V

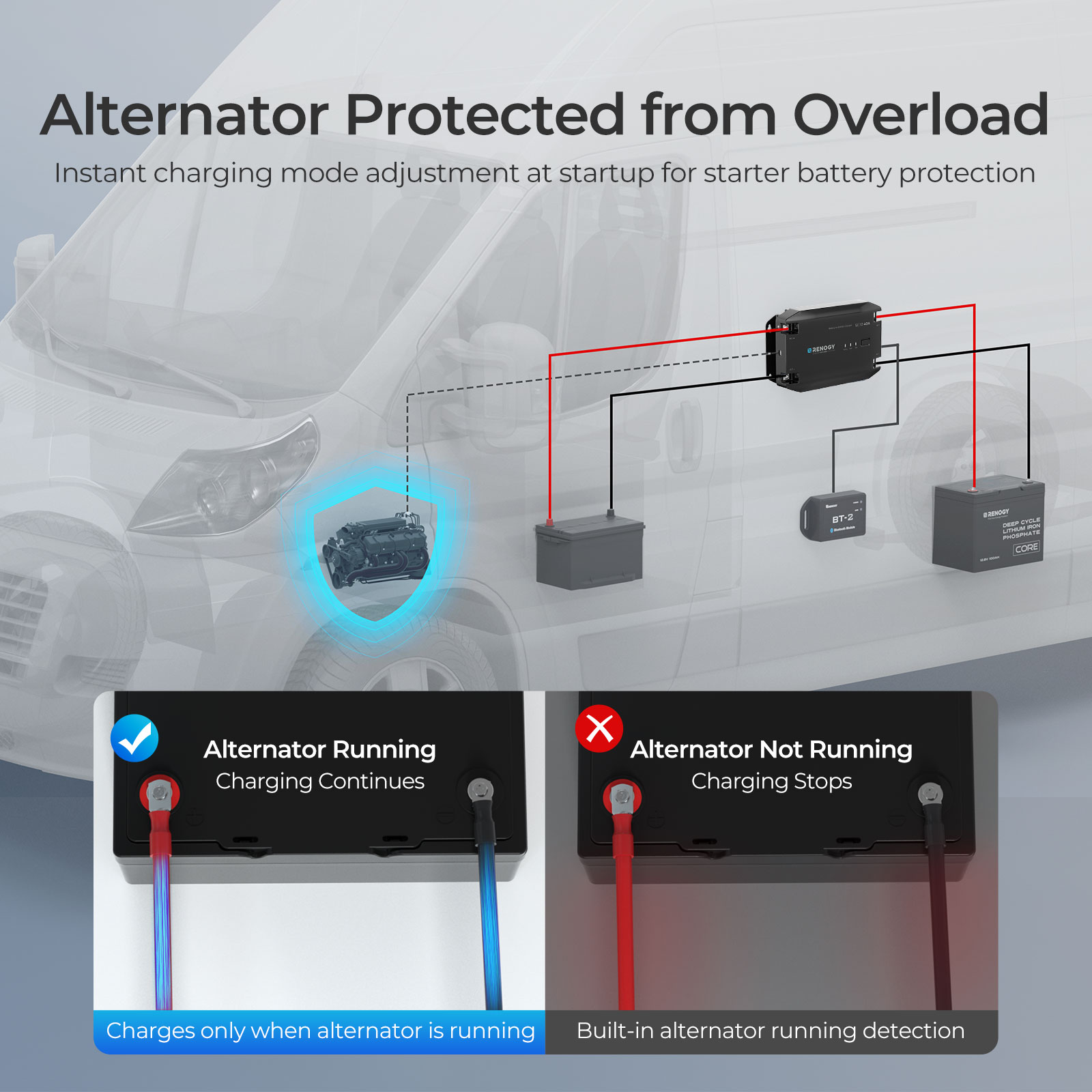

Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC"

Maximum Output Current Rating: 40A

Output Power: 584W

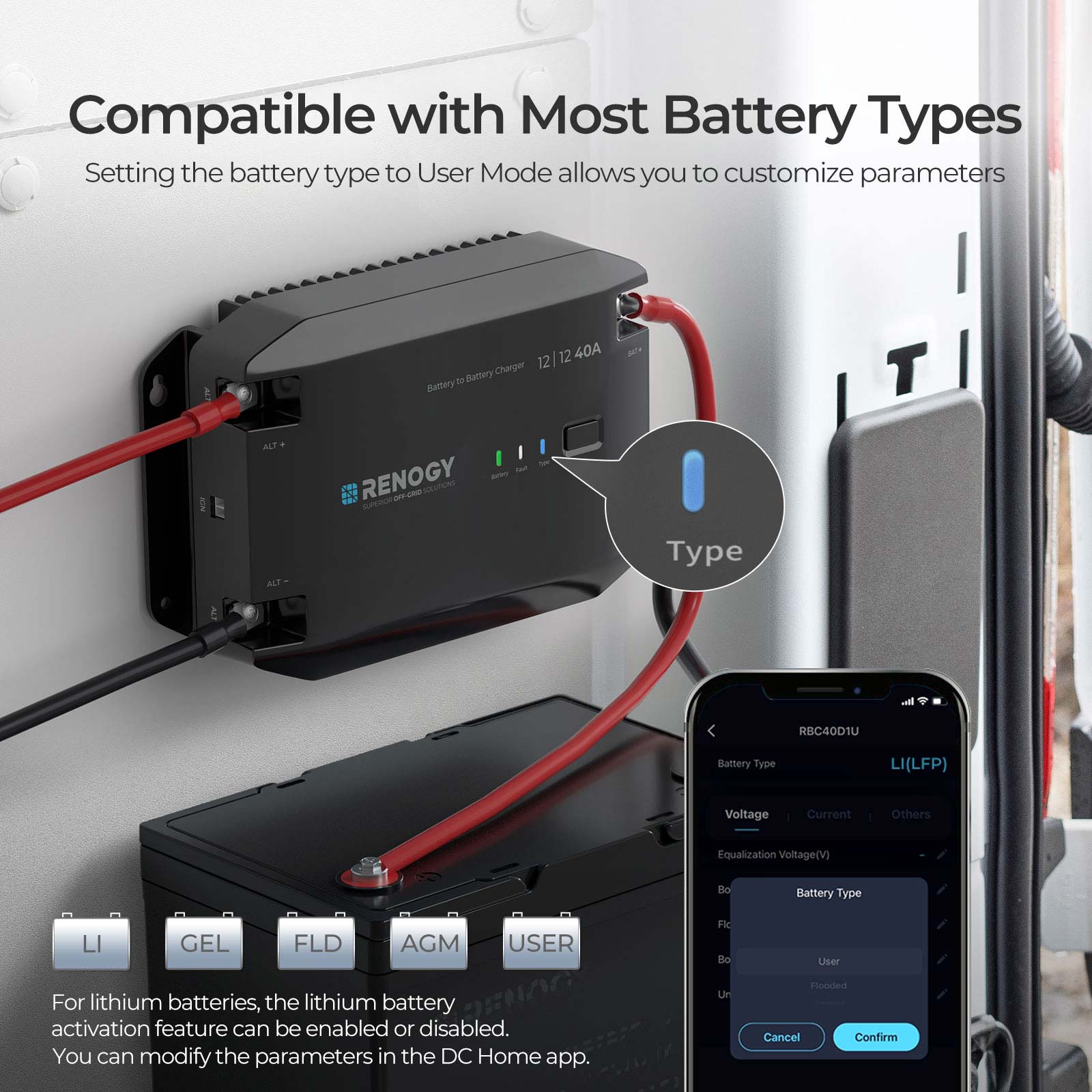

Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User

Input Fuse Rating: 60A

Output Fuse Rating: 50A

Charging Efficiency: 94%

Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)

Idle Power Consumption: ＜15mA

PACKAGE INCLUDES
The First Option: battery charger x1, temperature sensor x1, IGN Signal Wire x1, User Manual x1, Terminal Ring x4

opc:

WARRANTY INFORMATION
Accessories: 2-year material warranty
