Up to 8 batteries can be connected in parallel, offering a total capacity of up to 40KWh.

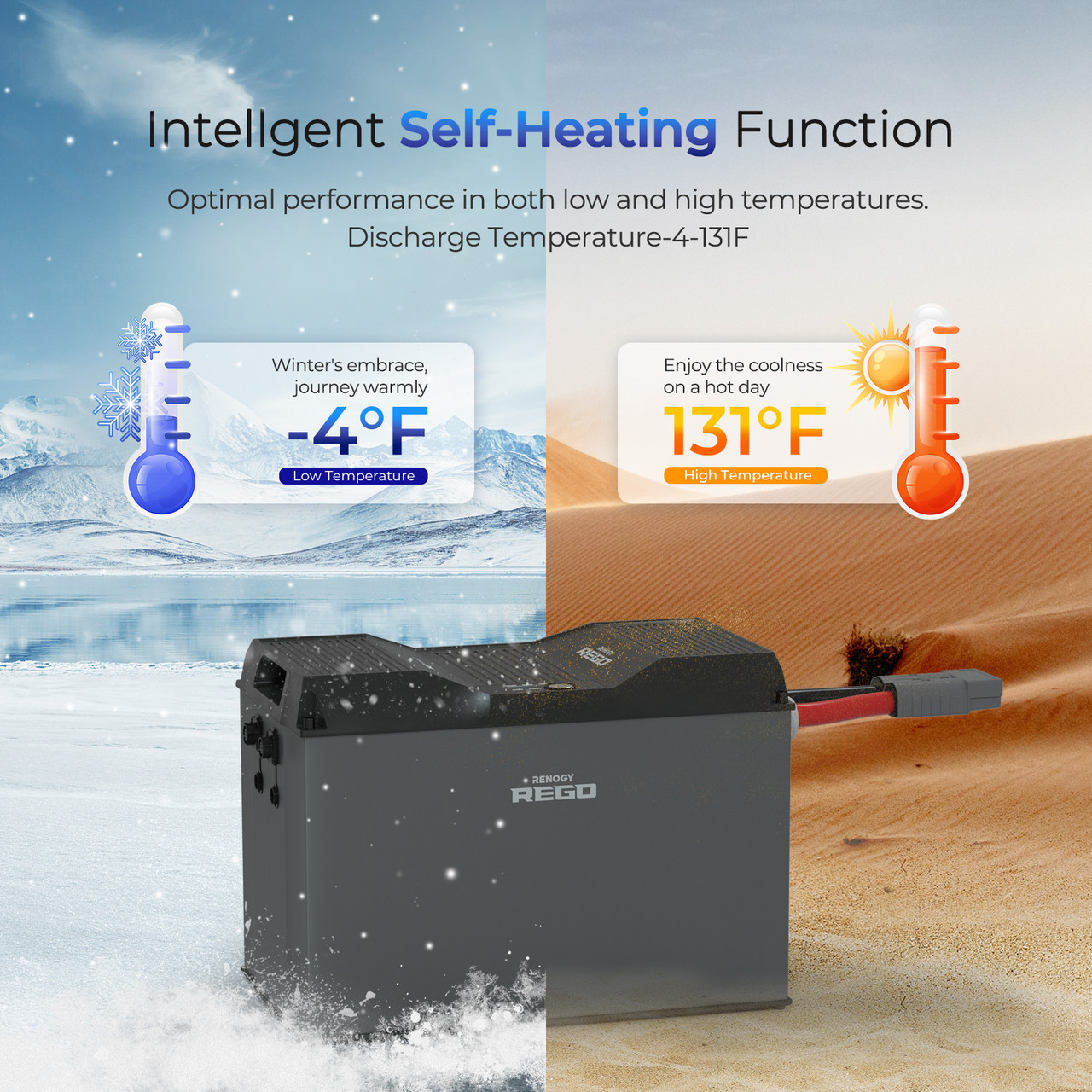

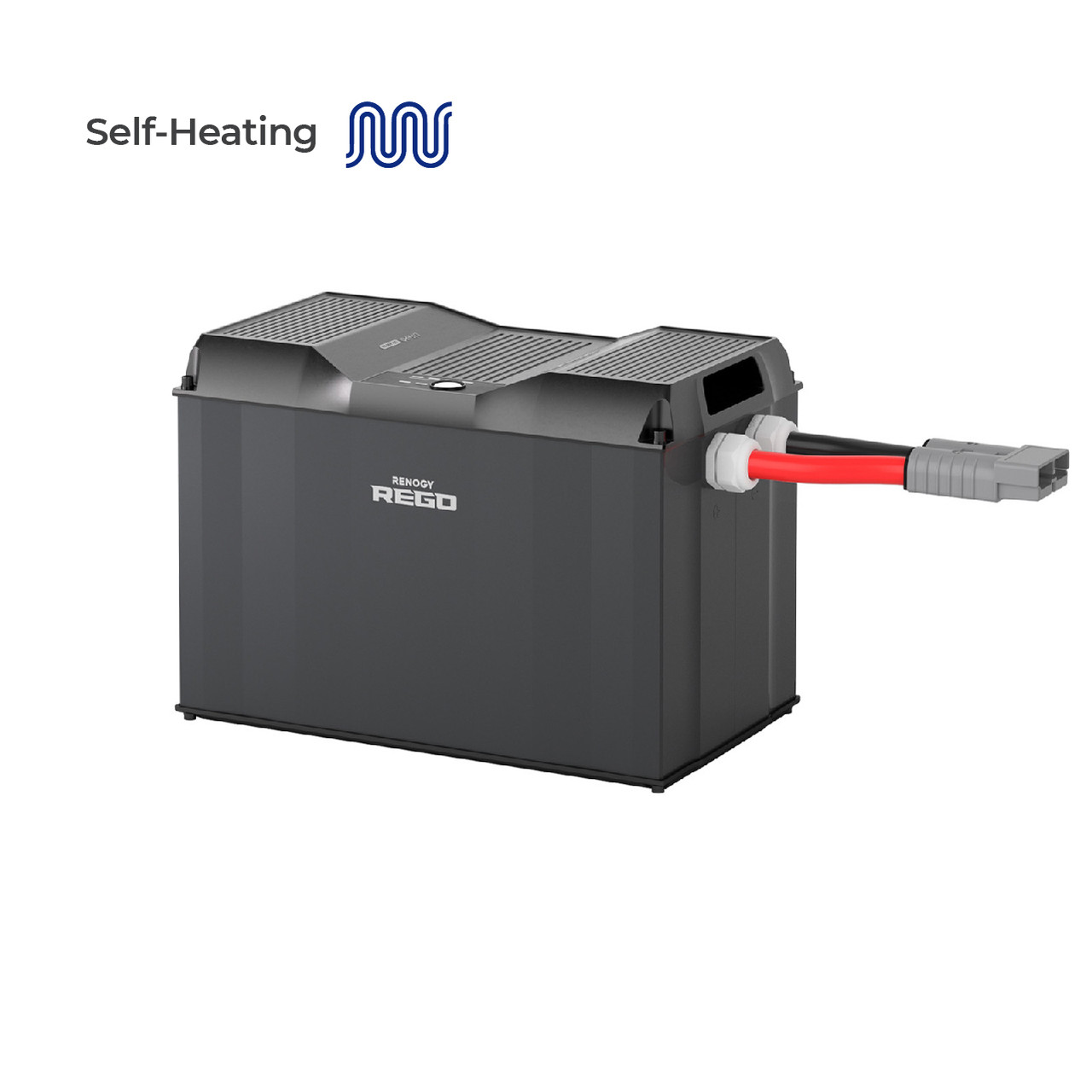

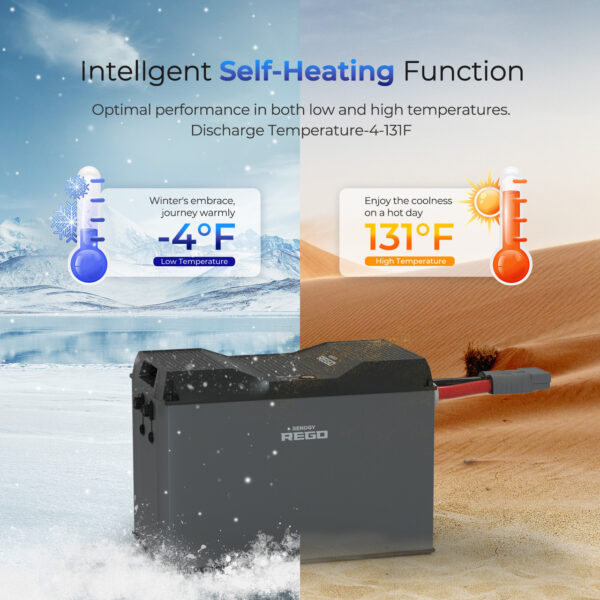

Intellgent Self-Heating Function
Optimal performance in both low and high temperatures. Discharge Temperature-4-131F

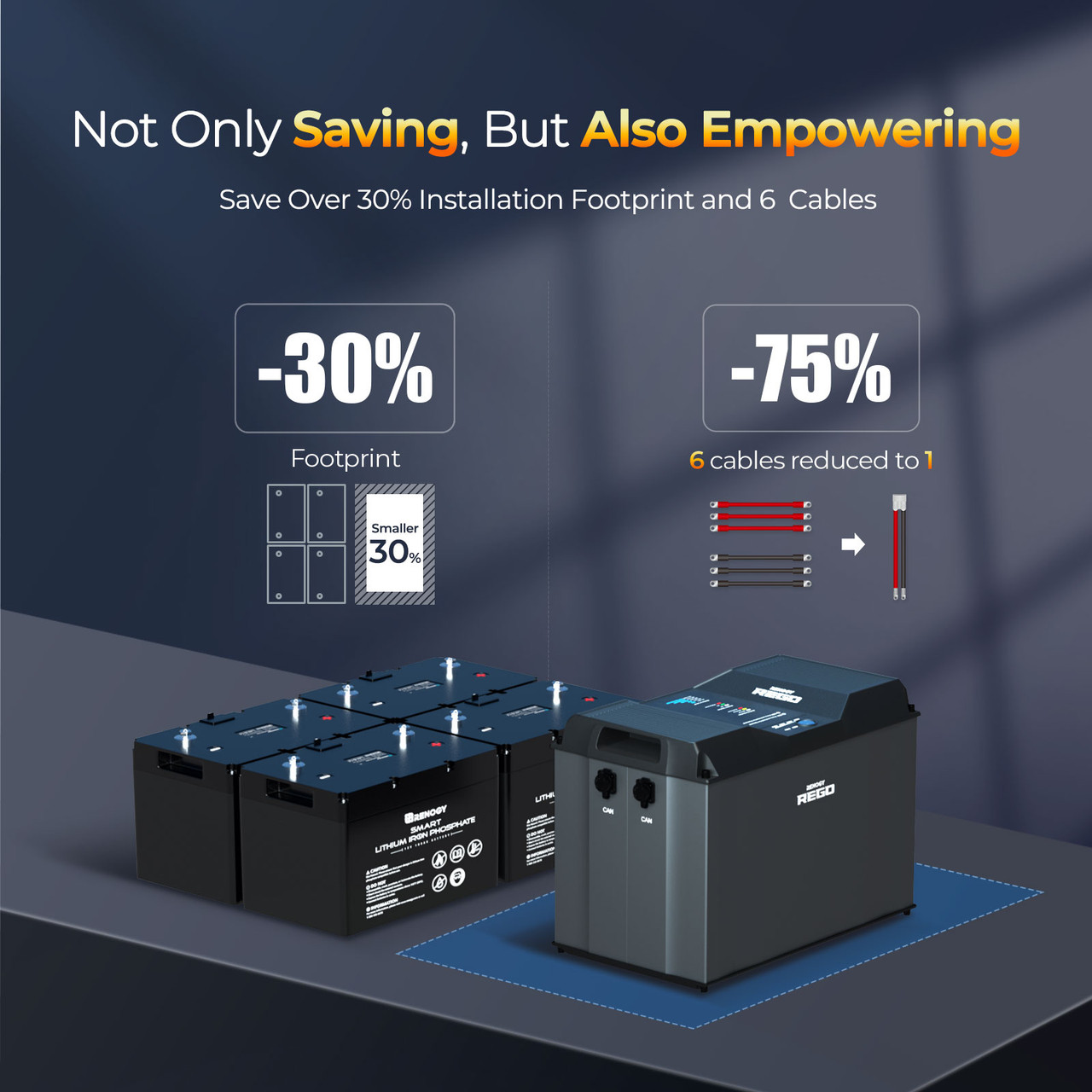

Save Over 30% Installation Footprint and cut 6 Cables

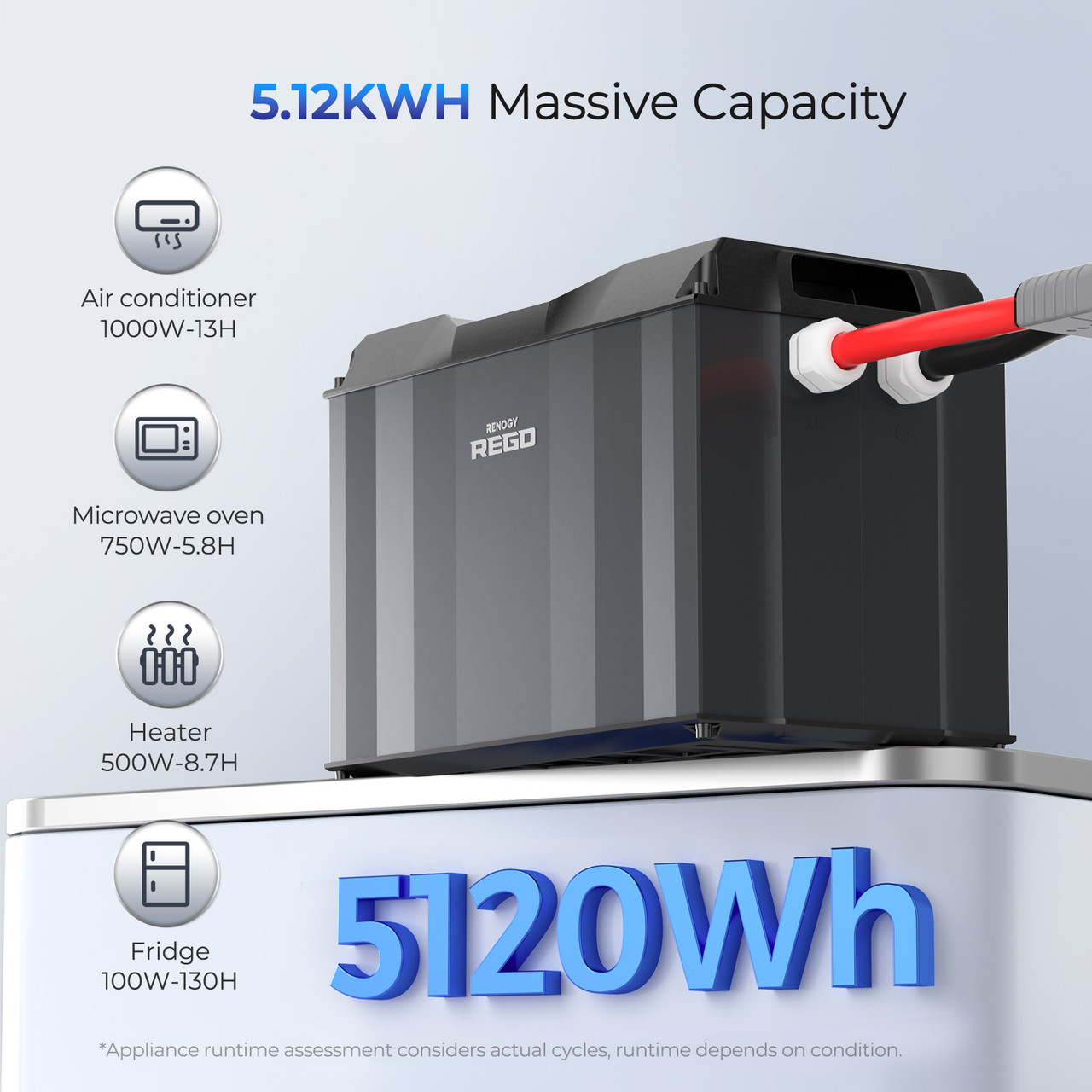

Replace four 12V 100A batteries with one REGO 12V 400A, unlocking 5.12kWh of storage, saving 30% on installation space, and eliminating 6 cables. Streamlined, powerful, efficient.

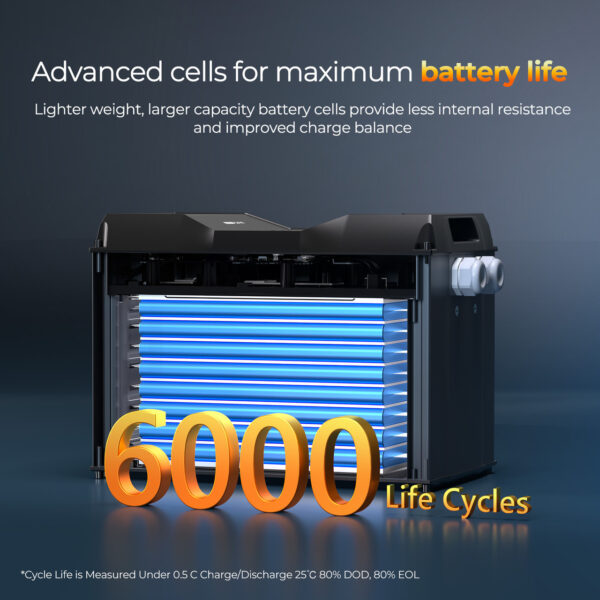

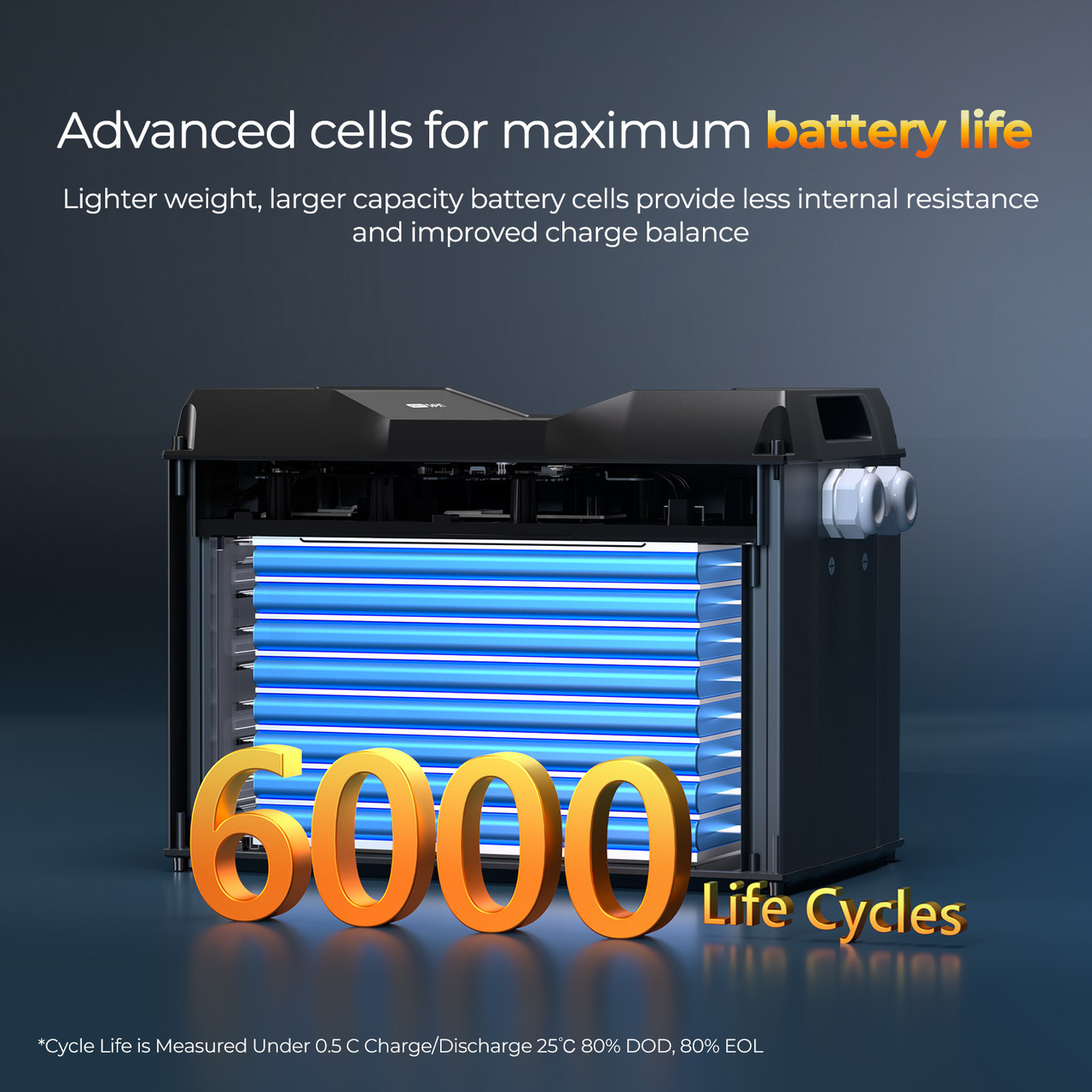

Advanced cells for maximum battery life
Lighter weight, larger capacity battery cells provide less internal resistance and improved charge balance
New Generation Smart BMS
Innovative smart BMS ensures absolute reliability and safety of the battery
Advanced cells for maximum battery life
Lighter weight, larger capacity battery cells provide less internal resistance and improved charge balance

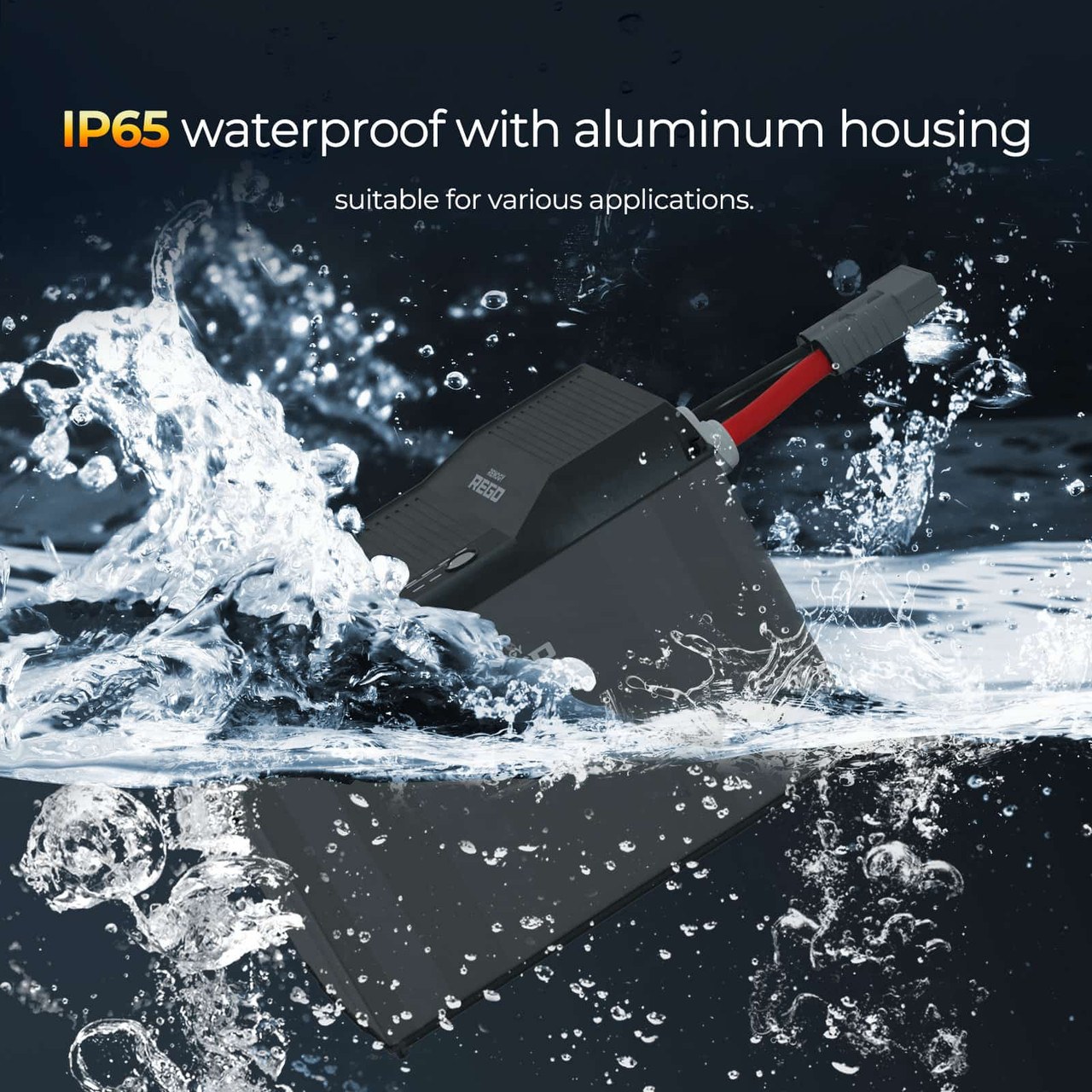

IP65 Waterproof Design
Applicable to More Scenarios，such as yacht, marine and outdoor, etc.
Monitor Your Battery With APP
Bluetooth equipped for easy and convenient monitoring from your smart phone.
ADVANCED CELL DESIGN PROVIDES SUPERIOR POWER DENSITY
Lighter weight, larger capacity battery cells provide less internal resistance and improved charge balance Other Lithium Battery

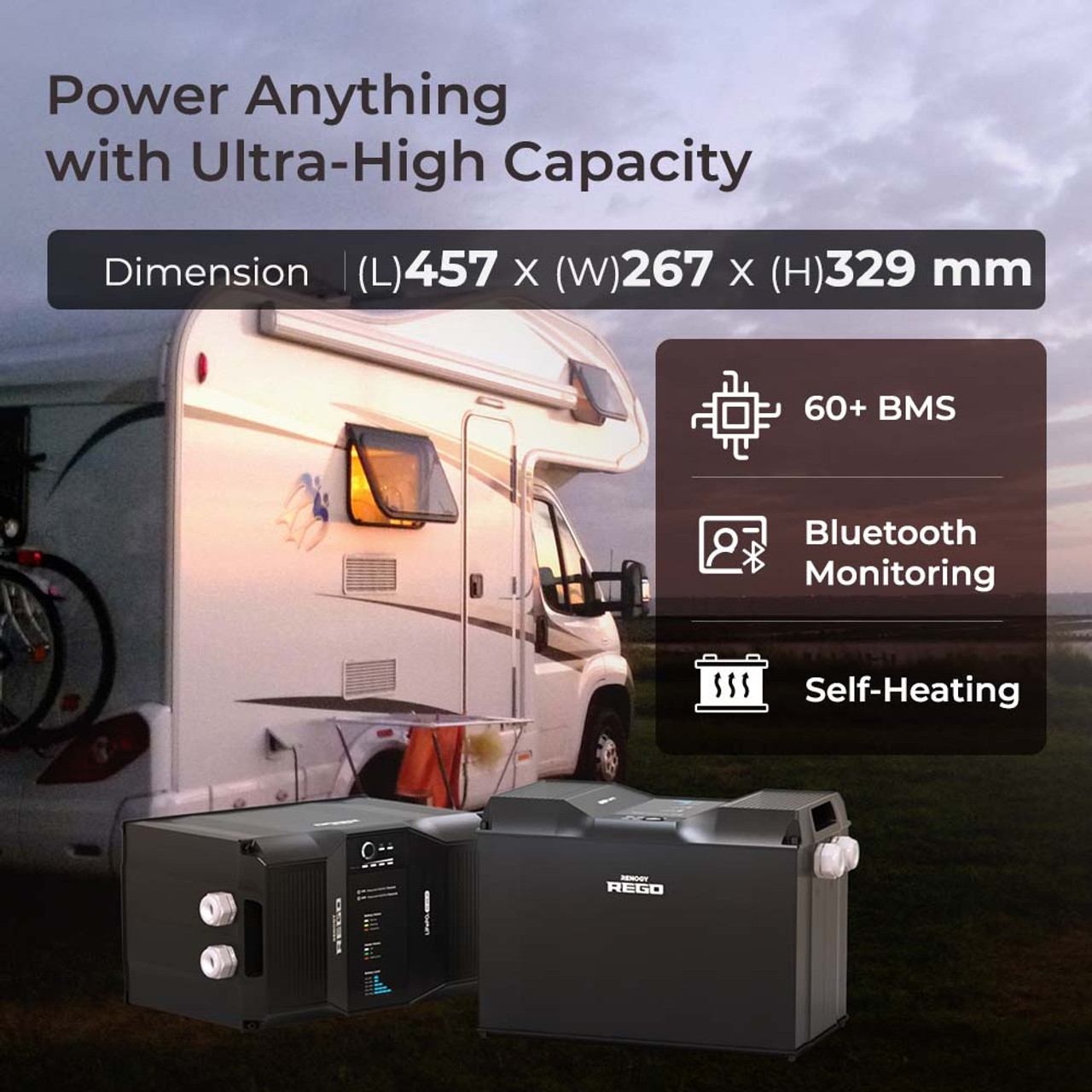

Power Anything with Ultra-High Capacity
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with Anderson Adapter Cables needs to be left at least 7.87 in (200 mm).
Package Includes
12V 400Ah REGO Lithium Iron Phosphate Battery
1 x
Additional information
Specifications
Renogy REGO 12V 400Ah Lithium Iron Phosphate Battery
Battery Type: Lithium Iron Phosphate Nominal Voltage:12.8V
Rated Capacity:400Ah (0.2C, 25°C) Boost Voltage:14.4V
Maximum Charge Current:5A (-20°C~0°C),200A (0°C~15°C/50°C~55°C),300A (15°C~50°C) Maximum Discharge Current:350A (-20°C~60°C)
Cycle Life:>3800 Cycles (0.2C, 25°C, 80% DOD, 80% EOL) Charge Temperature Range:32°F~131°F (0°C~55°C)
Discharge Temperature Range:—4°F~140°F (-20°C~60°C） Storage Temperature Range:Less Than 1 Week: -22°F~140°F (-30°C~60°C),Less Than 6 Months: -4°F~113°F (-20°C~45°C)
Operation Relative Humidity:5%~95% Self-Discharge Rate:≤1.5%/Month (Shelf Mode)
Internal Resistance:<10mΩ Tail Current:20A
Peukert Exponent:1.01 Connection Method: Parallel (Up to 8)
Communication Protocol:RV-C (CAN Communication Ports), MODBUS (Bluetooth Module) Input/Output Connector: Anderson 350 Connector
Housing Material:Aluminum Protection Rating:IP65
Dimensions:18.0 x 13.0 x 10.5 inch (457 x 329 x 267.2 mm) Weight:112.4 lbs. (51 kg)
Warranty Information
Material and Workmanship Warranty 5-year material warranty
Certification
MSDS, UN38.3, FCC
