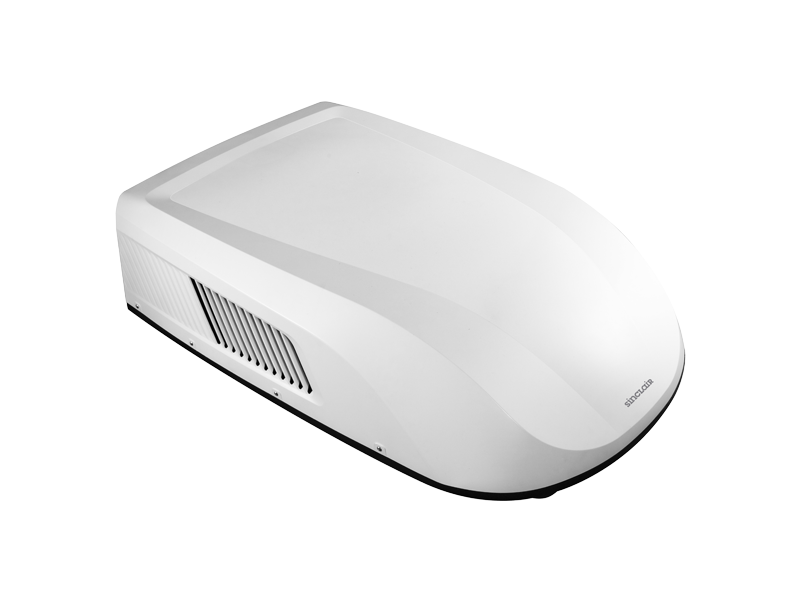

Sinclair 3.5kw Air Conditioning unit – ASV35BS

Sinclair Climate control 3.6kw Air Conditioning unit – ASV35BS.  Ideal for the largest leisure vehicles incuding motorhome makes such as Niesman Bischoff, Carthago, Autotrail & Hymer, all horseboxes or exhibition trailers.
  • Brand new slimline air box design with rose gold vent covers.
  • Highly efficient 3.5Kw cooling output
  • Starts and operates on a 6A RCD
  • Heat pump technology, will heat with an ambient temperature as low as 2 degrees.
  • 4.6A consumption at full cooling
  • Great value for money
  • Units can be controlled via Wi-Fi, remote control or manually.
  • Imported by Conrad Anderson – please contact us for trade pricing.
  • Ideal for Motorhomes, Horseboxes and Exhibition trailers

Orders are shipped on a pallet to any UK business address or collected from our workshop

£2,199.00

Product total
Options total
Grand total

Description

Cools or heats vehicles with minimum electricity consumption and minimum starting current.

  • Clean and friendly design
  • Possibility of control via Wi-Fi
  • Manual and remote control
  • Powerful cooling, heating and dehumidification
  • Quiet operation
  • Closable air outlets
  • Operating temperature -5-46°C

Technical Specifications

Parameter Details
Performance Cooling / heating: 3.6 / 3.4 kW
Power supply 220 – 240 / 1 / 50 V / Ph / Hz
Power consumption Cooling / heating: 1.3 / 1.2 kW
Max. input power Cooling / heating: 1.6 kW
Current Cooling / heating: 4.7 / 4.2 A
Max. current 6.6 A
ER 2.8 W/W
BRAID 2.7 W/W
Air flow (Indoor unit) 330 / 250 / 200 m3/h
Air flow (Outdoor unit) 600 m3/h
Sound pressure level at 1 m (Indoor unit) 54 / 48 / 43 dB(A)
Sound pressure level at 1 m (Outdoor unit) 54 dB(A)
Acoustic power level (Internal) 65 / 59 / 54 / 49 dB(A)
Acoustic power level (Outdoor) 75 / 65 dB(A)
Dehumidification performance 1.0 l/h
IP protection (Outdoor) IPX4
Mounting hole in the roof 400×400 mm
Roof thickness 30 – 80 mm
Refrigerant / quantity / eq. CO2 R32 / 0.47 / 0.32 type / kg / t
Dimensions (Indoor unit) 485 x 49 x 610 mm
Dimensions (Outdoor unit) 720×283×1077 mm
Package dimensions (Indoor unit) 550×112×678 mm
Package dimensions (Outdoor unit) 786×350×1149 mm
Net / gross weight (Indoor unit) 2.7 / 4.0 kg
Net / gross weight (Outdoor unit) 35.0 / 44.0 kg
Range of adjustable temperatures 16~30 °C
Operating temperature range (Cooling) 18 ~ 46 °C
Operating temperature range (Heating) -5 ~ 24 °C

Additional information

Weight 32 kg
