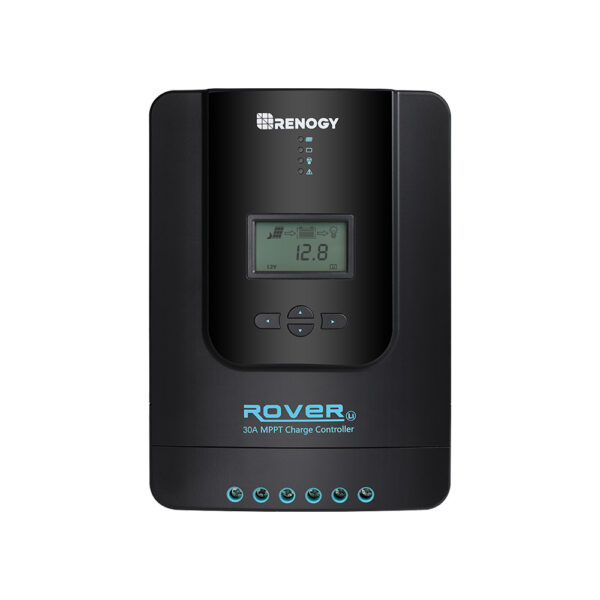

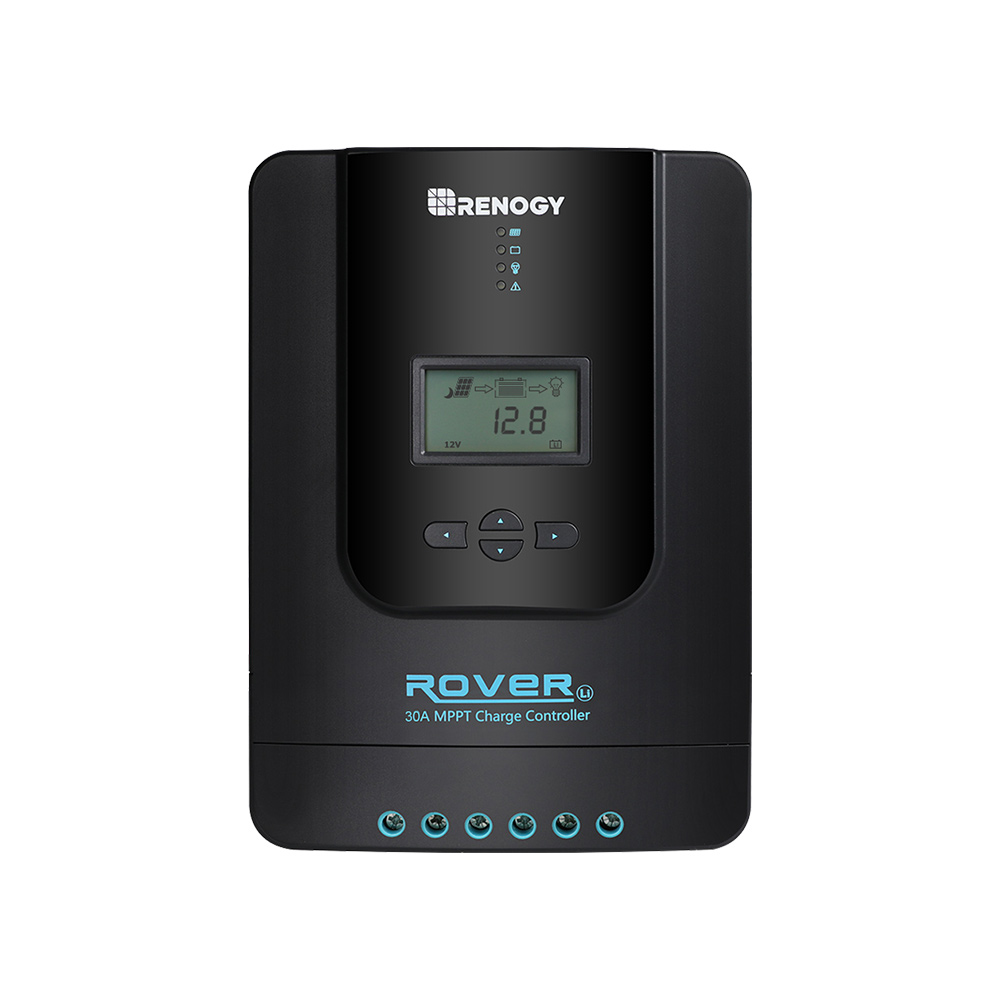

RENOGY ROVER 30 AMP MPPT SOLAR CHARGE CONTROLLER
Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)

Rated Charge Current: 30A

Max. PV Input Voltage: 95 VDC

Max. PV Input Power: 12V/400W, 24V/800W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Max Battery Voltage: 32V

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

Environmental Data
Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C (-31°F to 167°F)

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

opc:

Mechanical Specifications
Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in

Weight: 4.4 lbs / 2.0 kg

Max. Terminals Size: 8 AWG / 10mm²

opc:

Certifications
CE: YES

FCC Class B Part 15 Compliant: YES

Warranty
Material and workmanship warranty: 2 Year

opc:

RENOGY BT-2 BLUETOOTH MODULE
Compatibility
Compatible MPPT Charge Controller: RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60/ RNG-CTRL-RVR100

Compatible App: Renogy DC Home App available in both the App Store and Google Play

Mechanical Specifications
Communication Range: ≤82ft (25m)

Cable Length: 16.4 ft (5.00m )

Dimensions: 9.38 x 6.78 x 3.05 in (238 x 172 x 77 mm)

Weight: 4.58oz (130g )

Operation Temperature: -4°F to 185°F (-20℃~85℃)

opc:

Operation Specifications
Communication Protocol: RS485

Port Type: RJ45

Input Voltage: 5V

Protection Grade: IP54

Standby Power Consumption: 0.04W

Operating Power Consumption: 0.05W

Serial Baud Rate: Fixed Baud Rate 9600bps

opc:

Certifications
FCC Class B Part 15 Compliant: YES

opc:

Warranty
Material and workmanship warranty: 2 Year
