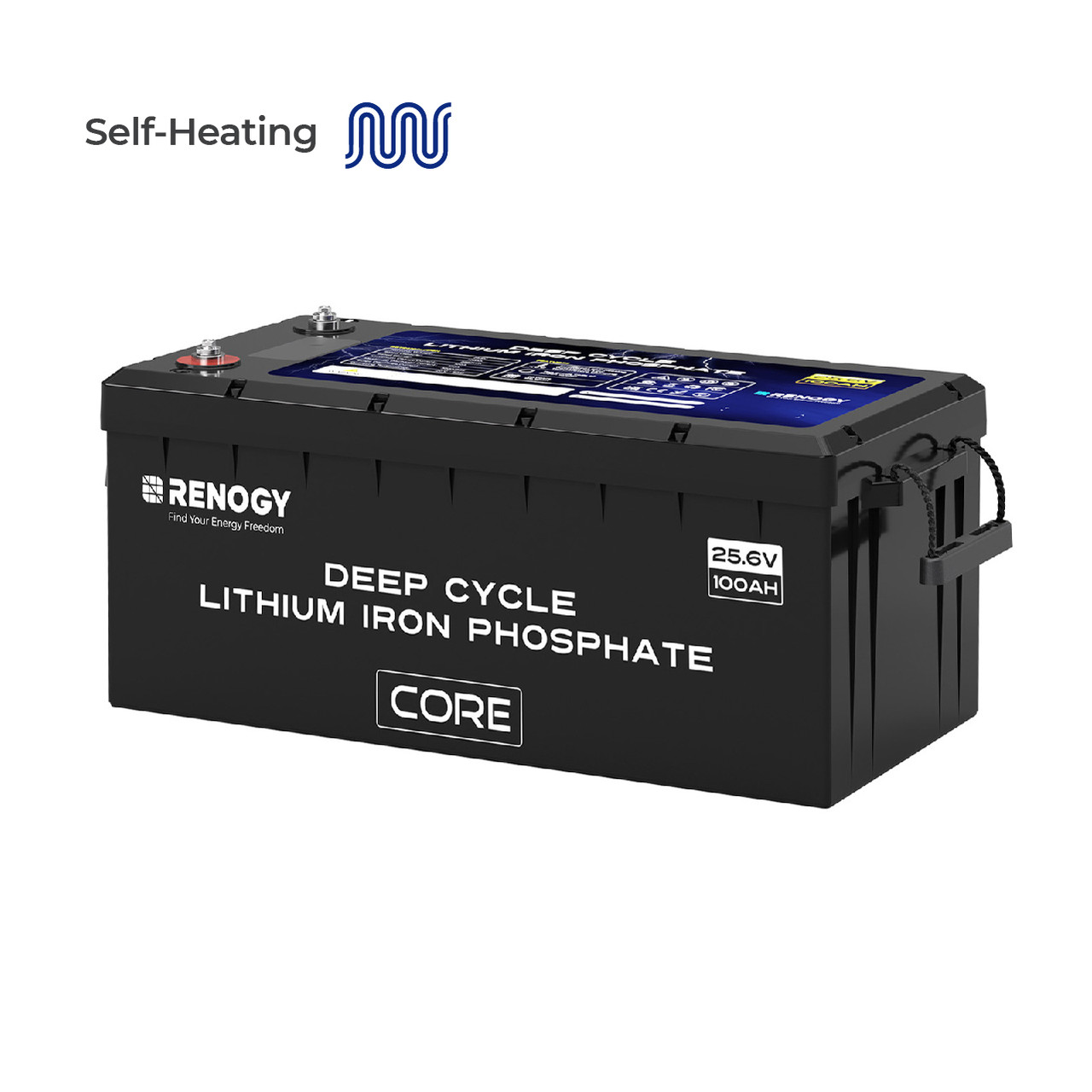

Renogy Deep Cycle 24V 100Ah Core lithium battery with Self-heating function – Currently unavailable

• Industry-leading 200W self-heating for peak cold-weather performance.
• Grade A EV-class cells with 5000 cycles at 80% DOD for reliability.
• Low-temp cut-off allows safe charging & discharging, protecting battery.

Description

Light & Compact

Cruising Made Easy with Lighter Power

The automotive-grade, Grade A battery cells reduce the overall weight of your 24V batteries, ensuring a smoother and faster cruising experience

High Energy Density

Efficient Backup Power for Peace of Mind

With over 5 times power condensed per kilo, Renogy 24V 100Ah LiFePO4 Battery offers more power in a similar footprint. Be power-ready before emergencies. Not after.

10X Longer Lifetime

Longer Battery Life. Lasting Outdoor Fun.

Grade-A prismatic cells boast 5000 cycles at 80% depth of discharge – that’s 10 times longer than traditional lead-acid batteries. With this longevity, enjoy a worry-free 10-year battery lifespan for extended and uninterrupted adventures on the road.

24V vs. 2 x 12V
Why a 24V LiFePO4 Battery?

Enjoy a cleaner, more efficient setup with a Renogy 24V 100Ah LiFePO4 battery – that means 30% less wiring needed and pre-selected cells featuring balanced voltage, Plus, the programmable BMS ensures automatic cell balancing during charging, leaving behind the days of dealing with messy wires and unbalanced cells that come with 2 * 12V 100Ah batteries.

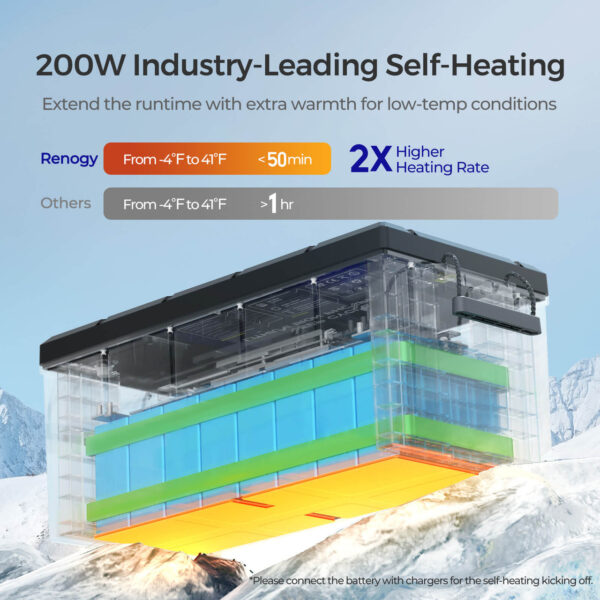

Extra Warmth. Extended Runtime.

Featuring the highest 200W heating elements in the industry, this 24V 100Ah LiFePO4 Battery heats up 2X faster than competitors. Make sure the charge current stays above 10A for the self-heating to activate.

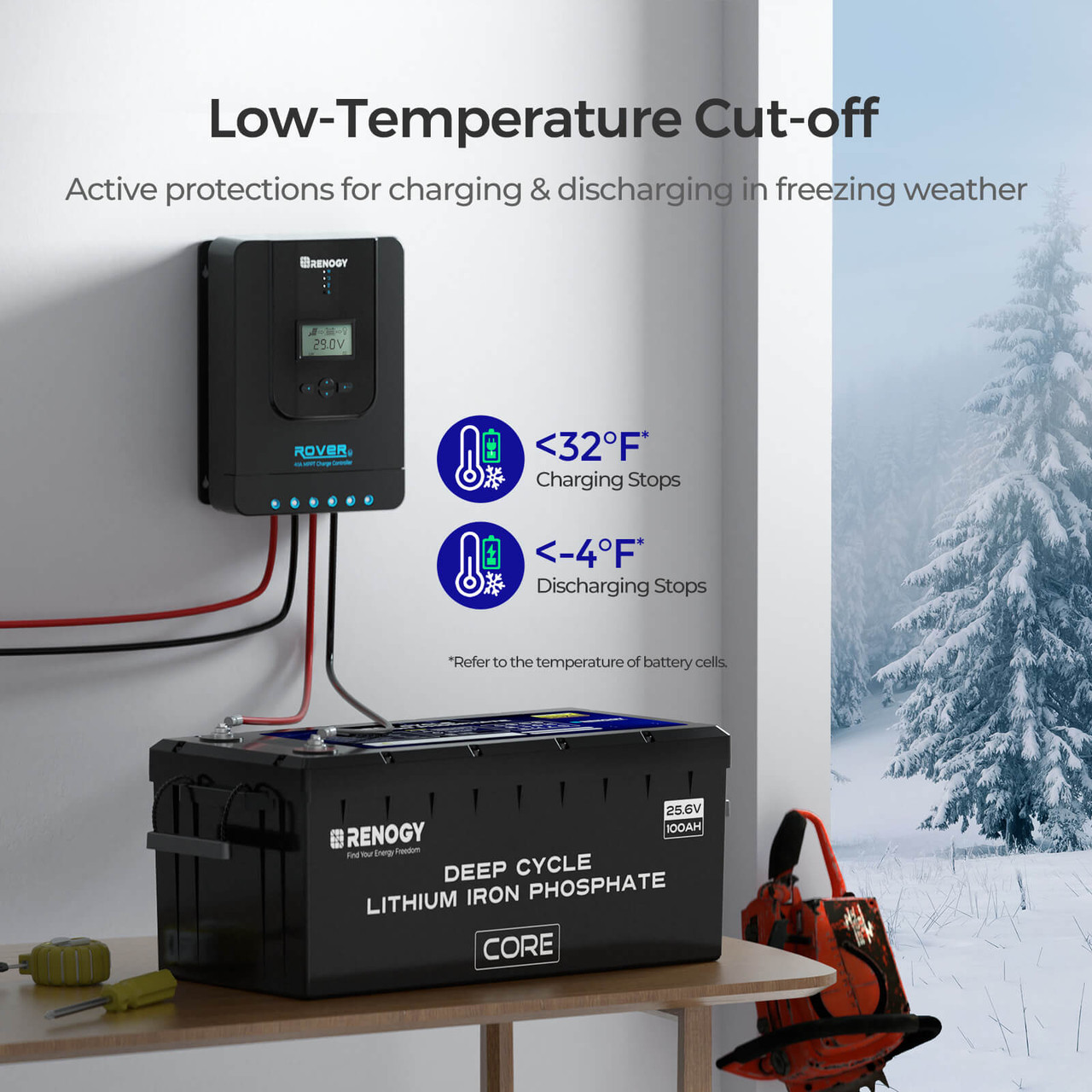

Reliable Power in Winter

When temperatures drop, the low-temperature charging and discharging protection kicks in, cutting off power to your 24V battery before it can damage the cells permanently.

Seamless Power Expansion

Expandable Power up to 40.96kWh

Maximize your backup power capacity to 40.96kWh by connecting up to 16 batteries in series-parallel. Keep your systems running smoothly even during extended blackouts or high-demand projects.

Wired in Series/Parallel

Ways to Connect

The Renogy 24V 100Ah LiFePO4 Battery offers flexible power setups. Wire up to 8 batteries in parallel or 2 in series to suit your needs.

Dimensional Reference Guide

Before installing the battery, please note that you need to leave 1.97-3.94 in (5-10 cm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (20 cm).

Trusted Performance

Built to meet stringent performance standards, the Renogy 24V 100Ah LiFePO4 Battery delivers long-lasting, reliable power you can trust.

Additional information

Specification

Renogy 24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
Battery Type: Lithium Iron Phosphate

Nominal Voltage: 25.6V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 20.0V to 29.2V

Charge Voltage: 29.0V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Peak Discharge Current: 300A @ 5s

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: '-13°F to 149°F (-25C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)

Terminal Bolt Size: M8 x 1.25 x 15 mm

Recommended Terminal Torque: 10 N·m

Housing Material: ABS & PC

Protection Rating: IP65

Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)

Weight: 46.3 lbs. (21.0 kg)

Accessories
Long Terminal Bolts (2): M8

opc:

Warranty
Material and Workmanship Warranty: 5 Years

Certifications: UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA
