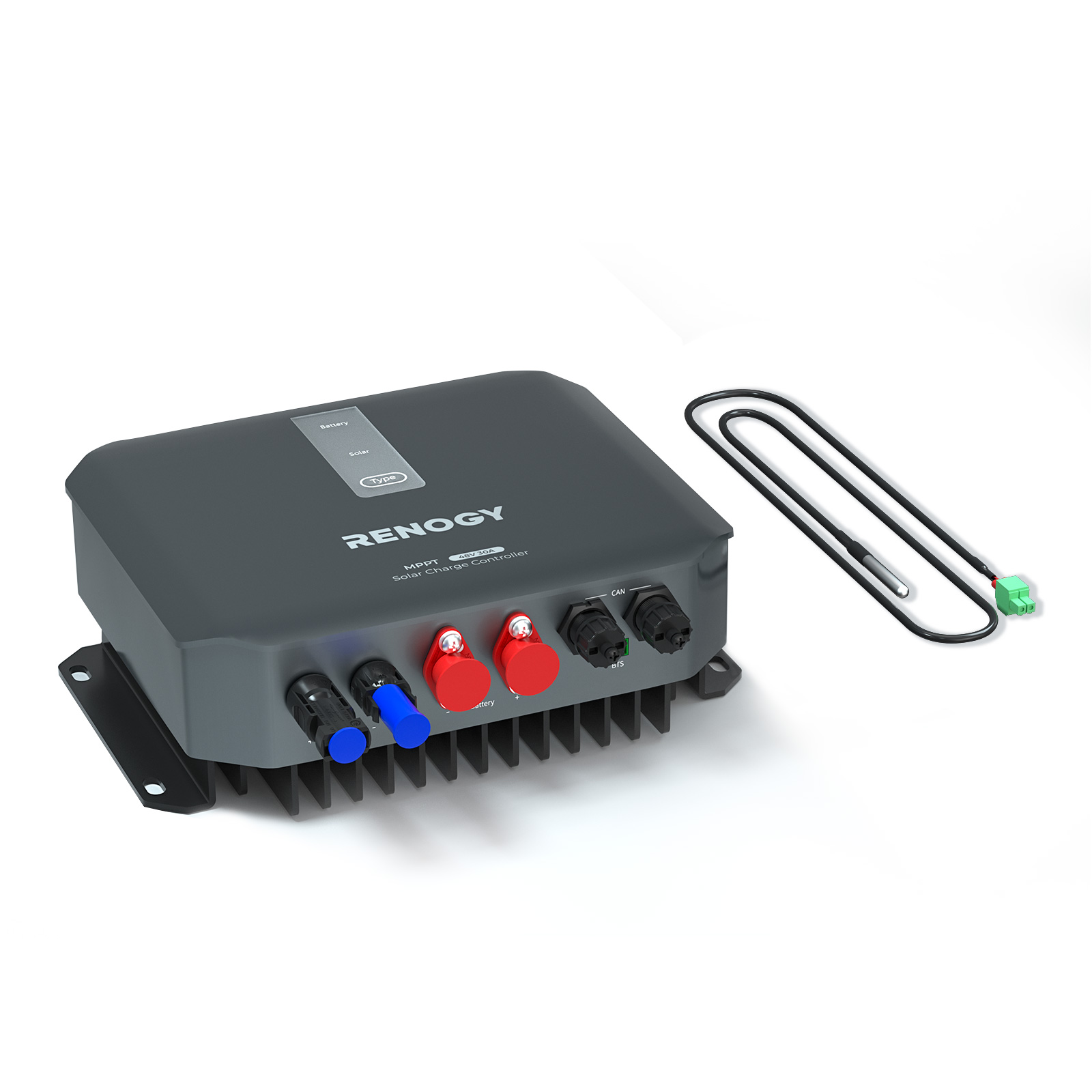

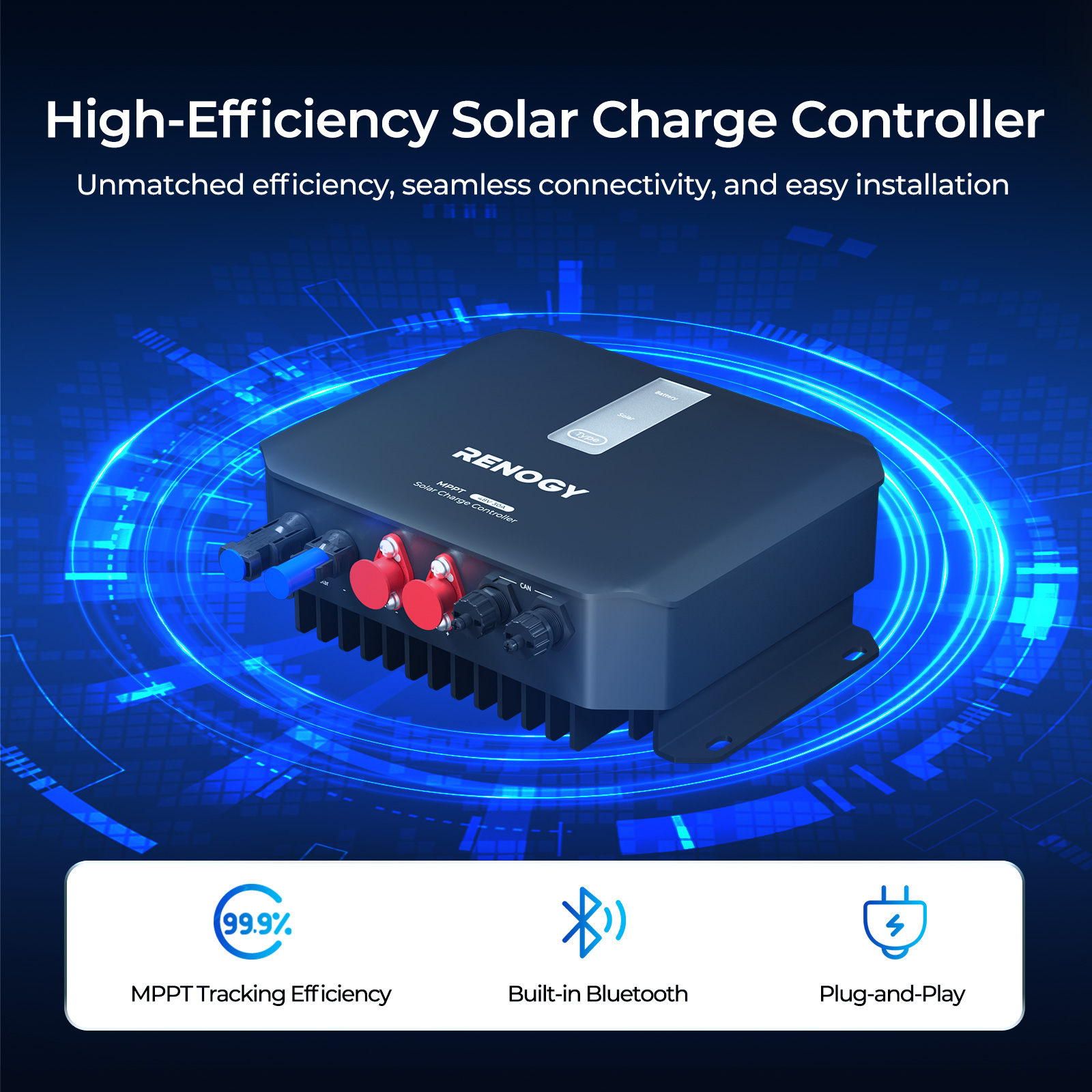

RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller
The REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller offers outstanding performance with up to 99.99% tracking efficiency, 97% charging efficiency, and built-in Bluetooth for effortless monitoring and control.

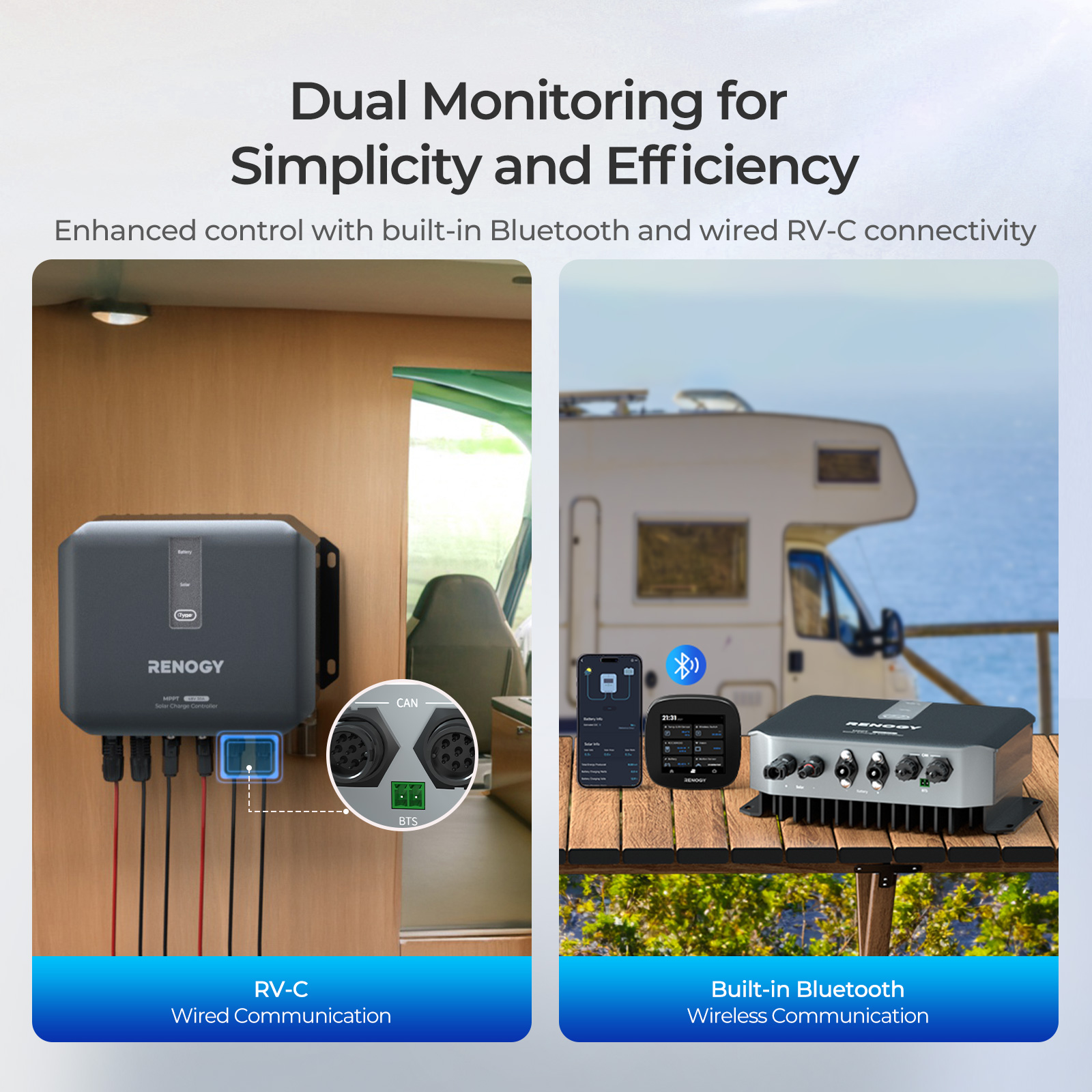

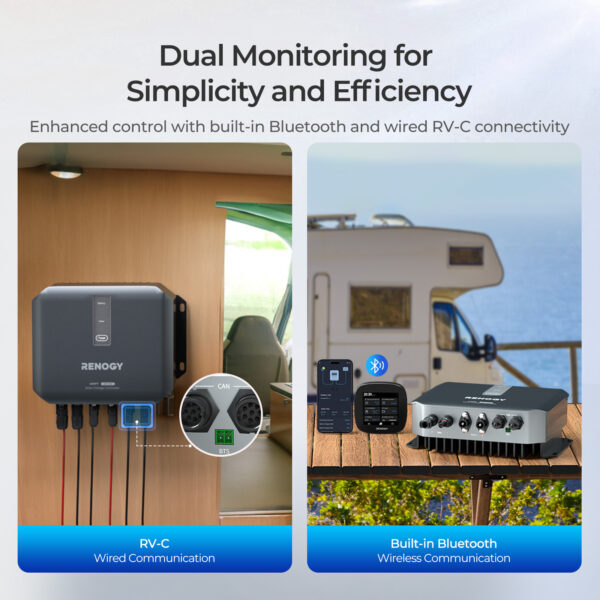

Dual Monitoring, Simple yet Efficient
The REGO 30A Controller takes monitoring to the next level with RV-C and Bluetooth connectivity, allowing you to track daily power generation with precision. Plus, its real-time clock captures a full year of data, giving you valuable insights into your solar performance anytime.

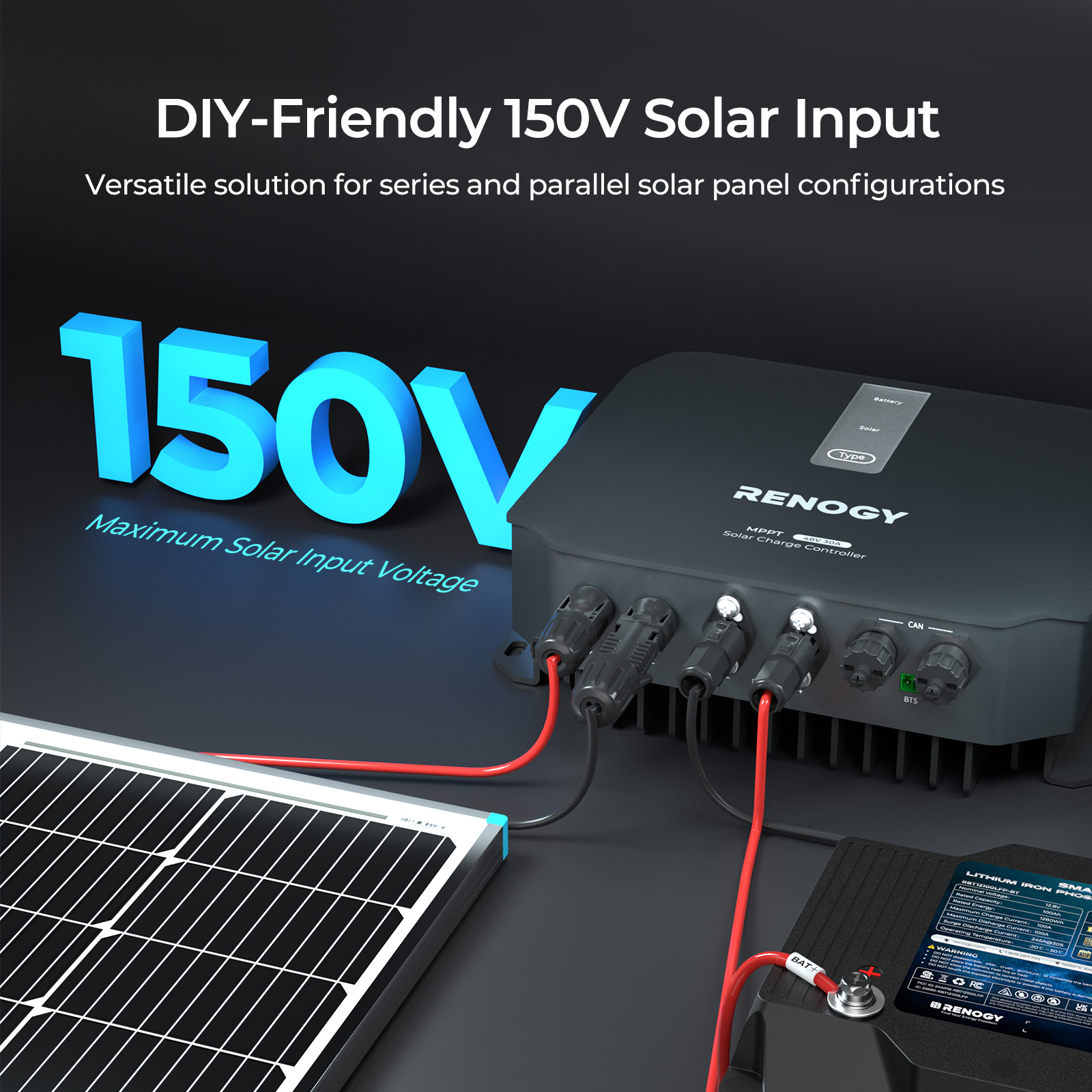

Unleashing the Potential for High-Power DIY Systems
By supporting up to 150V input voltage, the controller enables versatile series and parallel configurations of solar modules, broadening your DIY options.

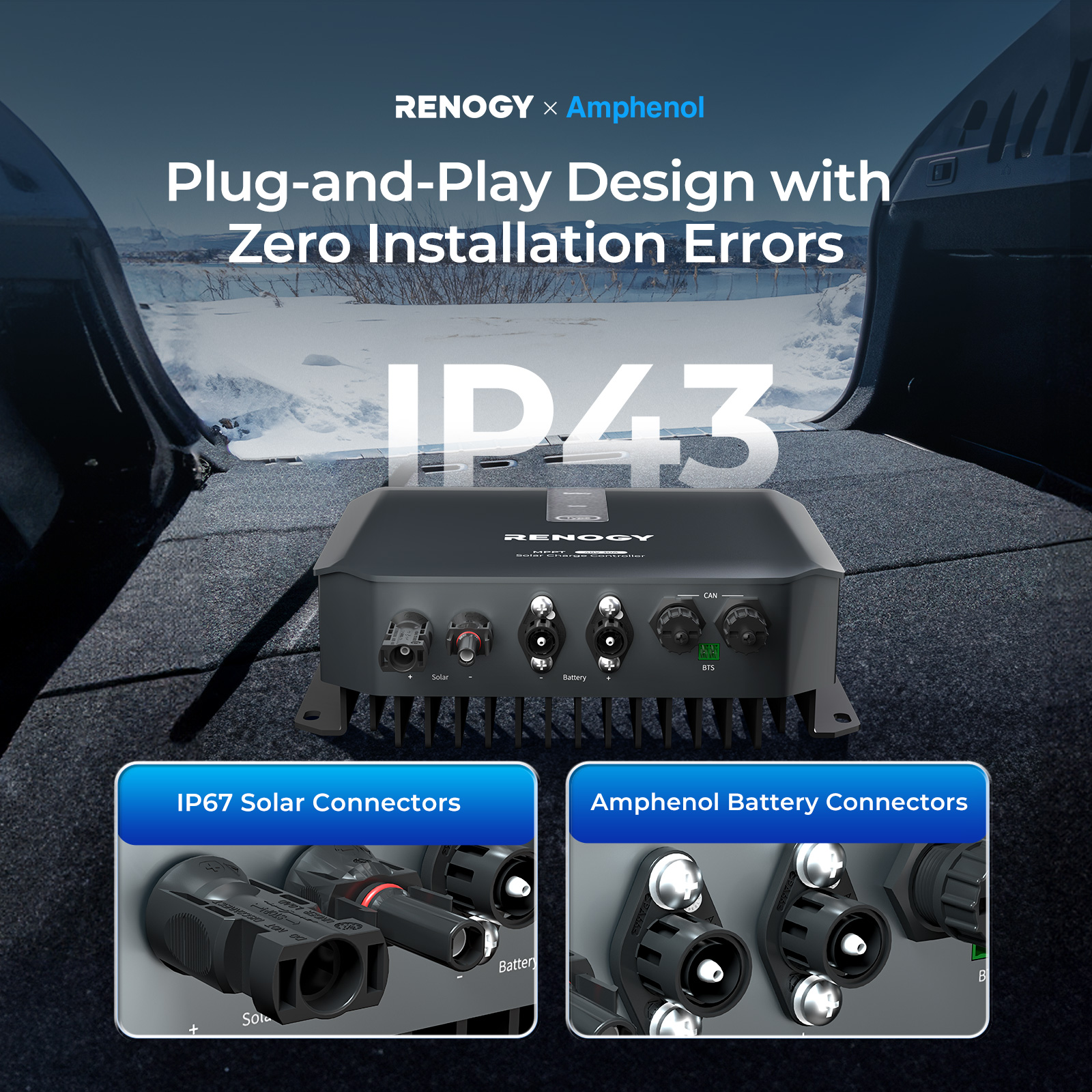

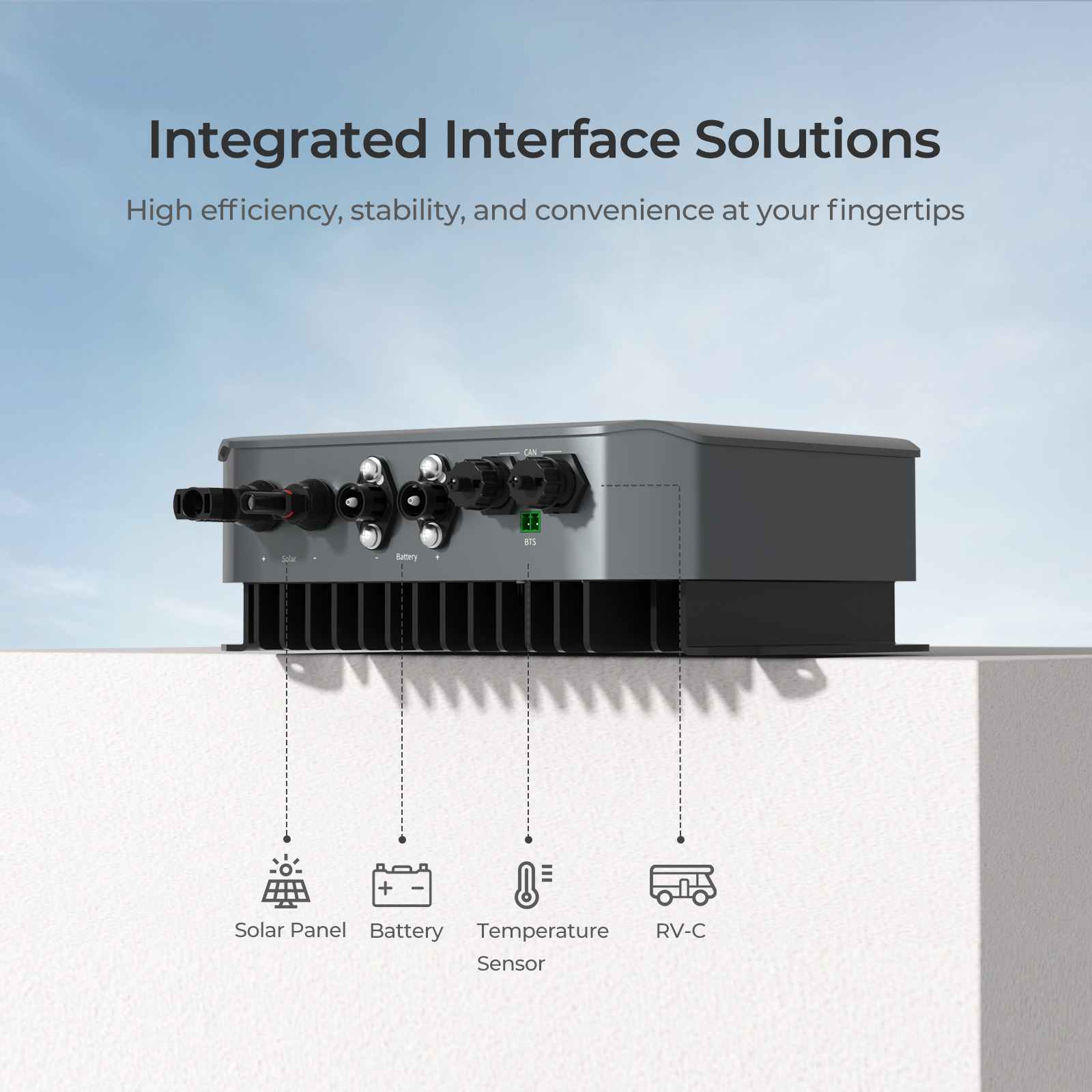

Seamless Installation
Enjoy hassle-free plug-and-play connections with Amphenol and IP67 solar connectors, designed for easy operation and fast installation. These secure connections eliminate the risk of loosening or slipping, ensuring reliable performance.
Unmatched Stability in Extreme Conditions
The REGO controller maintains full output current at 45°C (113℉) and 3000m altitude, ensuring consistent performance and exceptional heat dissipation for reliable operation.
Comprehensive Protection for Your Energy System
With 13 built-in protection features, this controller guarantees both system safety and efficiency. It also provides customizable settings, allowing for optimal performance across a range of conditions.

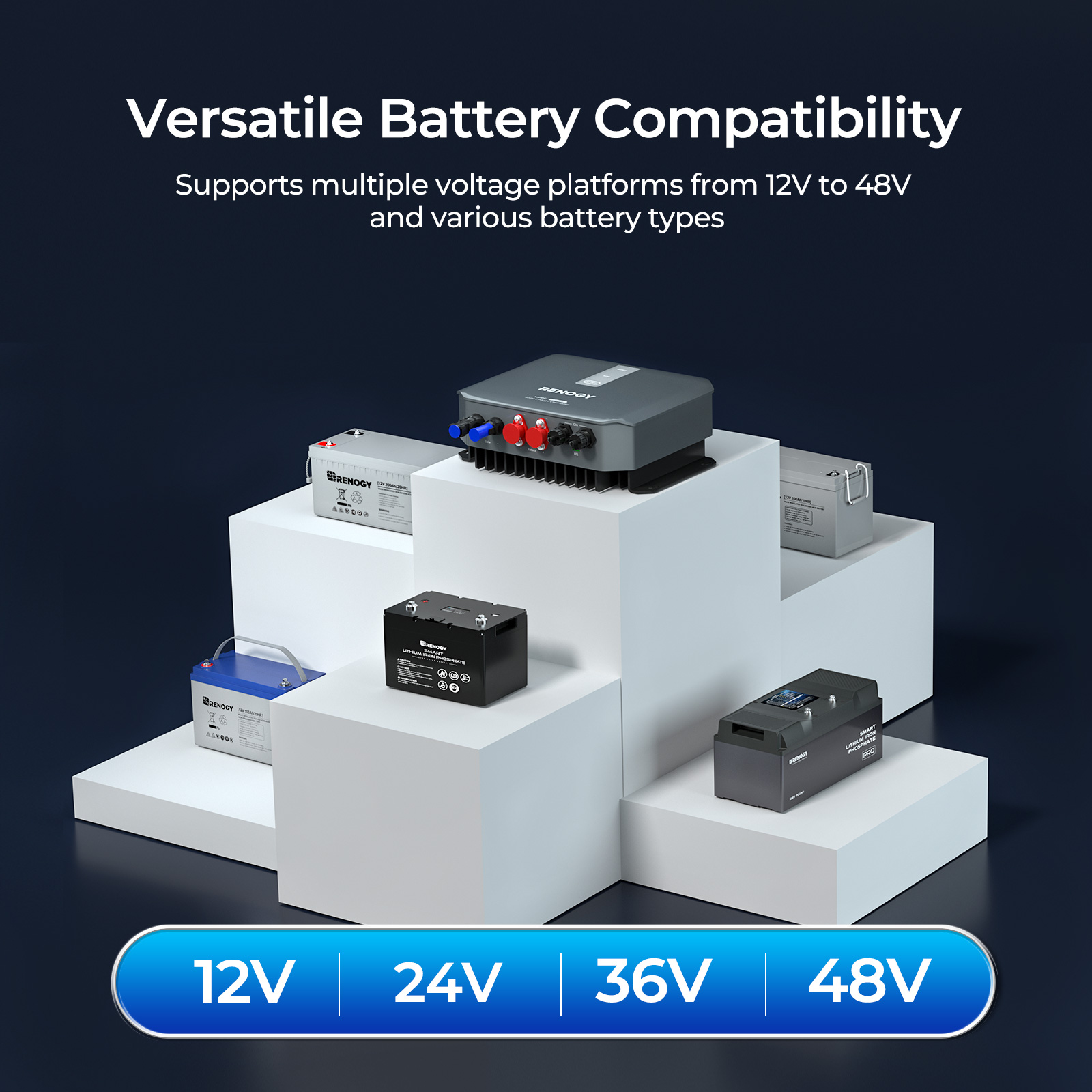

Versatile Voltage Compatibility
The REGO 30A Controller is compatible with 12V to 48V systems and automatically detects battery voltage, making it an ideal choice for RVs, homes, and various off-grid applications.
Effortless Battery Type Selection
The battery type can be easily selected between SLD/AGM, GEL, FLD, LI, or USER mode using the Battery Type Setting button. You can also adjust this setting conveniently through the DC HOME APP.
IP43 for Humid Environments
The integrated design boosts the protection level to IP43, making it ideal for use in a wide range of environments.
Over-the-Air Update
With built-in OTA functionality, you can easily perform remote software upgrades. It also includes a rollback mechanism for secure usage.
Additional information
Specifications
RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller
Charger Data
Rated Battery Input Voltage
Non-Lithium :12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)
Battery Operating Voltage Range
8V to 64V
Rated Charge Current
30A
Maximum Solar Input Power
440 W (12V Battery);880W (24V Battery)
1314 W (36V Battery);1700W (48V Battery)
Maximum Solar Input Voltage (Voc)
150VDC
Power Consumption
<0.57W (12V Battery)
<0.67W(24V Battery)
<0.97W (36V Battery)
<1.34W(48V Battery)
MPPT Tracking Efficiency
>99%
Conversion Efficiency
>97%
Temperature Compensation
'-3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V; no compensation (Lithium)
Charger Algorithm
3-stage Lead Acid, Bulk, Boost, Float, Equalize* 2-Stage Lithium, Bulk, Boost
Charger Preset
AGM/Gel/SLD/FLD/LI (four cell groups) and User Mode
GENERAL DATA
Model
RCC30REGO
Terminal Size
/
Grounding
Common Negative
Communication
RS485;RENOGY CAN
Operating Temperature
-31°F to 149°F / -35°C to 65°C
Storage Temperature
-31°F to 176°F / -35°C to 80°C
Humidity
0%~95% RH
Cooling
Heat Sink
Enclosure Rating
IP43

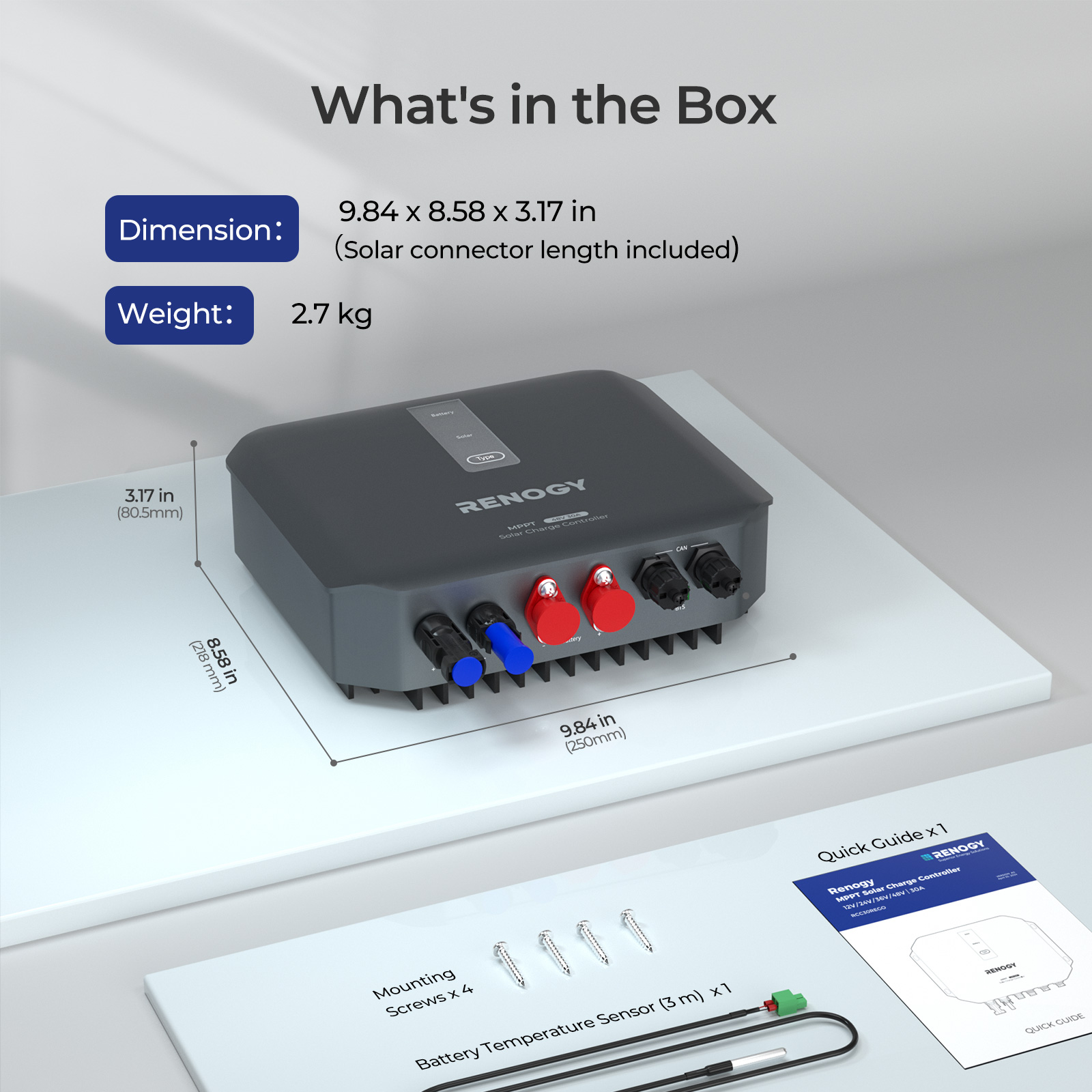

Dimensions (LxWxH)
9.84 x 7.40 x 3.17 in / 250 x 188 x 80 mm
Weight
2.7 kg /5.95 lb

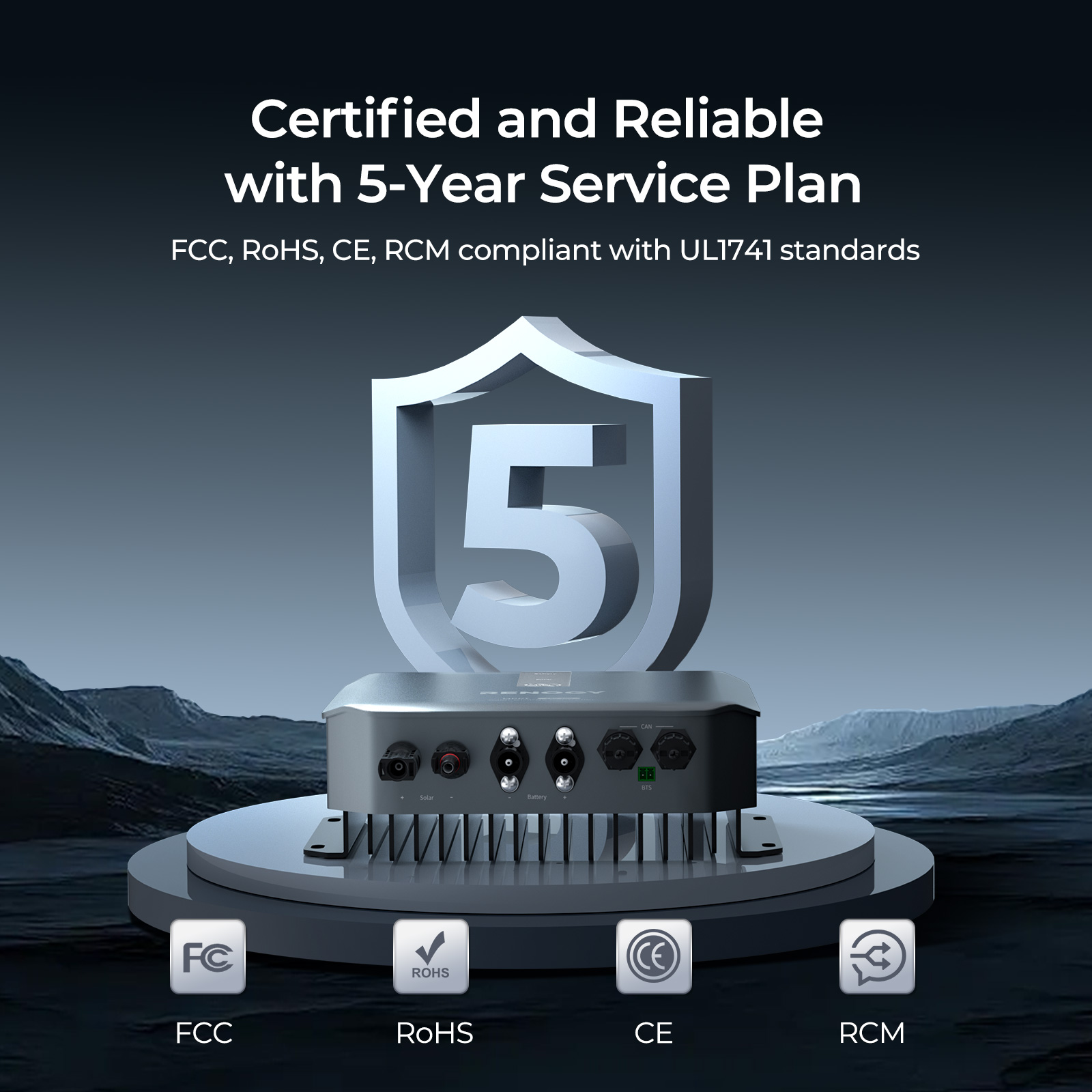

Regulatory and Safety Specifications
FCC, RoHS, CE, SAA, RCM, and UL 1741
WARRANTY INFORMATION
5-year material warranty
