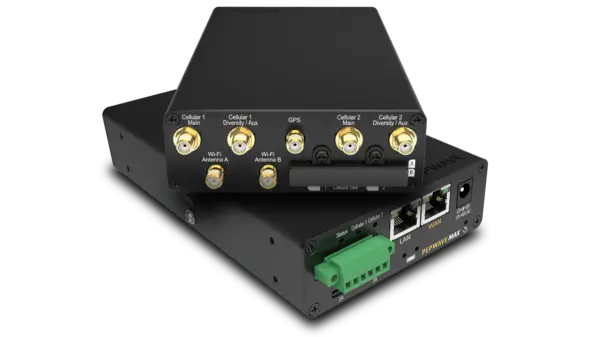

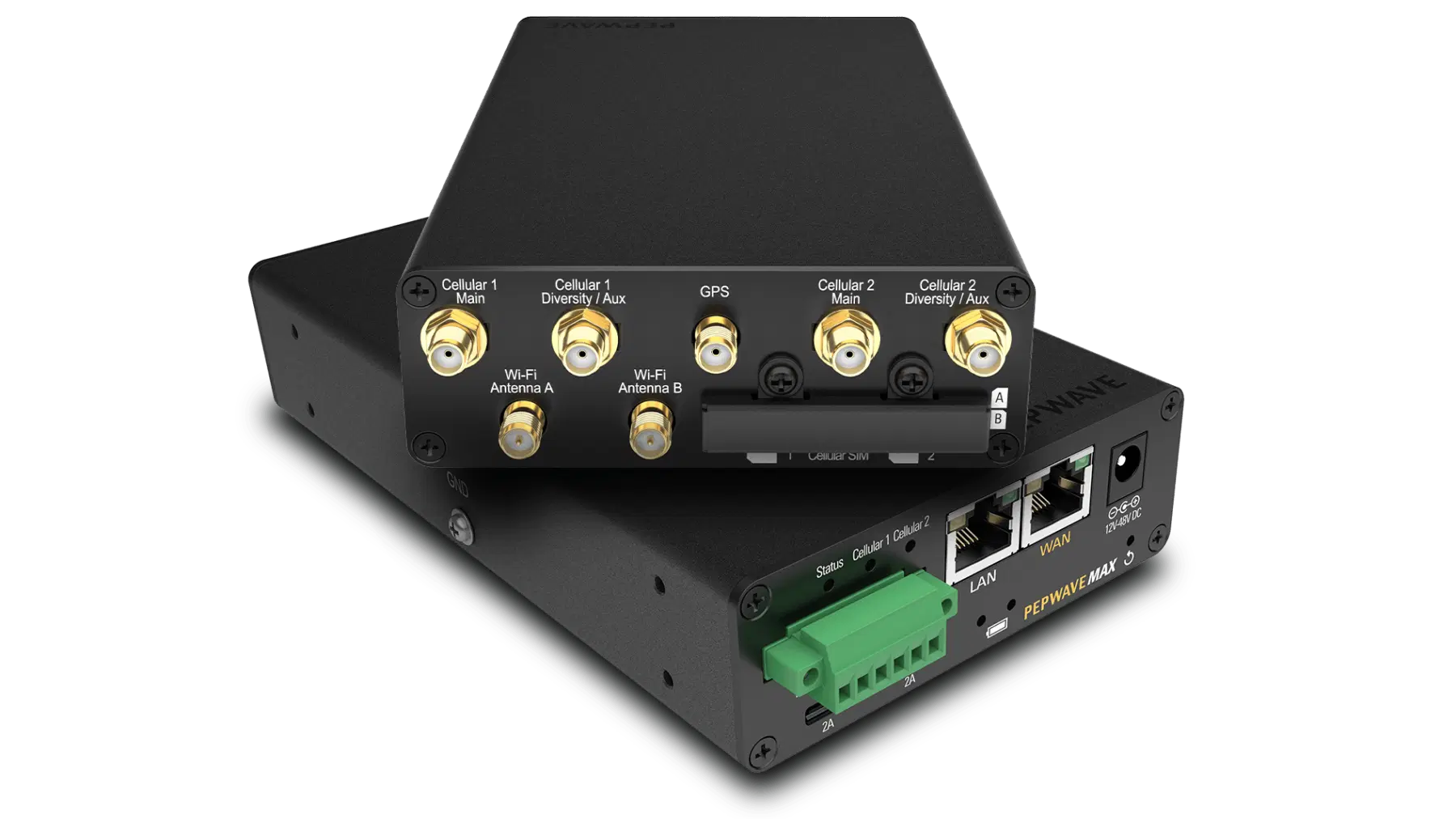

Pepwave Max Transit LTE – Advanced DUO

  • Dual Modem Configuration: Enjoy two simultaneous LTE cellular connections for enhanced reliability and performance.
  • Category 6 LTE Advanced Modem: Supports the latest LTE bands and many legacy 3G bands, ensuring connectivity in various regions.
  • Simultaneous Dual Band WiFi: Create multiple networks in both 2.4GHz (for extended range) and 5GHz (for faster speeds) within your vehicle, yacht, or motorboat. Optimize and balance your devices based on their requirements.
  • Embedded Wireless Controller: Easily expand your maritime networks or accommodate more users by adding external wireless access points. The integrated wireless controller efficiently manages additional access points, such as the Wireless AP One, from a central console.
  • Automatic Failover and Multi-SIM Support: Stay connected at all times with automatic failover switching and multiple SIM slots, compatible with various carriers.
  • High Router Throughput: With a maximum router throughput of 400Mbps, this router is designed to support up to 150 users.

£1,629.00

Description

Welcome to PEPWAVE Caravan & Motorhome Connectivity

We have partnered with PEPWAVE to bring the very best in caravan & motorhome-specific LTE WiFi routers, combined with their range of high-performance omnidirectional externally mounted roof antennas, into the touring market. Our goal is to keep our customers connected, whether they are in the UK or touring throughout Europe or beyond.

PEPWAVE is a renowned provider of cellular connectivity for various applications, including fleets of vehicles, superyachts, commercial shipping, emergency services, and now caravan and motorhome owners. PEPWAVE also specializes in multi-WAN bonding technology, allowing routers to combine multiple network connections for increased speed, performance, and enhanced failover redundancy. The PEPWAVE MAX Transit Duo, in particular, has earned a strong reputation as an excellent choice for European touring vehicles and inland waterway watercraft.

Reliable internet connectivity enhances the enjoyment of your travels, providing additional entertainment options for friends and family, such as music streaming, video and TV streaming, news updates, and social media interaction. It also supports secure corporate communications, including VOIP, email, and messaging. However, achieving reliable internet connectivity in a caravan or motorhome presents specific challenges, and this is where we come in to help.

Pepwave Max Transit LTE-Advanced DUO – Specifications

Feature Specification
Embedded 4G LTE/3G 2
SIM Card Size Mini-SIM (2FF)
Redundant SIM Slots Yes

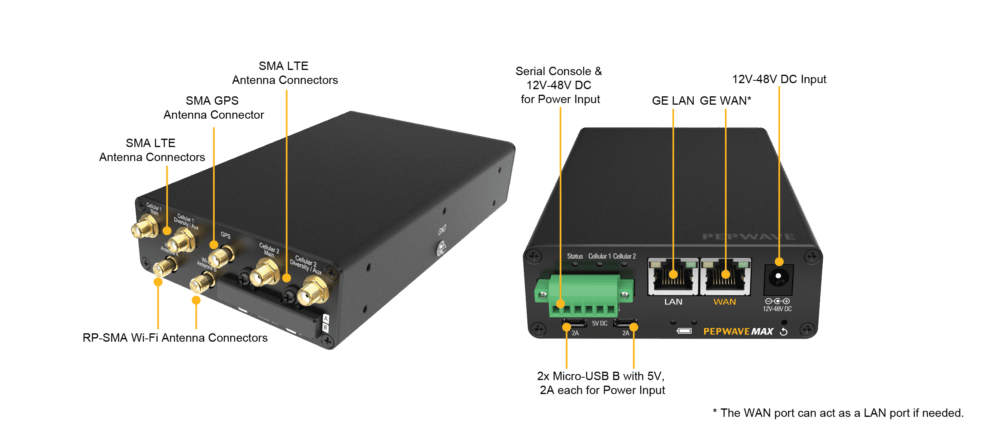

Ethernet WAN Ports 1 (GE) *
Ethernet LAN Ports 1 (GE)
Recommended Users 150
Router Throughput 400Mbps
Wi-Fi Standard 802.11ac/a/b/g/n 2×2 MIMO
Maximum number of SSID 16
Transmit Power (2.4GHz) | (5GHz) 19dBm | 21dBm
Simultaneous Dual-Band Wi-Fi AP Yes
Wi-Fi as WAN Yes
High Availability Yes
WAN as LAN Yes
Web Blocking Yes
Content Filtering Blacklist Lite
PepVPN Yes
SpeedFusion Hot Failover Yes
SpeedFusion WAN Smoothing No ^
SpeedFusion Bandwidth Bonding No ^
Number of PepVPN/SpeedFusion Peers 2/5 &
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 100Mbps | 60Mbps
Number of IPsec Tunnels 5
Enclosure Indoor Metal
Terminal Block Power Connector for Mobile/Vehicular Deployment Yes
Dimensions (Height x Width x Depth) 6.3 x 3.8 x 1.3 inches | 160 x 97 x 33.5 mm
Weight 1.3 pounds | 590 grams
AC Adapter AC Input 100V – 240V / DC Output 12V, 2A
Power Input 2x Micro-USB B with 5V, 2A each
Power Consumption 18W (max.)
Operating Temperature -40° – 149°F | -40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications – FCC, CE, RoHS
– E-Mark
– EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
– EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock
– EN 61000 Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

* The WAN port can act as a LAN port if needed.

^ Feature is available as an add-on license OR PrimeCare model.

& 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complimentary for the first year.
