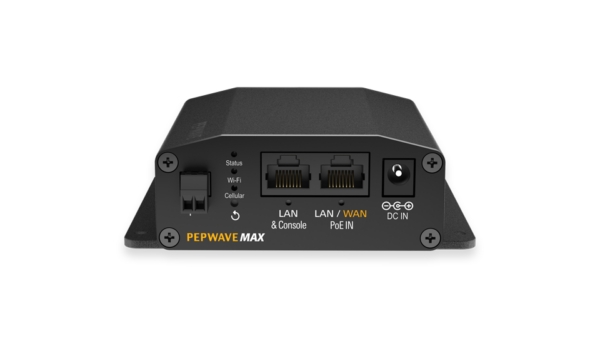

Pepwave Max BR1 Mini LTE – Advanced Router

The Pepwave Max BR1 Mini LTE-Advanced is the smallest router within our Pepwave lineup. Its compact size doesn’t compromise on performance or features.

  • Built-in 3G/4G/LTE modem with support for major cellular data providers in Europe and North America.
  • Compact LTEA modem supporting the latest 4G LTE bands while providing limited 3G support for legacy networks.
  • Automatic failover switching (additional Failover License required, purchased separately).
  • Single Sim.


£660.00

Description

Welcome to PEPWAVE Caravan & Motorhome Connectivity

We have partnered with PEPWAVE to bring the very best in caravan & motorhome-specific LTE WiFi routers, combined with their range of high-performance omnidirectional externally mounted roof antennas, into the touring market. Our goal is to keep our customers connected, whether they are in the UK or touring throughout Europe or beyond.

PEPWAVE is a renowned provider of cellular connectivity for various applications, including fleets of vehicles, superyachts, commercial shipping, emergency services, and now caravan and motorhome owners. PEPWAVE also specializes in multi-WAN bonding technology, allowing routers to combine multiple network connections for increased speed, performance, and enhanced failover redundancy. The PEPWAVE MAX Transit Duo, in particular, has earned a strong reputation as an excellent choice for European touring vehicles and inland waterway watercraft.

Reliable internet connectivity enhances the enjoyment of your travels, providing additional entertainment options for friends and family, such as music streaming, video and TV streaming, news updates, and social media interaction. It also supports secure corporate communications, including VOIP, email, and messaging. However, achieving reliable internet connectivity in a caravan or motorhome presents specific challenges, and this is where we come in to help.

Pepwave Max BR1 Mini LTE-Advanced Router Specifications

Feature Details
WAN Interface 1x 10/100M Ethernet Port
1x Embedded LTE Modem with Redundant SIM Slot
LAN Interface 1x 10/100M Ethernet Port
Wi-Fi Interface 802.11b/g/n Wi-Fi WAN or AP
PepVPN Yes
SpeedFusion Hot Failover Available as an additional feature
SpeedFusion WAN Smoothing Available as an additional feature
Drop-in Mode Yes
Number of PepVPN SpeedFusion Peers 2/5 *
PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) 40 Mbps / 20 Mbps
Number of IPsec Tunnels 5
Router Throughput 100 Mbps
Recommended Users 60
LTE Modem Downlink/Uplink Datarate: 150Mbps/50Mbps
LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps
Cellular and GPS Antenna Connector 2x SMA Antenna Connectors
1x SMA GPS Antenna Connector
1x Wi-Fi Connector
Power Input DC Jack/Terminal Block: 12V – 28V DC
Passive PoE Input (WAN Port, 12V – 28V DC)
Power Consumption 12W (max.)
Dimensions 4.1 x 4.3 x 1.2 inches
105 x 110 x 30 mm
Weight 0.54 pound
244 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Certifications – FCC, CE, RoHS, E-Mark, IC
– EN 61373: Shock and Vibration Resistance
– EN 50155: Railway Applications – Electronic Equipment used on Rolling Stock
– EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty


Product Enquiry
