Description

Lightweight Portable Solar Suitcase (220W)

The most lightweight and durable solar suitcase with robust kickstands.

Portable Power Anywhere

Please ensure that the DC input voltage for the portable power station exceeds 25V.

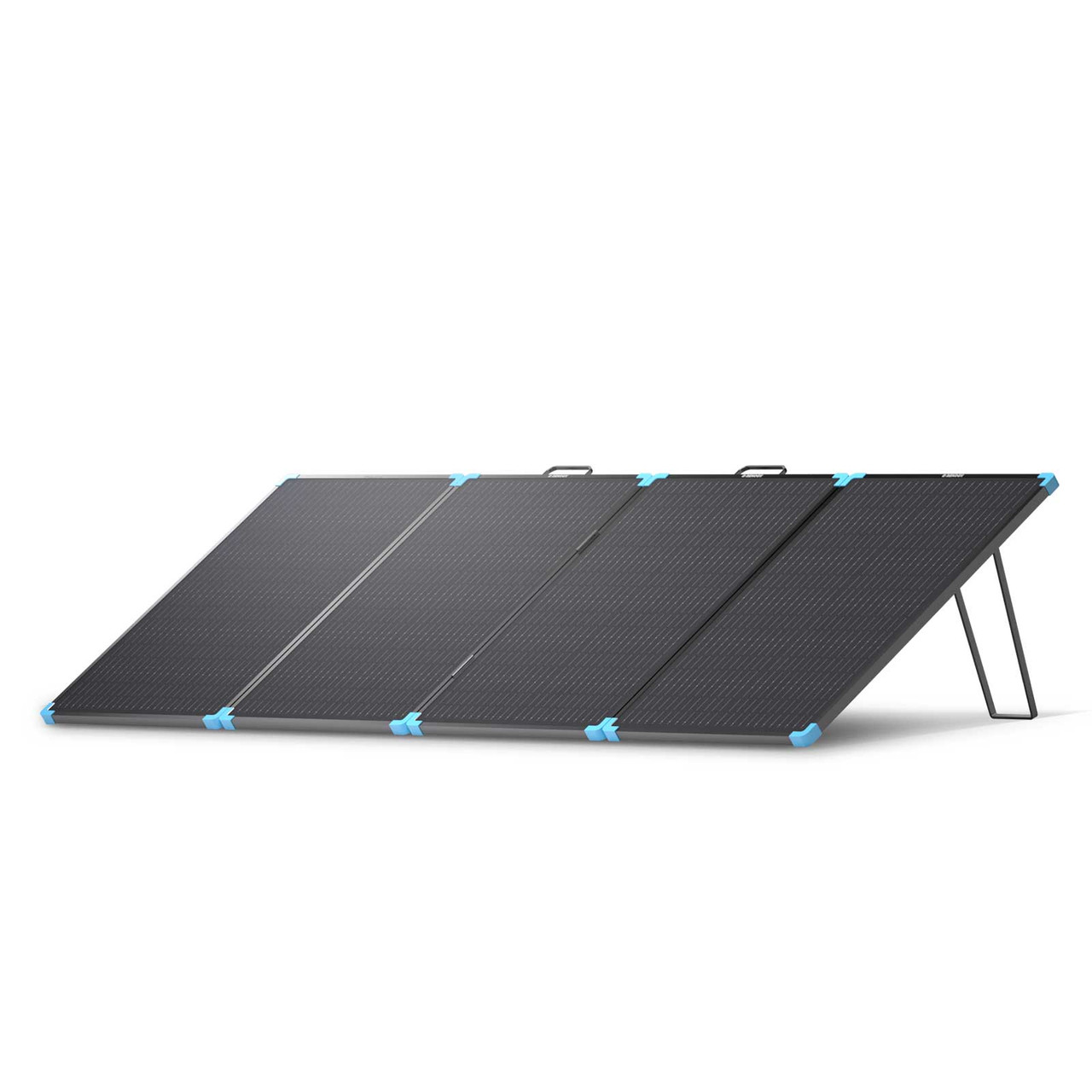

Robust Structure for Consistent Panel Output

Sturdy, rust-resistant kickstands allow maximum power generation.

SUV & Pickup Truck RV

The Dynamic Power Boost for Existing Solar Systems

Please ensure that the PV input voltage remains lower than the controller solar input voltage.

Motorhomes

Ultimate Reliability with Impeccable Efficiency

Maximizing module potential with 22.7% cell efficiency while harnessing compact solar cell layouts for enhanced module efficiency.

Unyielding Strength for Extended Outdoor Reliability

Built to last with premium materials for years of reliable performance.

Protective Case Easily portable for transportation, offering impact protection.

Fiberglass Reinforcement Delivers exceptional durability even in the face of light hailstorms.

Corner Protection Ensures longevity and resilience against wear and tear.

ETFE Coating Provides enhanced durability and weather resistance.

Uninterrupted Brilliance in Partial Shading

Parallel wiring ensures individual shadows won’t diminish the overall efficiency of the interconnected panels.

Why Choose Renogy

Redefining excellence in solar solutions.

Additional information

220W Lightweight Portable Solar Suitcase - Specifications	Max Power at STC: 220W Open Circuit Voltage: 23.6V Short Circuit Current: 12.1A Optimum Operating Voltage: 20.0V Optimum Operating Current: 11A Maximum System Voltage: 600VDC Maximum Series Fuse Rating: 15A Cell Efficiency: 22.70% Module Efficiency: 17.3% Operating Temperature: -40°F~185°F / -40℃~85℃ Dimensions (with handle): 1843x730x20 mm (72.56×28.74×0.79 in) Dimensions (without handle): 1843x690x20 mm (72.56×27.17×0.79 in) Dimensions (folded): 46069080mm (18.1127.173.15in Weight: 7.20kg/15.87lb Warranty Material and workmanship warranty: 5 Years Performance Warranty: 10-year 80% output warranty Certifications CE, Manufactured in a Certified ISO 9001 Facility, Rohs&CA65: Yes

220W Lightweight Portable Solar Suitcase - Specifications

Max Power at STC: 220W

Open Circuit Voltage: 23.6V

Short Circuit Current: 12.1A

Optimum Operating Voltage: 20.0V

Optimum Operating Current: 11A

Maximum System Voltage: 600VDC

Maximum Series Fuse Rating: 15A

Cell Efficiency: 22.70%

Module Efficiency: 17.3%

Operating Temperature: -40°F~185°F / -40℃~85℃

Dimensions (with handle): 1843x730x20 mm (72.56×28.74×0.79 in)

Dimensions (without handle): 1843x690x20 mm (72.56×27.17×0.79 in)

Dimensions (folded): 460*690*80mm (18.11*27.17*3.15in

Weight: 7.20kg/15.87lb

Warranty
Material and workmanship warranty: 5 Years

Performance Warranty: 10-year 80% output warranty

Certifications
CE, Manufactured in a Certified ISO 9001 Facility, Rohs&CA65: Yes
