Description

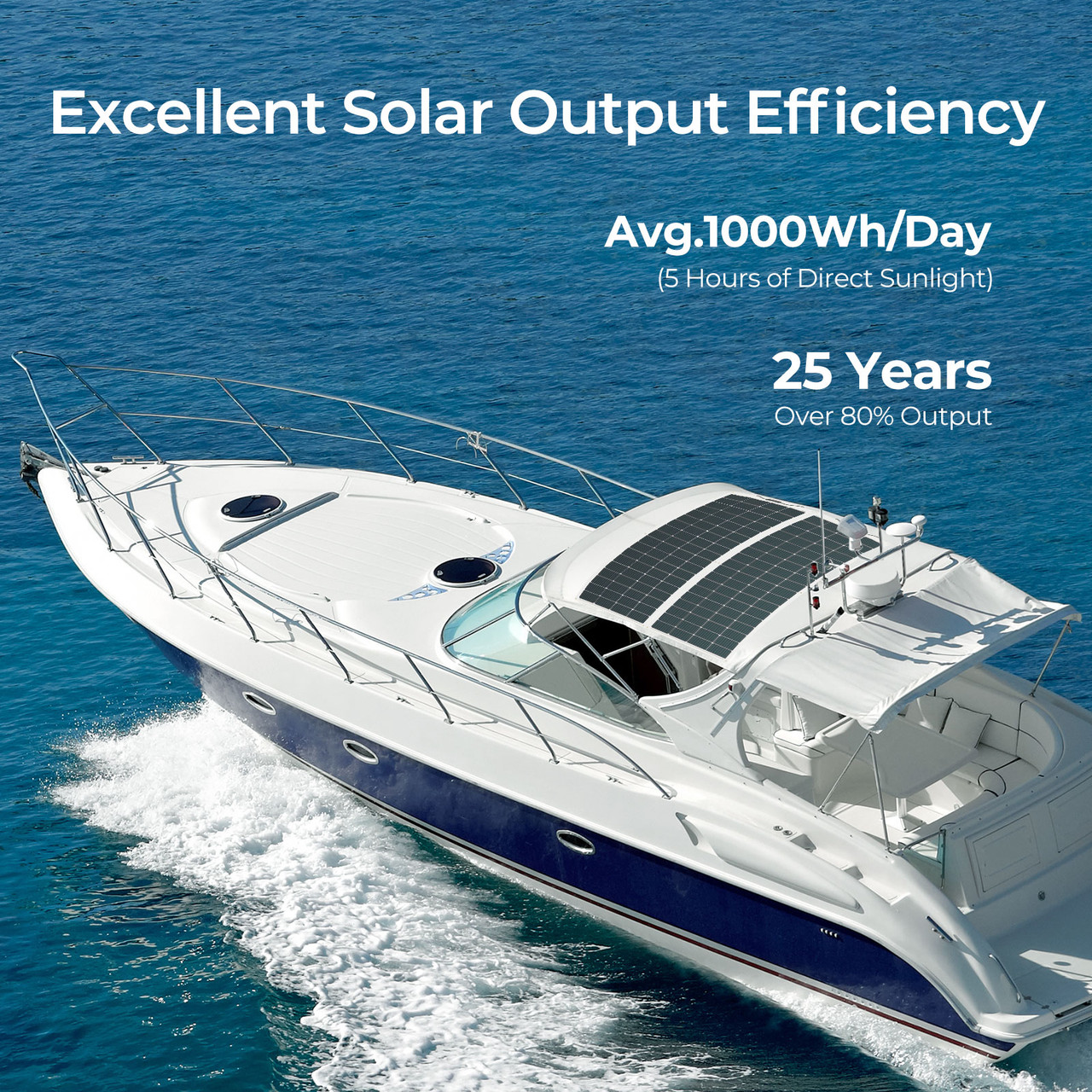

Empowering Your Off-Grid Life

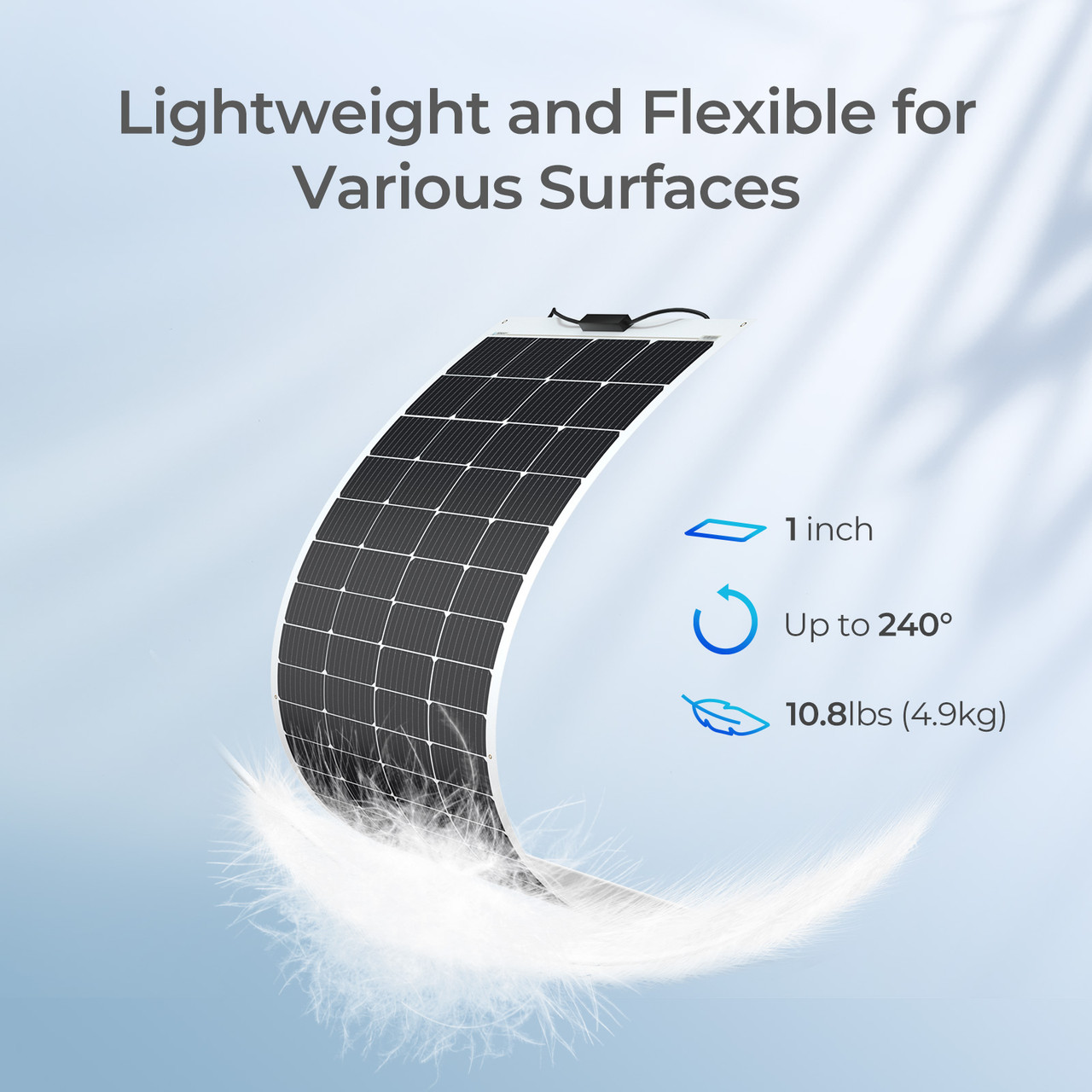

Flexible for Different Surfaces

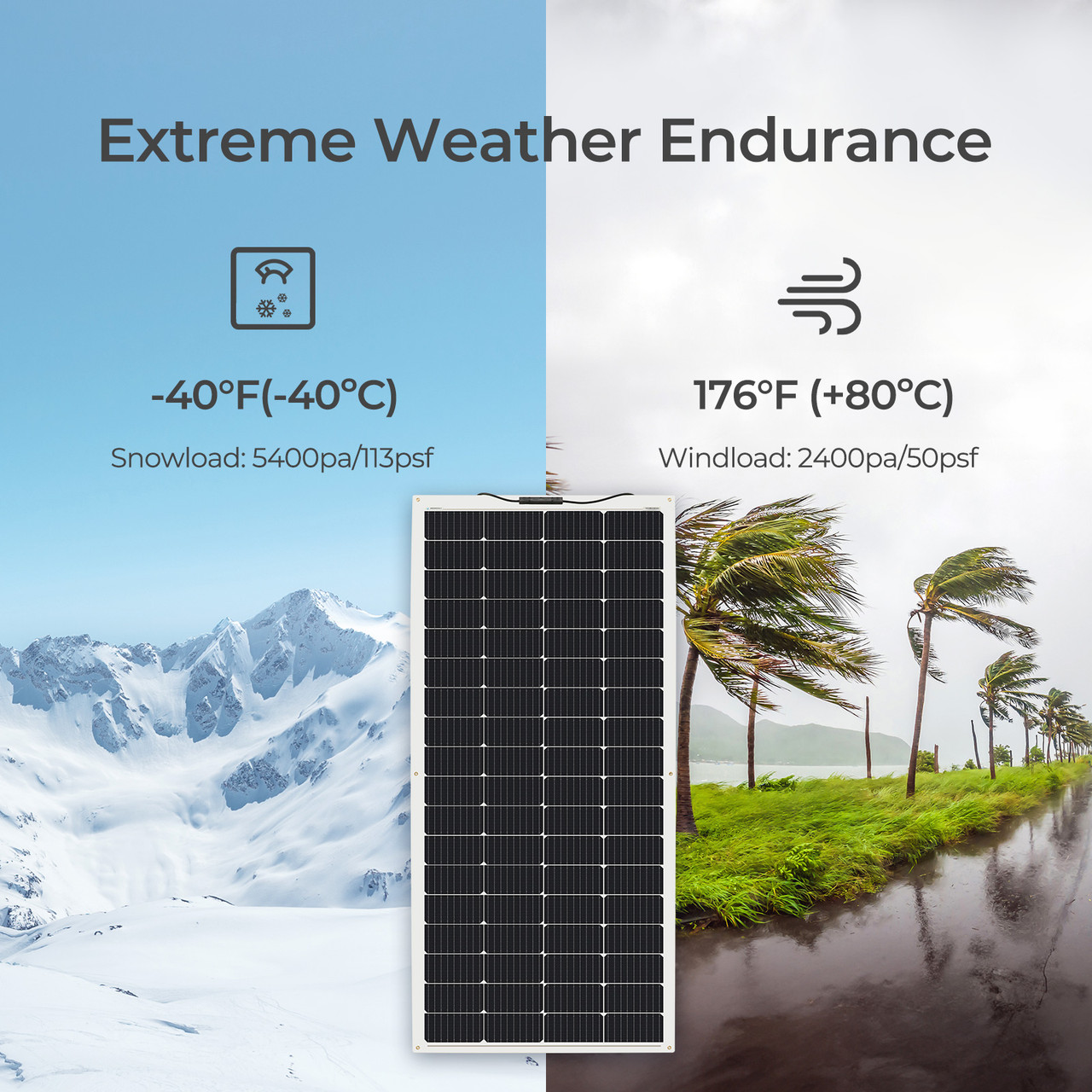

Built to Endure Harsh Weather

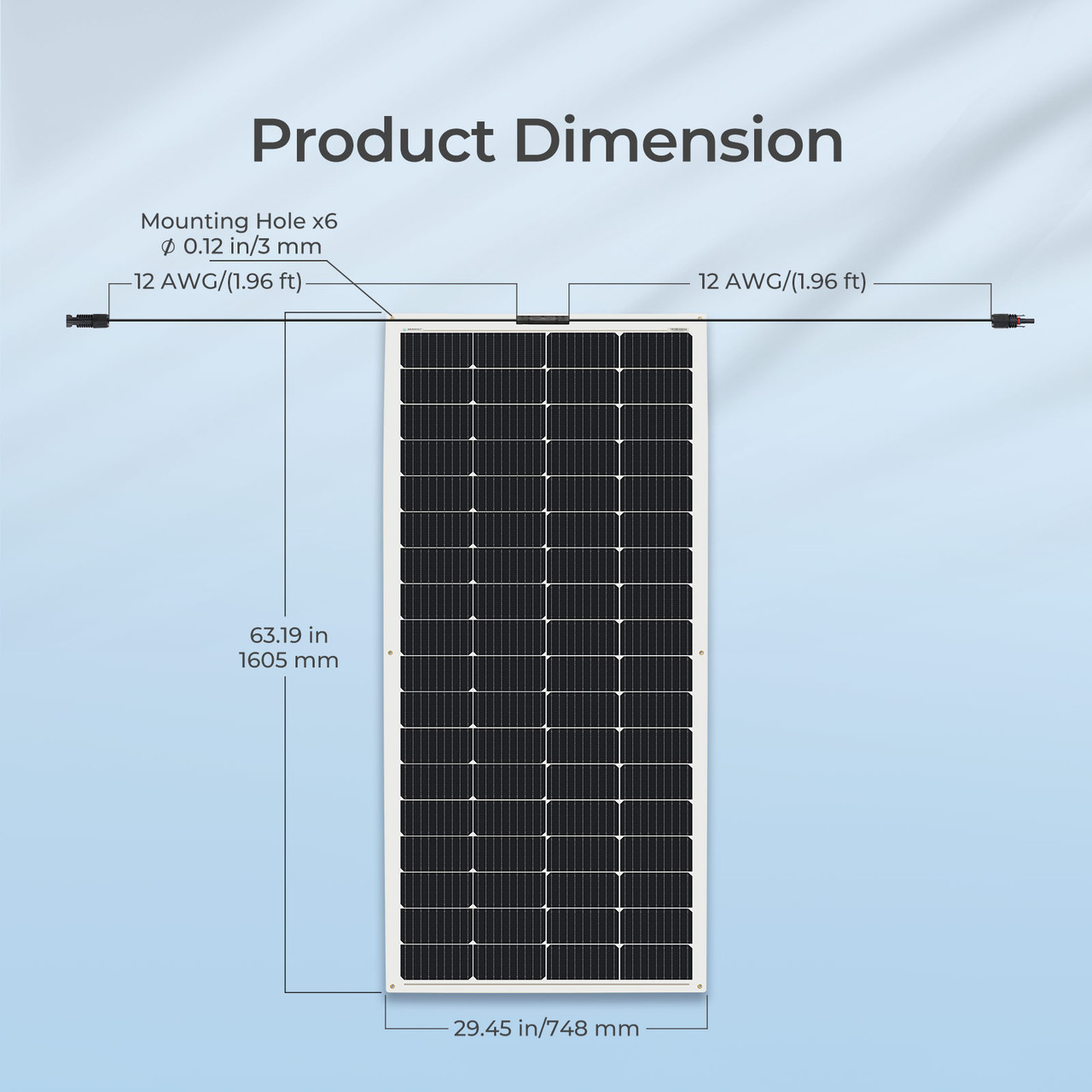

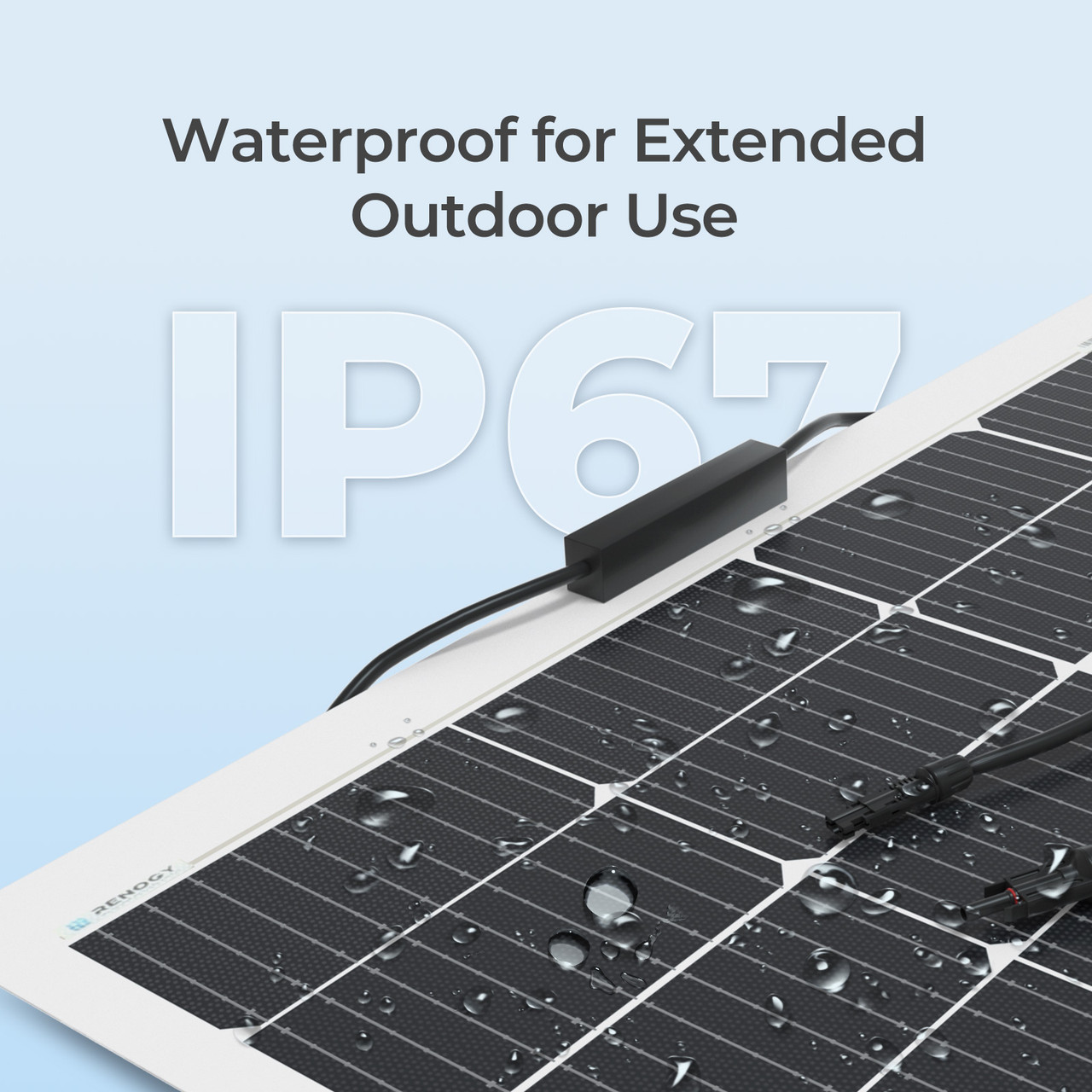

BUILT-IN COMPONENTS | Output Cables: 12 AWG (2.3 ft) Cell Type: Monocrystalline(6.5×3.3) Number of Cells: 72(18×4) Junction Box: IP68 Solar Connectors: IP67 opc: SPECIFICATIONS Module Efficiency: 16.7% Optimum Operating Voltage (Vmp): 20.1V Open-Circuit Voltage (Voc): 23.9V Optimum Operating Current (Imp): 10.02A Short Circuit Current: 10.74A Operating Temperature: -40°F to 176°F (-40ºC to +80ºC) Maximum Series Fuse Rating: 15A Maximum System Voltage: 600V DC Certifications: CE,ISO9001 Weight: 4.9 kg / 10.8 lbs Dimensions: 160.5 x 74.8 x 0.3 cm /(63.2 x 29.4 x 0.1 in) Material and workmanship warranty: 5 years Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty parameterEnd: TRUE Voltage: 12V Watt: 200W |
---|
