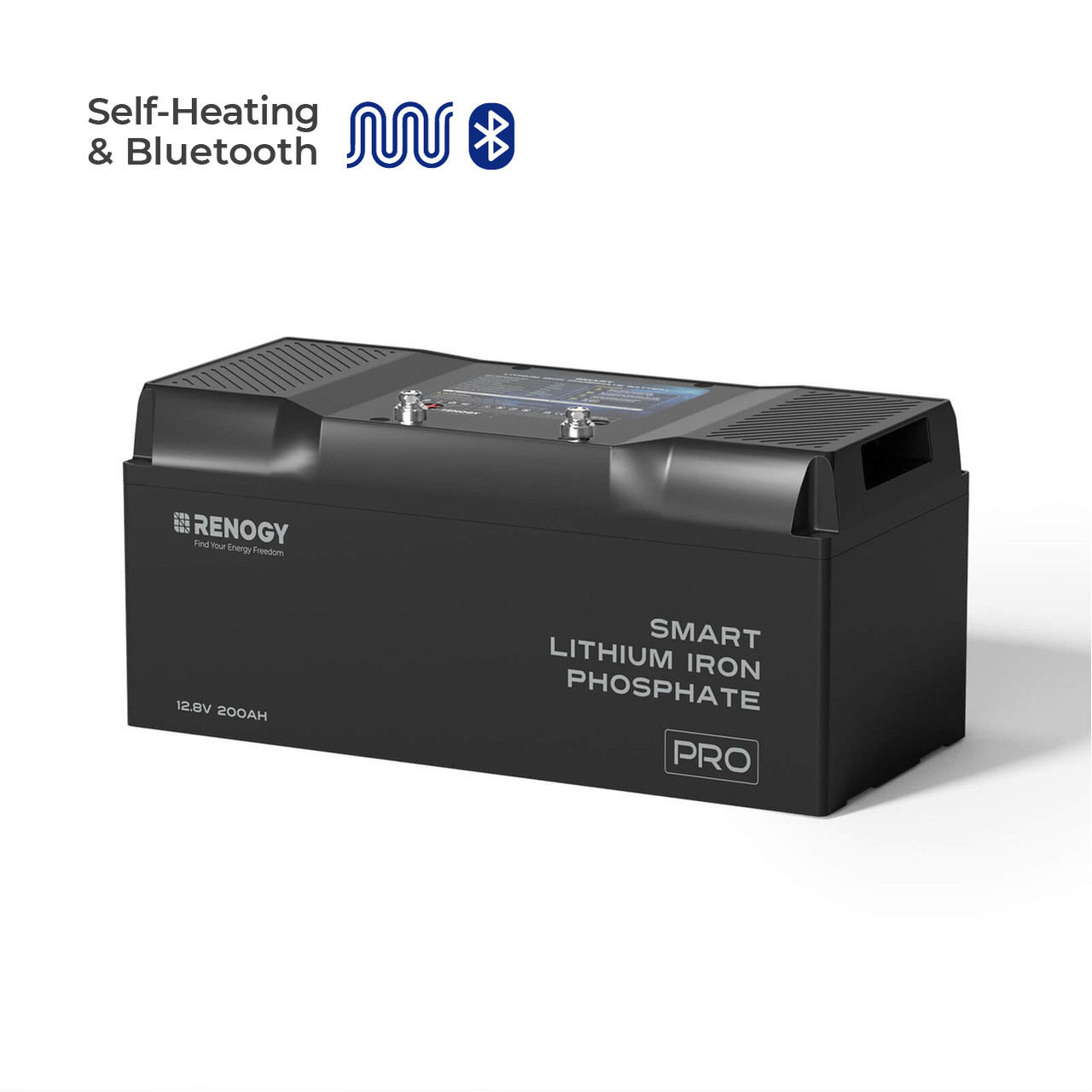

Renogy 12V 200Ah Pro Deep Cycle Lithium Iron Phosphate Battery
Rated Capacity (0.5C, 25°C): 200Ah
Nominal Voltage: 12.8V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Voltage Range: 10V to 14.8V
Maximum Continuous Charge Current: 200A
Discharging Parameters
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 270A@30s
Temperature Parameters
Charge Temperature: -4°F to 131°F (-20°C to 55°C)
Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -13°F to 149°F / -25°C to 65°C
Operation Relative Humidity: 10% to 95%
Mechanical Specifications
Dimension (L x W x H): 18.4 x 8.4 x 8.2 in / 467 x 212 x 208 mm
Weight: 50.7 lb / 23 kg
Terminal Bolt Size: M8 x 1.25 x 12 mm
Long Terminal Bolt Size: M8 x 1.25 x 16 mm
Protection Rating: IP67
opc:
Warranty
Warranty: 7-year material warranty
opc:
Certifications
Certifications: UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
