Description

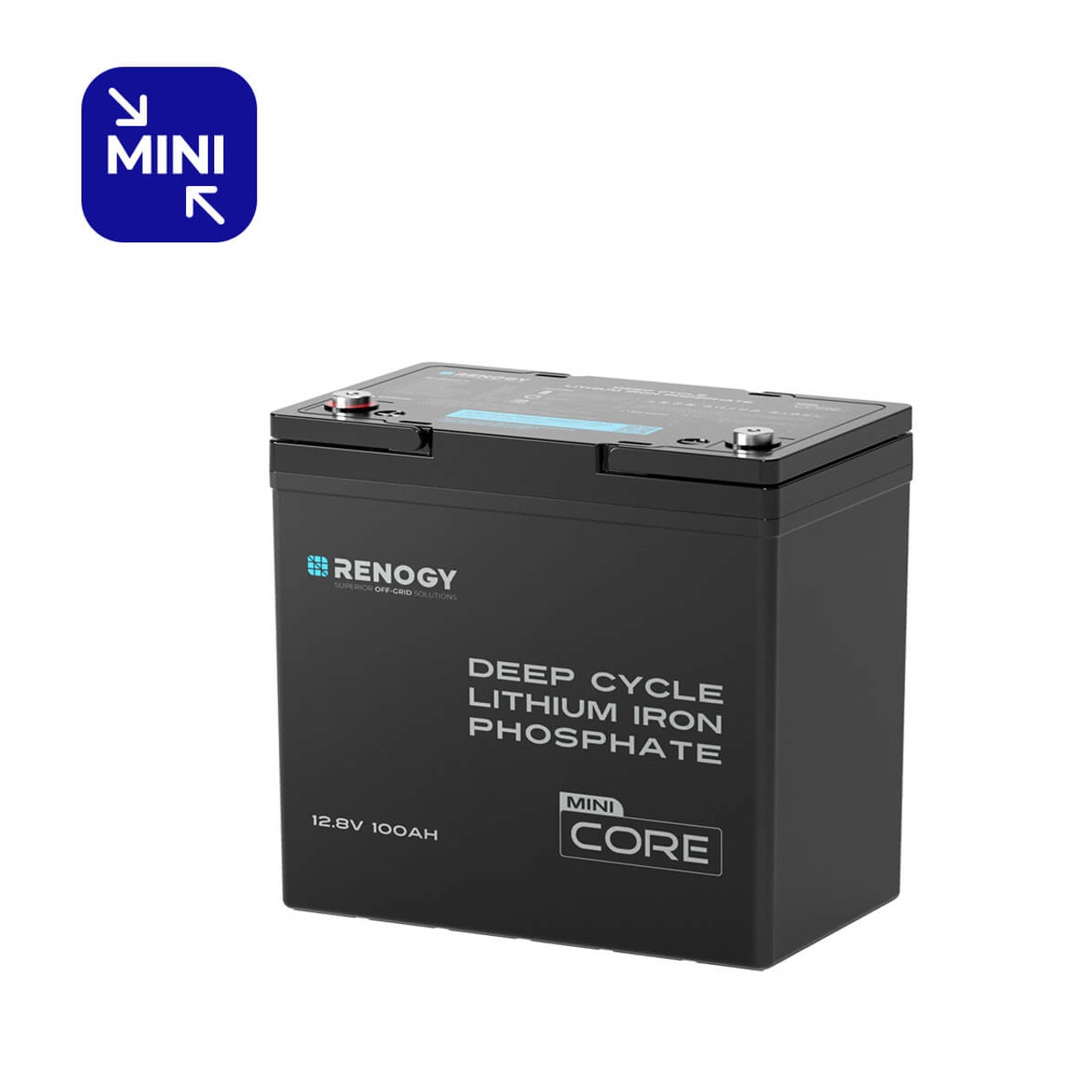

Introducing the Core Mini: Renogy’s most compact 12.8V 100Ah LiFePO4 battery, delivering maximum power in half the space.

Revolutionary in size yet uncompromising in performance, the Core Mini packs full-sized power into a package half the size of a traditional Group 31 battery. Perfect for space-conscious installations in teardrop trailers, kayaks, and other compact spaces, this powerhouse opens new possibilities for outdoor adventures.

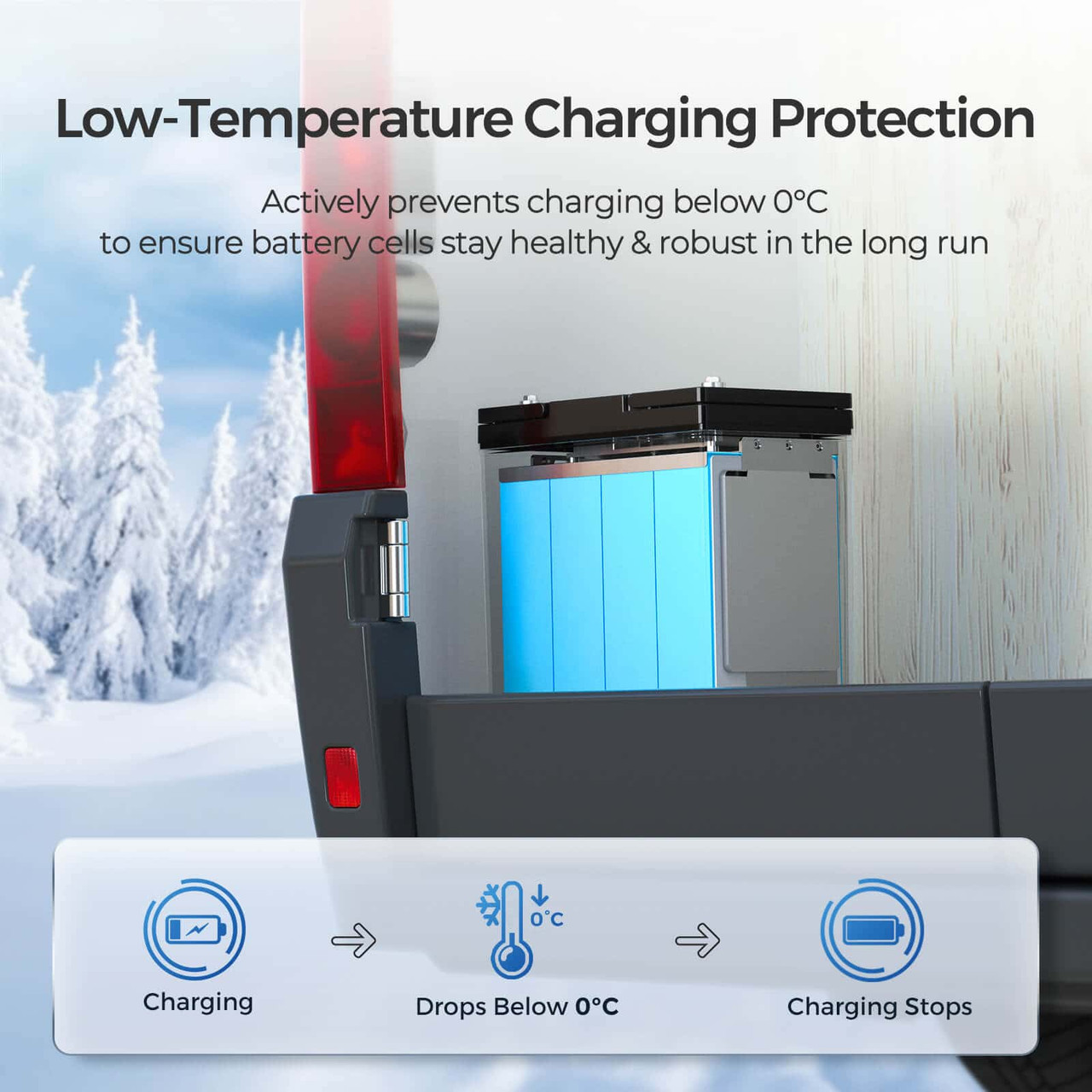

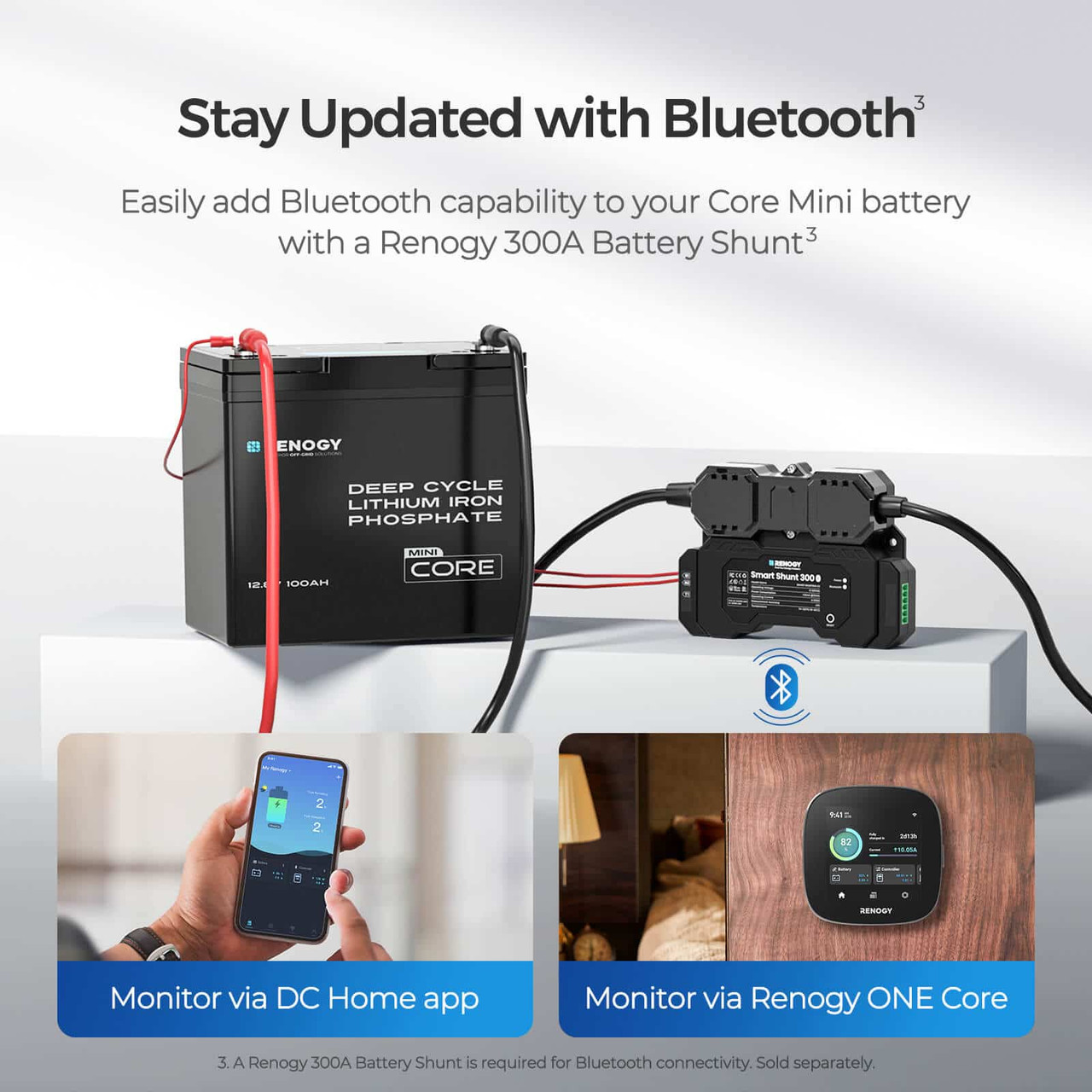

Built for the demands of outdoor life, the Core Mini features: Advanced low-temperature charging protection for safe winter operation IP65-rated weatherproof construction Vibration-resistant design for rough terrain Seamless integration with the DC Home app or Renogy ONE when paired with a Renogy 300A Battery Shunt (sold separately)

Same power output in a lighter, more compact design

Next-gen design with premium safety and full power

Prismatice Cells

10X More Battery Life

Premium EV-grade cells deliver 5000 cycles at 80% discharge – outperforming traditional lead-acid batteries in both lifespan and reliability

Peak Output Current

300A Peak Surge Power

Delivers powerful 5-second surge current for high-demand appliance start-up

Rugged Design

Vibration-Resistant Design

Metal cell spacers prevent damage in rough terrain and choppy waters

Certified Safety

Safety Certified Design

UL, FCC, and CE certified for reliable performance in any application

Teardrop Trailers

Compact Power for Endless Adventure

The perfect power solution for teardrop trailers and compact RVs

Kayak Fishing

Built for Better Fishing

Reliable energy for trolling motors, fish finders, and all your essential fishing gear

Home Backup Power

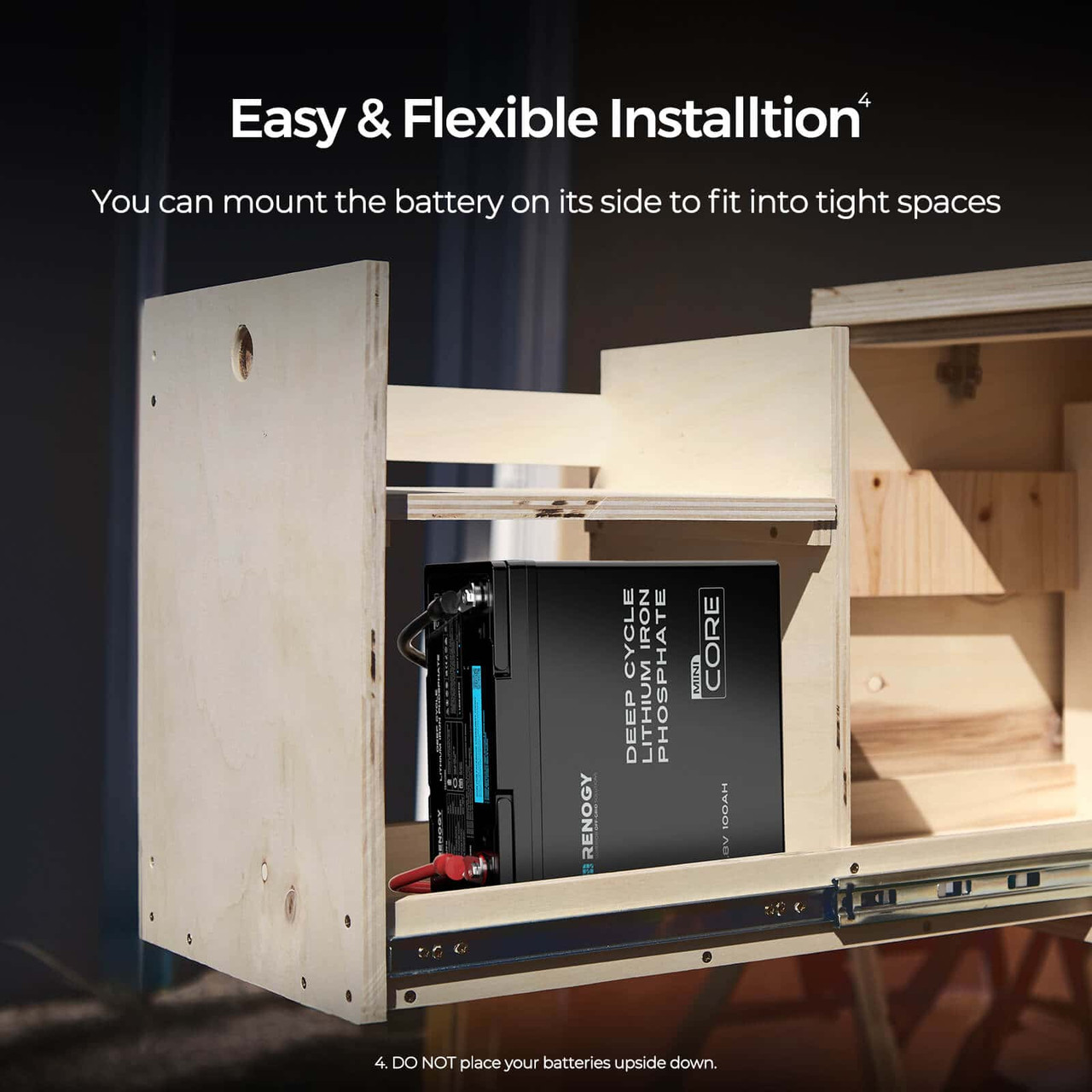

Space Requirements

Allow 2-4″ above battery, 8″ clearance for busbar side

Before installing the battery, please note that you need to leave 50-100 mm (1.97-3.94 in) for the top of the battery; the side with busbars needs to be left at least 200 mm (7.87 in).

Additional information

Specifications	Battery Type: Lithium Iron Phosphate Nominal Voltage: 12.8V Rated Capacity: 100Ah (0.5C, 25℃) Voltage Range: 10V to 14.8V Dimensions: 229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in Weight: 21.8 lbs / 9.9 kg Connection Method: Series & Parallel (4S4P) Maximum Charge Current: 100A Maximum Discharge Current: 100A Protection Rating: IP65 Charge Temperature Range: 32°F to 122°F (0°C to 50°C) Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) Storage Temperature Range: -13°F to 149°F (-25°C to 65°C) Terminal Bolt Size: M8 x 1.25 x 12 mm Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m Peak Discharge Current: 300A@5s Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) opc: Accessories Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm opc: Warranty Material and Workmanship Warranty: 5 Years Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA

Specifications

Battery Type: Lithium Iron Phosphate

Nominal Voltage: 12.8V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 10V to 14.8V

Dimensions: 229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in

Weight: 21.8 lbs / 9.9 kg

Connection Method: Series & Parallel (4S4P)

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Protection Rating: IP65

Charge Temperature Range: 32°F to 122°F (0°C to 50°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Terminal Bolt Size: M8 x 1.25 x 12 mm

Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

Peak Discharge Current: 300A@5s

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

opc:

Accessories
Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm

opc:

Warranty
Material and Workmanship Warranty: 5 Years

Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
